Removing Rear Backrest Cover (1/3-Split Folding Rear Seat)

WARNING: This page is about a different variant/trim than selected.
  1. Cut cushion rings -1-  and remove rear backrest cover (1/3-split folding rear seat) -2-  .

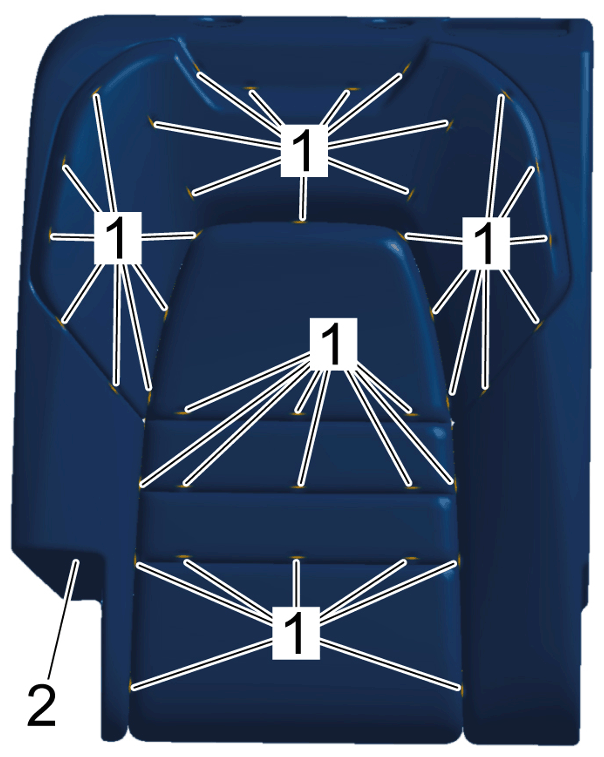

    G15280220Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear backrest cover (1/3-split folding rear seat)
