Removing Padding For Rear Backrest (2/3-Split Folding Rear Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

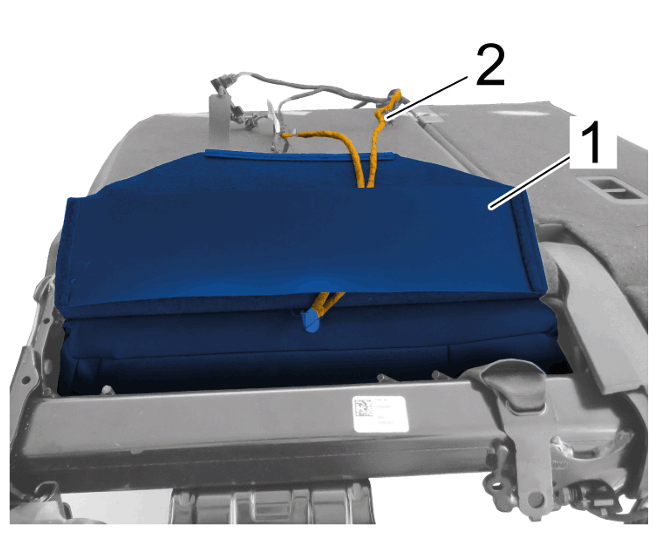

Seat cover on rear backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

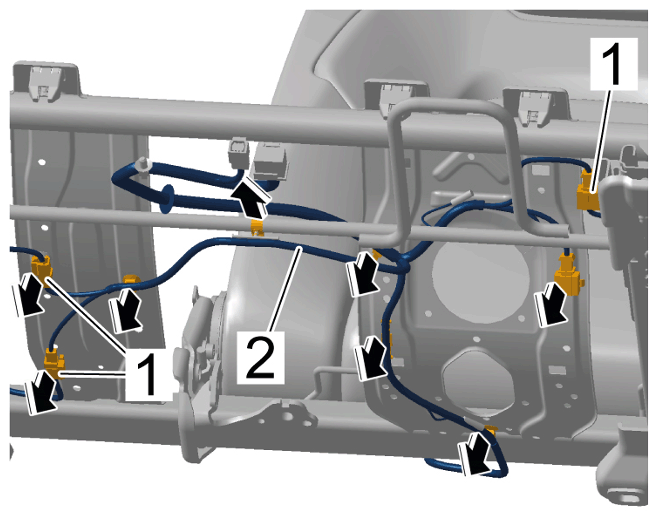

Electric wire harness

1. 2.1  Release and unplug electric plug connections -1-  .

   Information

   Mark installation positions!

2. 2.2  Unclip electric wire harness -2-  on the seat frame at the bottom and remove it -Arrows-  .
   WARNING: Incorrect handling of safety bolts

   • Danger of injury
   • Loss of torque
     1. → Always use new screws or nuts following removal.
     2. → Comply with instructions for repairs.
     3. → Observe specified tightening torques.
     4. → Carry out a visual inspection of parts used.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

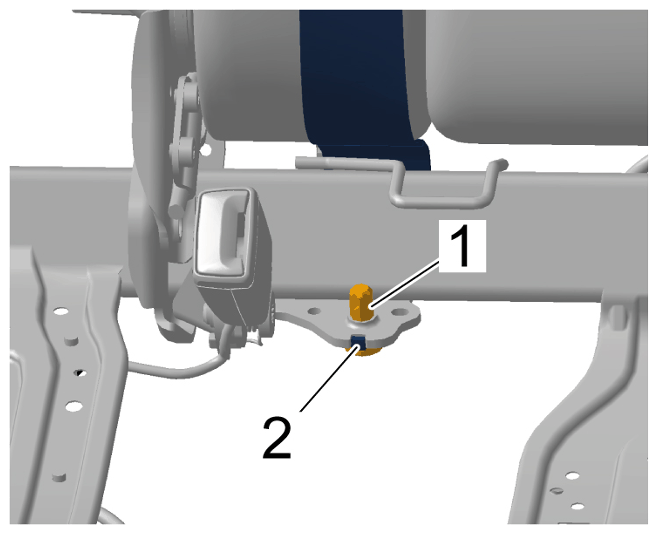

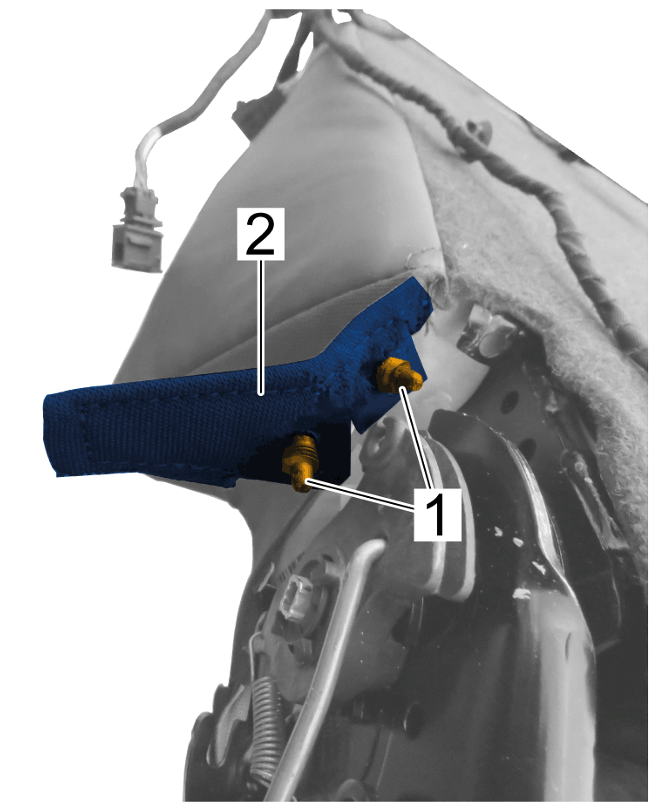

Seat belt mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

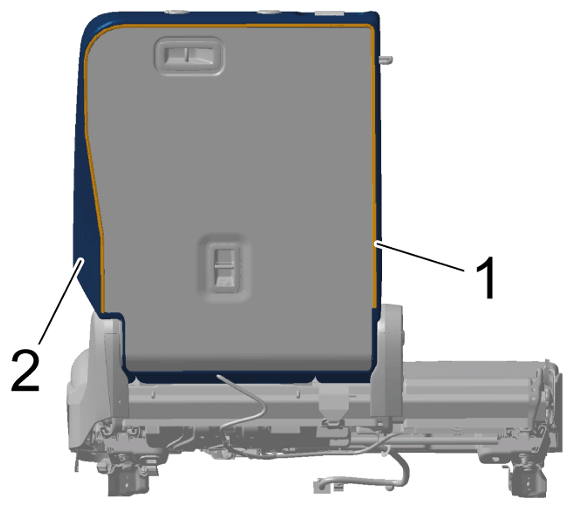

Seat cover for rear backrest on seat backrest

1. 4.1  Detach seat cover on rear backrest -1-  from the groove in the seat backrest.
2. 4.2  Feed electric wire harness -2-  through the seat cover on the rear backrest -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

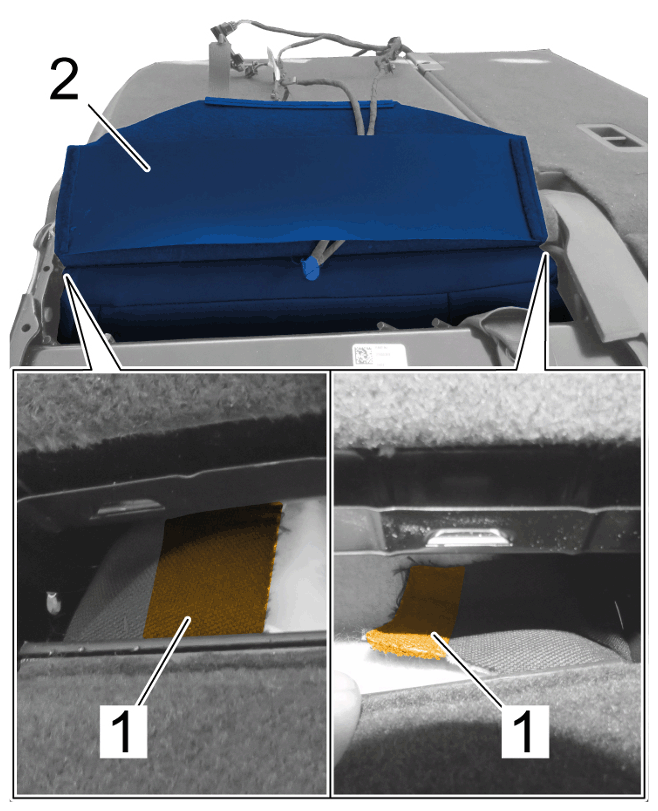

Velcro fasteners

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer tab

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner tab

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

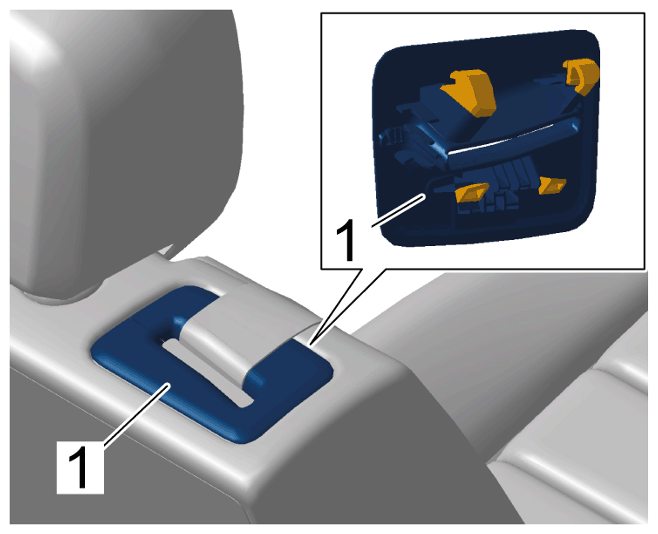

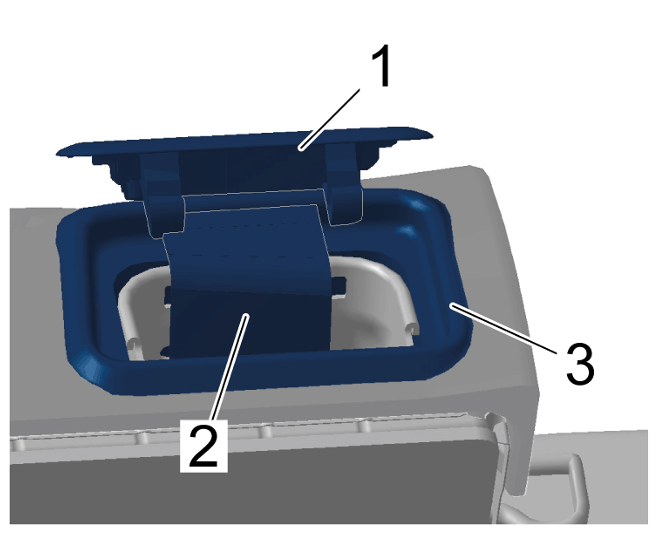

Belt feed-through element

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

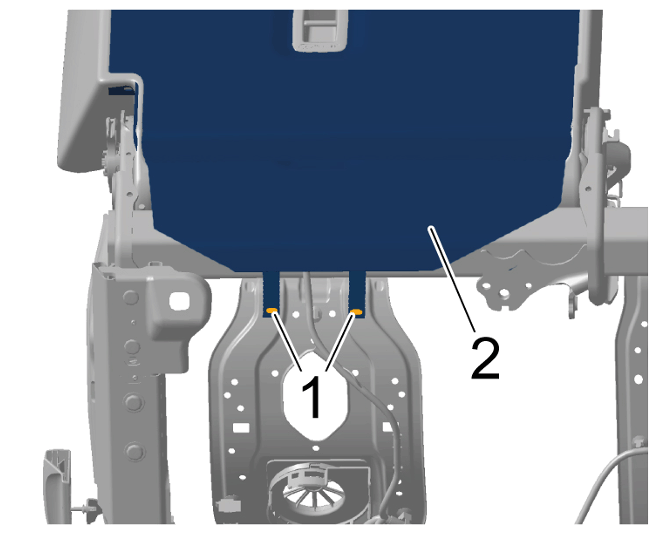

Seat cover on rear backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

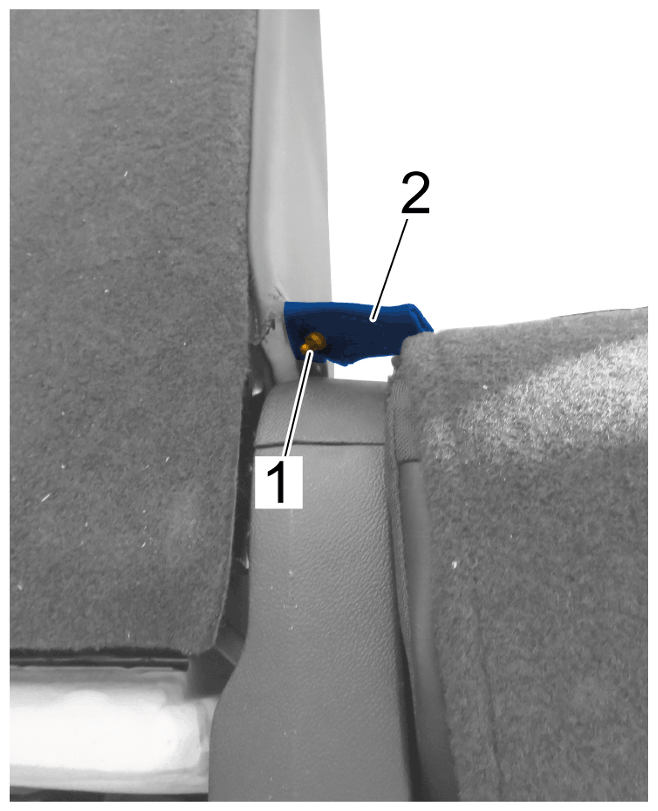

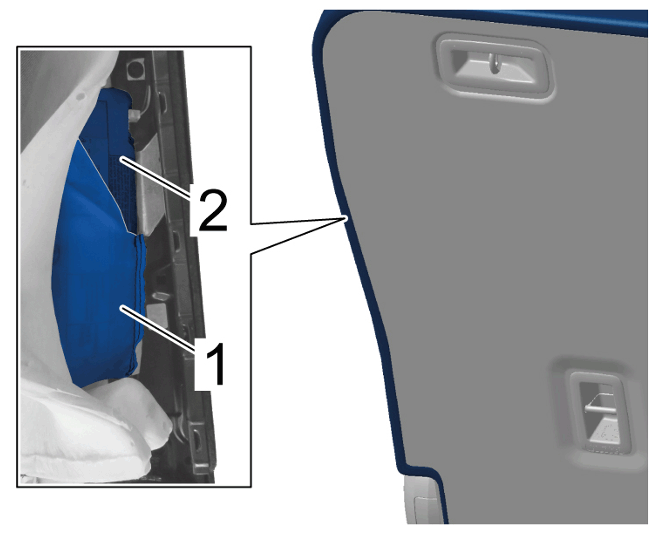

Side airbag catcher

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

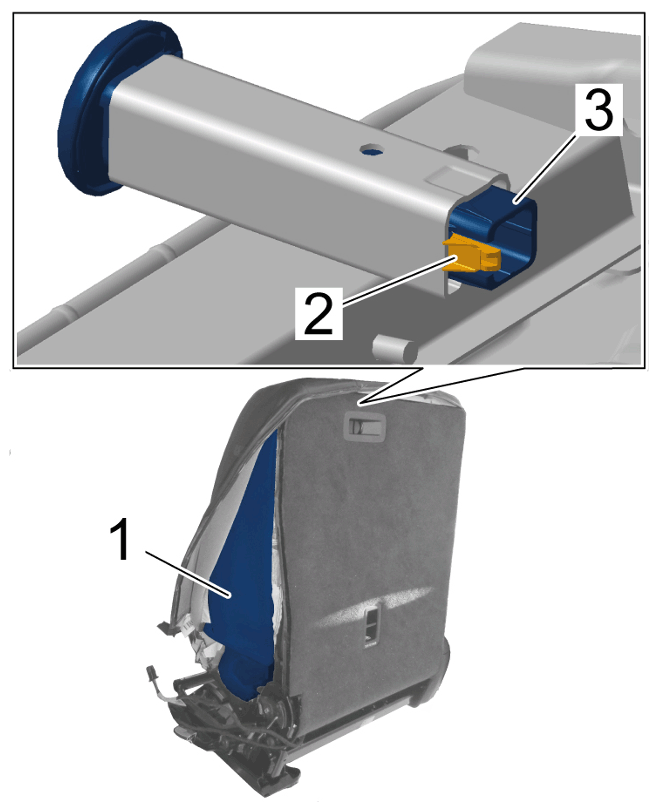

Headrest guide, left

1. 12.1  Press padding for rear backrest (2/3-split folding rear seat) -1-  away from the backrest frame.
2. 12.2  Release locking lug -2-  and press left headrest guide -3-  out of the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

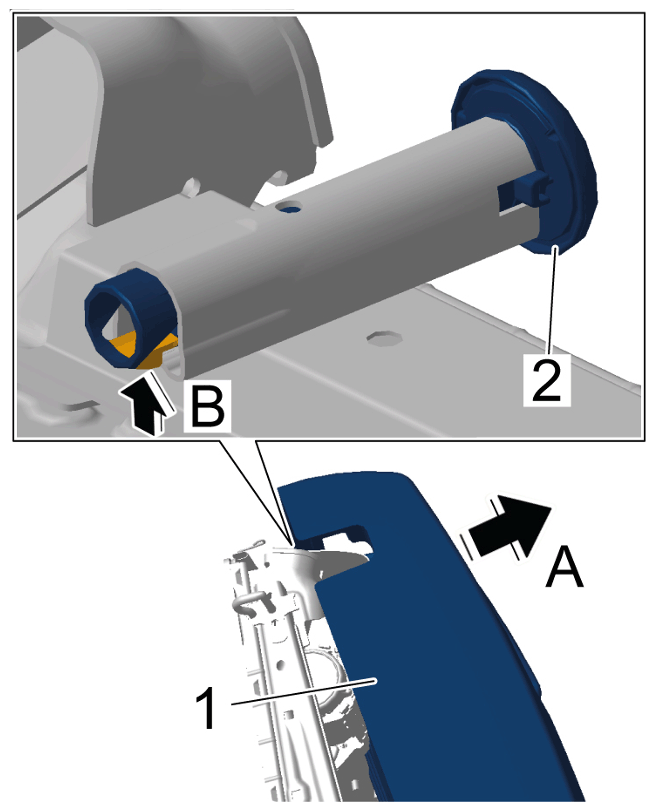

Headrest guide, right

1. 13.1  Press padding for rear backrest (2/3-split folding rear seat) -1-  away from the backrest frame -arrow A-  .
2. 13.2  Release headrest guide at the right -2-arrow B-  and press it out of the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear three-point belt for middle seat
