Removing Suction Fan For Rear Backrest
WARNING: This page is about a different variant/trim than selected.

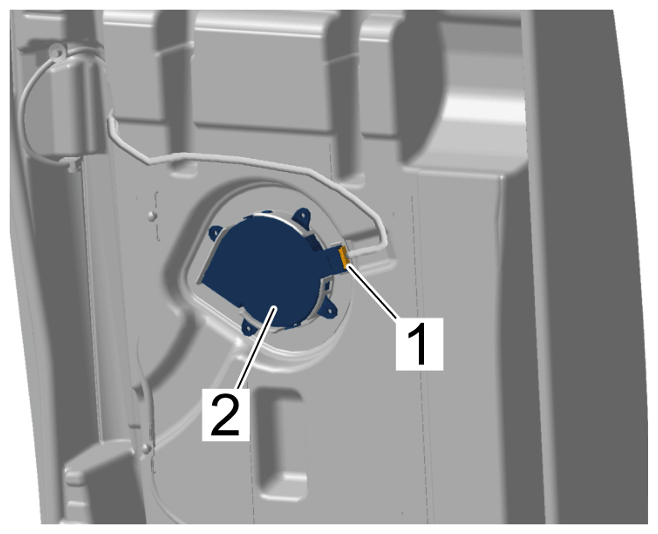

- Release electric plug connection -1-
and disconnect it from suction fan for rear backrest -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection

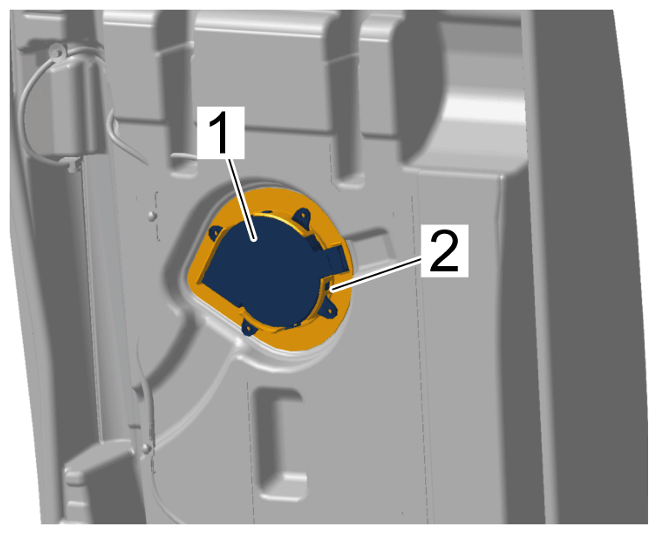

- Disengage suction fan for rear backiest -1-
from the bracket. -2-
and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Suction fan for rear backrest
