Removing Rear Seat Cover (1/3-Split Folding Rear Seat)

WARNING: This page is about a different variant/trim than selected.

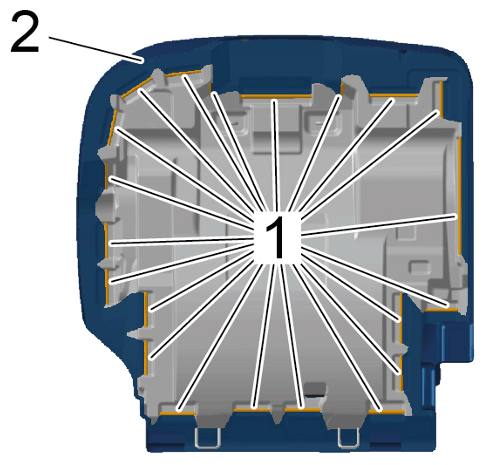

  1. Disengage holder -1-  on padding for rear seat surface (1/3-split folding rear seat) and fold rear seat cover (1/3-split folding rear seat) -2-  up and over.
    G15280173Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear seat cover (1/3-split folding rear seat)

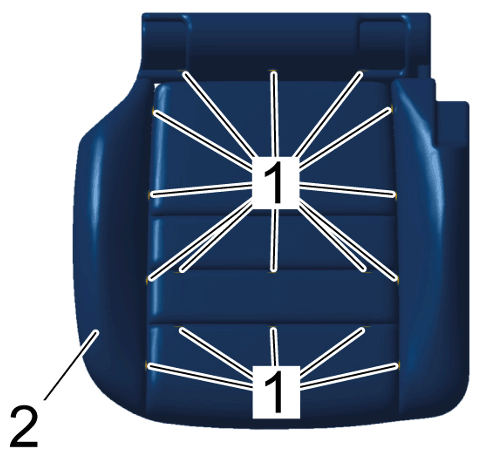

  2. Cut cushion rings -1-  and remove rear seat cover (1/3-split folding rear seat) -2-  .
    G15280174Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cushion rings
