Removing Padding For Rear Seat Surface (1/3-Split Folding Rear Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

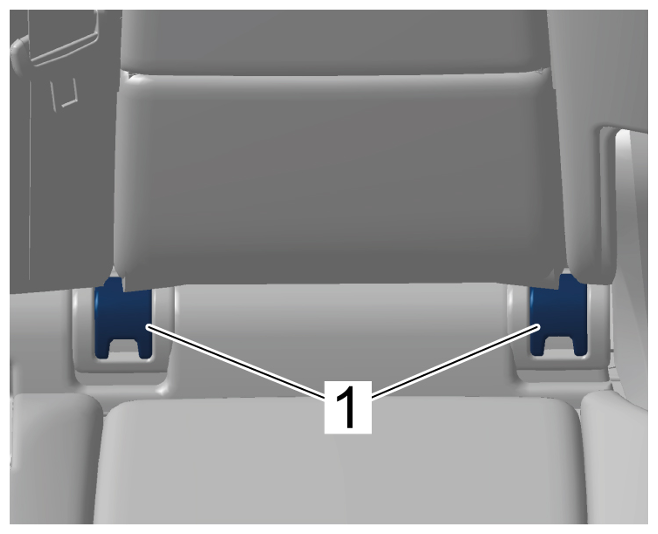

ISOFIX covers

Information

Do this at both ISOFIX brackets.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

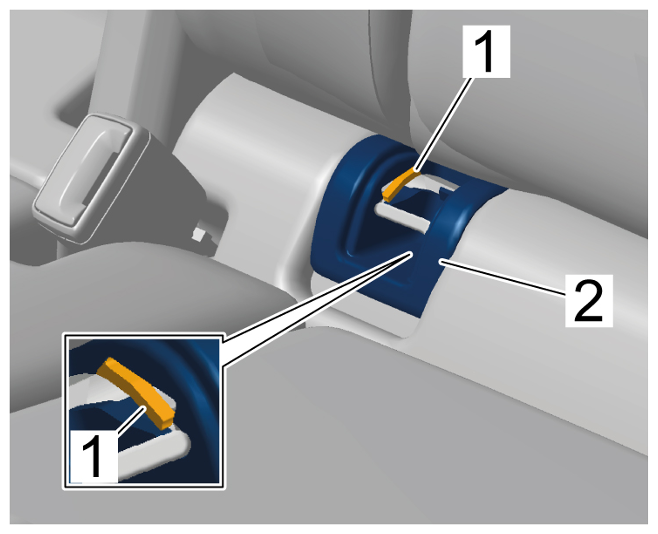

ISOFIX bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening grommets version 1

Information

Pull the padding for the rear seat surface (1/3-split folding rear seat) up slightly and keep pulling it in order to release the fastening grommets.

Information

Repeat the procedure on both fastening grommets.

1. 3.1  Loosen padding for rear seat surface (1/3-split folding rear seat).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

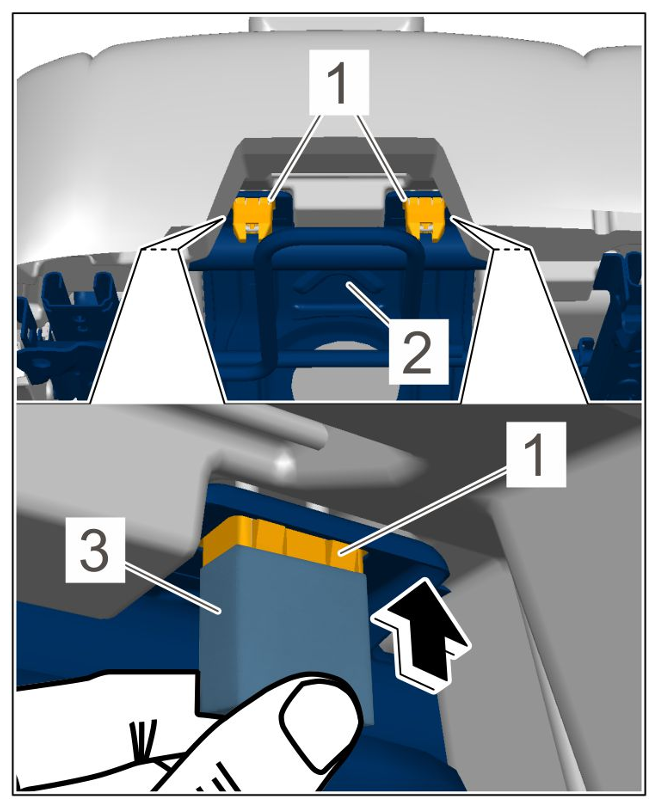

   Fastening grommet version 1

   1. 3.1.1  Push special tool > 9943 - disassembly tool-3-  onto fastening grommet version 1 -arrow-
   2. 3.1.2  Unclip fastening grommet version 1 -1-  from the seat frame.

   Information

   Fastening grommets version 1  must not be re-used and must be replaced by fastening grommets version 2.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

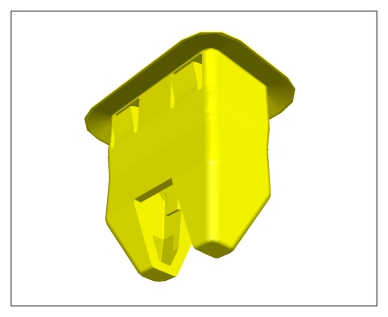

   Fastening grommets version 1

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

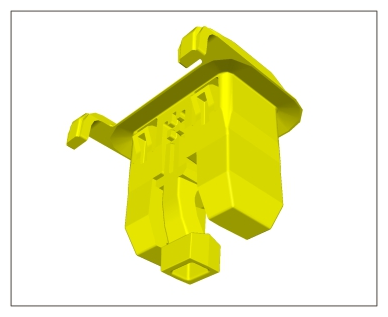

   Fastening grommet version 2

   • Fastening grommets version 1
   • Fastening grommets version 2
2. 3.2  Lift up padding for rear seat surface (1/3-split folding rear seat) -1-  with fastening grommets version 1 -2-  and fold it over to the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

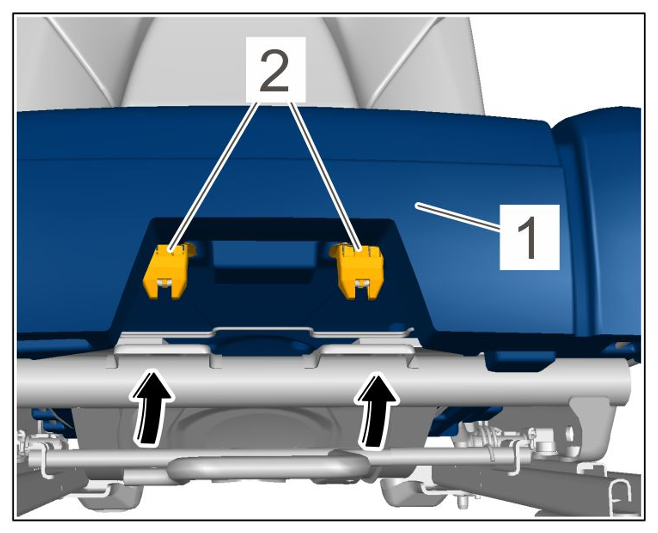

   Padding for rear seat surface (1/3-split folding rear seat)

   Information

   Fastening grommets version 1  must not be re-used and must be replaced by fastening grommets version 2.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening grommets version 1

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening grommet version 2

   • Fastening grommets version 1
   • Fastening grommets version 2

   Information

   Repeat the procedure on both fastening grommets.

3. 3.3  Remove fastening grommets version 1 on the underside of the padding for the rear seat surface (1/3-split folding rear seat).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

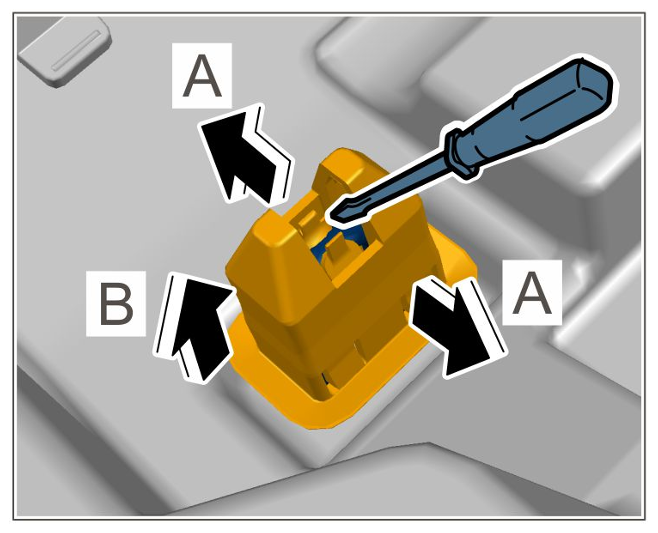

   Fastening grommet on underside of padding

   1. 3.3.1  Release locking lugs using a screwdriver. -arrow A-
   2. 3.3.2  Remove fastening grommet version 1. -arrow B-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening grommet version 2

Information

Pull the padding for the rear seat surface (1/3-split folding rear seat) up slightly and keep pulling it in order to release the fastening grommets.

Information

Repeat the procedure on both fastening grommets.

1. 4.1  Loosen padding for rear seat surface (1/3-split folding rear seat).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

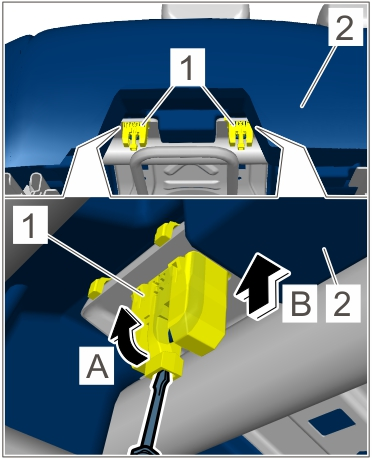

   Fastening grommet version 2

   1. 4.1.1  Release fastening "om mets version 2 -1-  using a screwdriver. -arrow A-
   2. 4.1.2  Pull padding for rear seat surface (1/3-split folding rear seat) -2-  up and out. -arrow B-

Disconnect electric wire harness for seat heating -3-  at the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

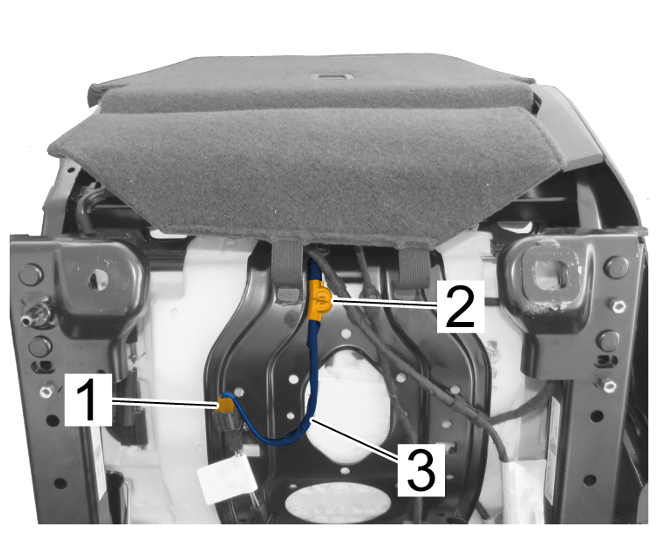

Electric wire harness for seat heating

1. 5.1  Release and unplug electric plug connection -1-  .
2. 5.2  Remove clip -2-  .
3. 5.3  Feed electric wire harness for seat heating -3-  forward.
