Installing Padding For Rear Seat Surface (1/3 -Split Folding Rear Seat)

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order Pay particular attention to the following:
Information

Fastening grommets version 1 must not be re-used and must be replaced by fastening grommets version 2.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

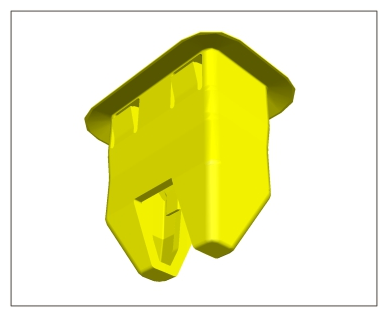

Fastening grommets version 1

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

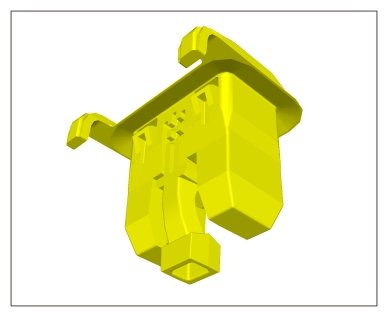

Fastening grommet version 2
- Fastening grommets version 1
- Fastening grommets version 2
Fastening grommet version 1
Fastening grommet version 2

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening grommets version 2

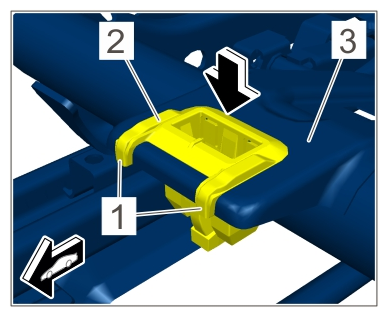

1. 3.1 Align position lugs -1- towards the front.
2. 3.2 Engage fastening grommets version 2 -2- in the seat frame -3-Arrow- .
