Removing Rear Seat Surface Suction Fan
WARNING: This page is about a different variant/trim than selected.

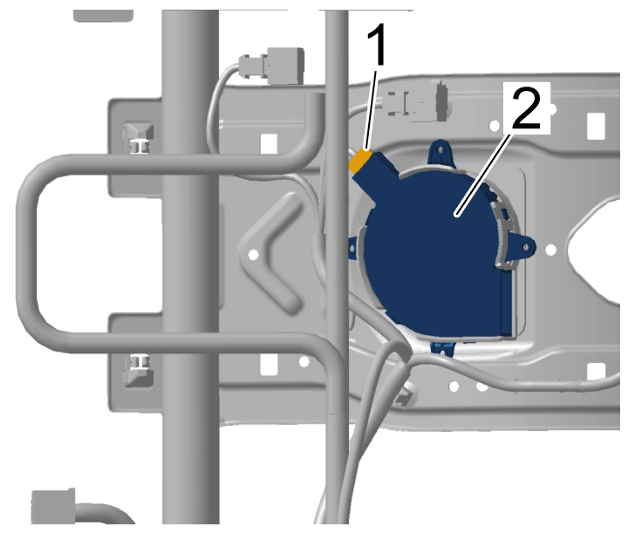

- Release and disconnect electric plug connection -1-
on suction fan for rear seat surface -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection

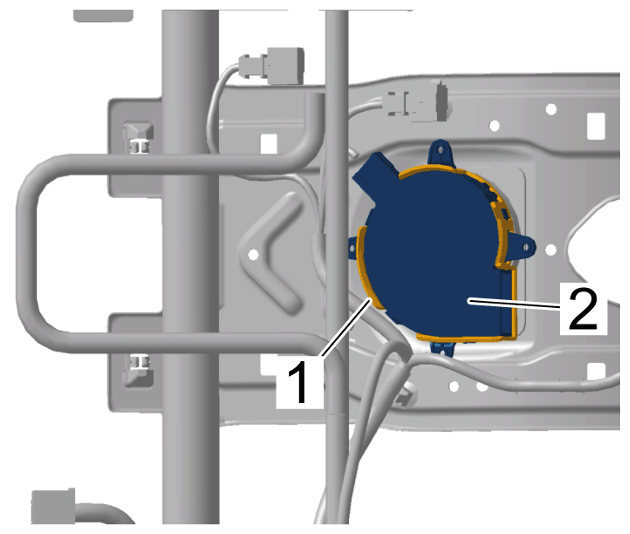

- Disengage suction fan for rear seat surface -2-
from the bracket -1-
and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear seat surface suction fan
