WM, 743155 Replacing Heating Element For Rear Seat Backrest: Information

WARNING: This page is about a different variant/trim than selected.

Information

The heating element cannot be replaced separately.

Replacing heating element for rear seat backrests

Replacing heating element for rear seat backrest

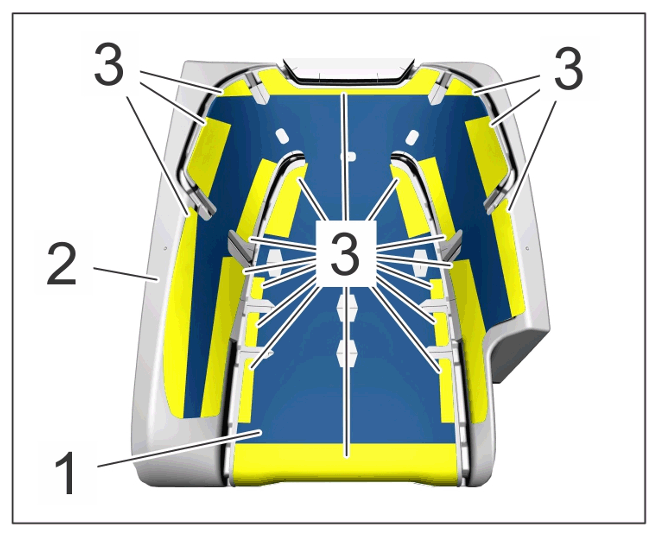

Affix heating element -1- to rear seat backrest -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element for rear seat backrest

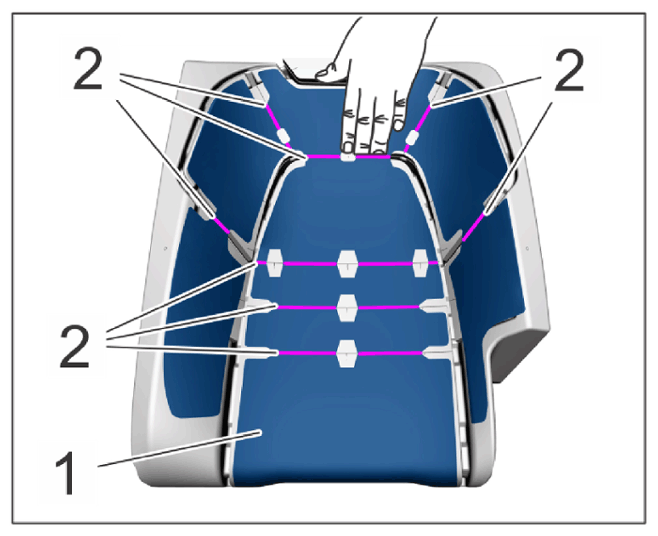

1. 1.1 Position heating element -1- on rear seat backrest -2- .
2. 1.2 Pull off protective film in area -3- and press heating element -1- on flat in area -3- .
3. 1.3 Press heating element -1- in area -2- into the grooves.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element for rear seat backrest
