Replacing Heating Element For Rear Seat Cushion

WARNING: This page is about a different variant/trim than selected.

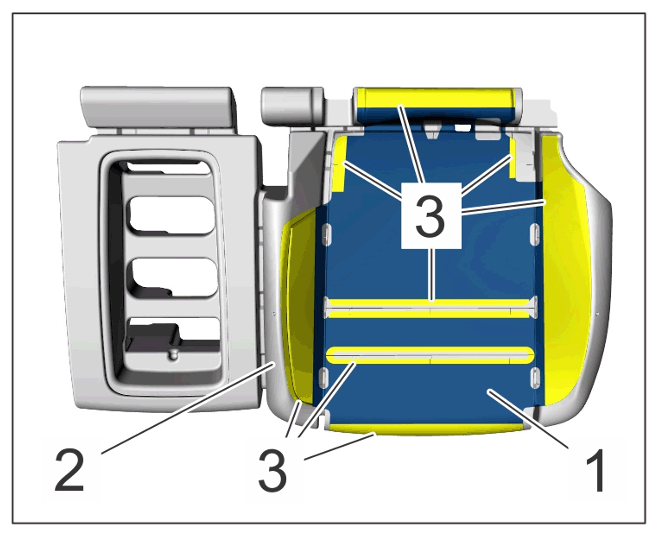

  1. Affix heating element -1-  to rear seat cushion -2-  .
    G15280116Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heating element for rear seat cushion

    1. 1.1  Position heating element -1-  on rear seat cushion -2-  .
    2. 1.2  Pull off protective film in area -3-  and press heating element -1-  on flat in area -3-  .
    3. 1.3  Press heating element -1-  into the grooves in area -2-  .
    G15280117Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heating element for rear seat cushion
