Information

The heating element cannot be replaced separately.

Replacing heating element for front seat

Affix heating element -1- to the front seat -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

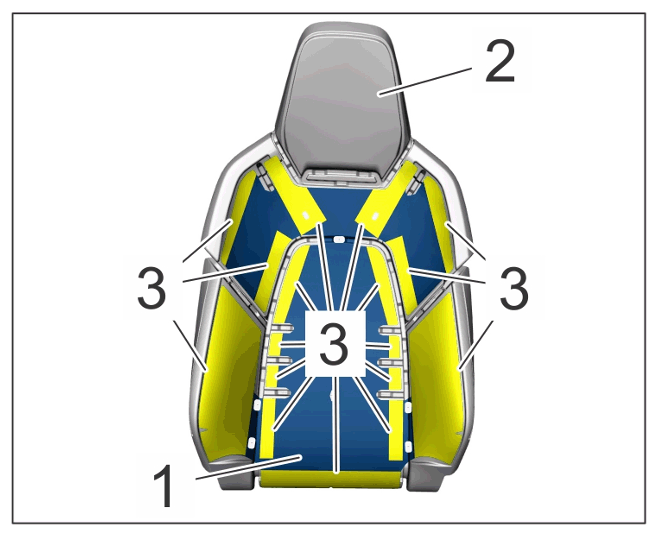

Heating element for front seat
1. 1.1 Position heating element -1- on front seat -2- .
2. 1.2 Pull off protective film in area -3- and press heating element -1- on flat in area -3- .
3. 1.3 Press heating element -1- in area -2- into the grooves.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

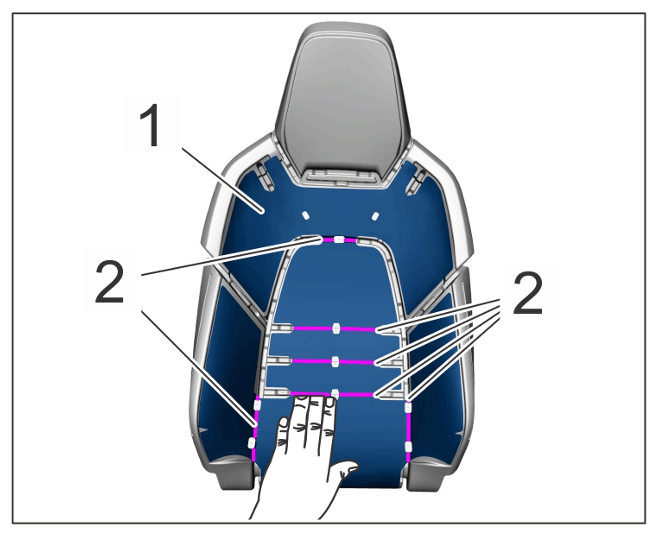

Heating element for front seat
