Replacing Heating Element For Front Seat

WARNING: This page is about a different variant/trim than selected.

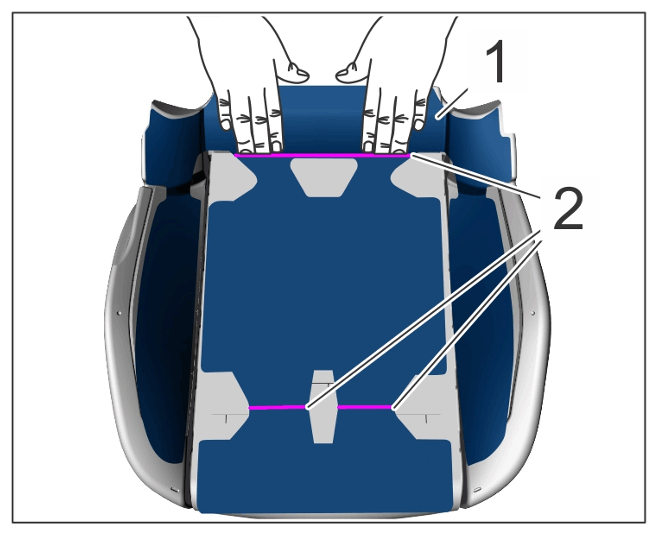

Affix heating element -1- on seat surface -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

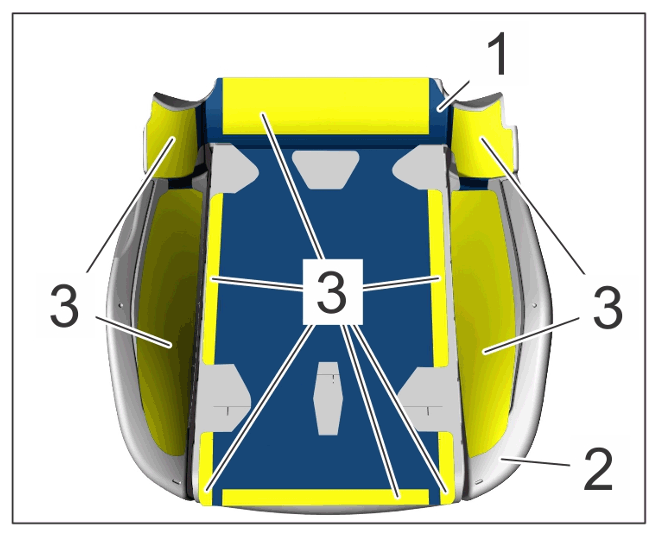

Heating element on seat surface
1. 1.1 Position heating element -1- on seat surface -2- .
2. 1.2 Pull off protective film in area -3- and press heating element -1- on flat in area -3- .
3. 1.3 Press heating element -1- in area -2- into the grooves.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on seat surface
