Removing Backrest Pocket
WARNING: This page is about a different variant/trim than selected.
- Disengage support rods -1-
and guide rubber straps -3-
through towards the front.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

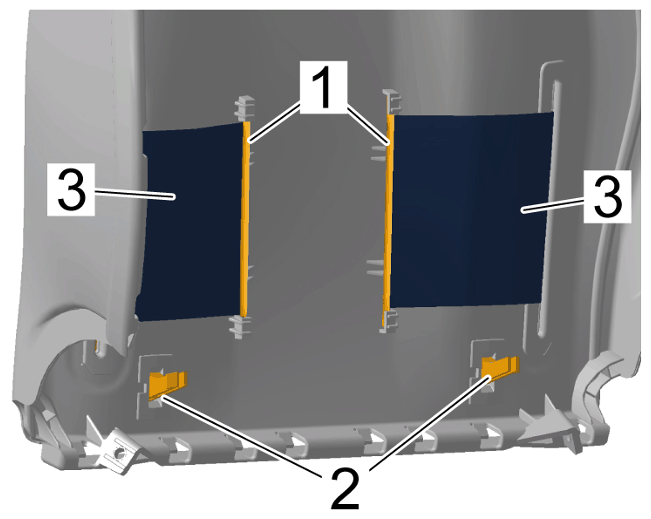

Support rods for backrest pocket
- Release locks -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locks on backrest pocket
- Remove backrest pocket -1-
from the backrest cover -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

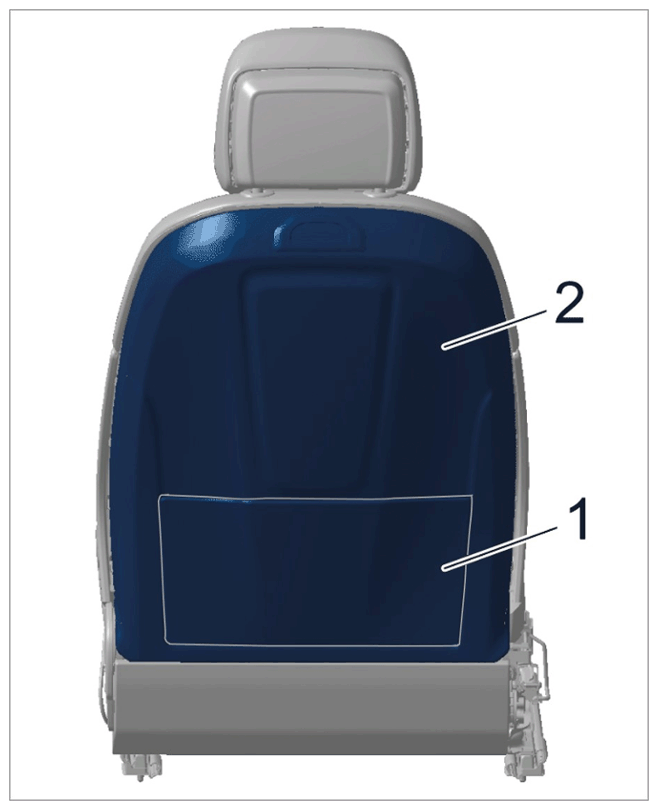

Backrest pocket
