Removing Cover For Front Backrest
WARNING: This page is about a different variant/trim than selected.

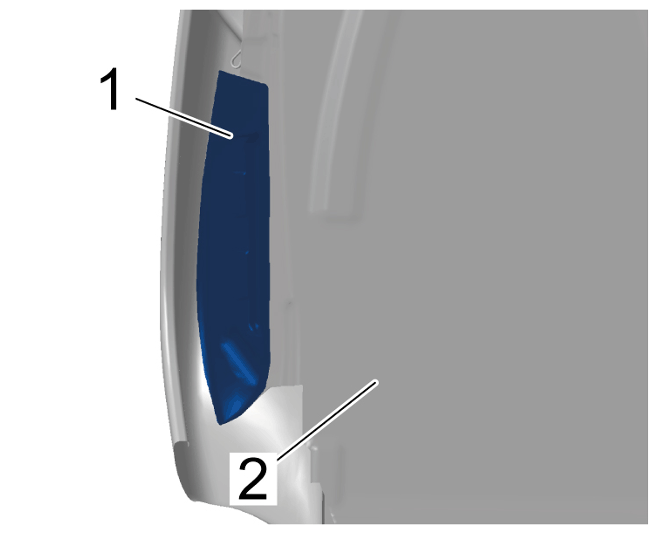

- Fit tab -1-
of cover for front backrest over the padding -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Tab on backrest cover

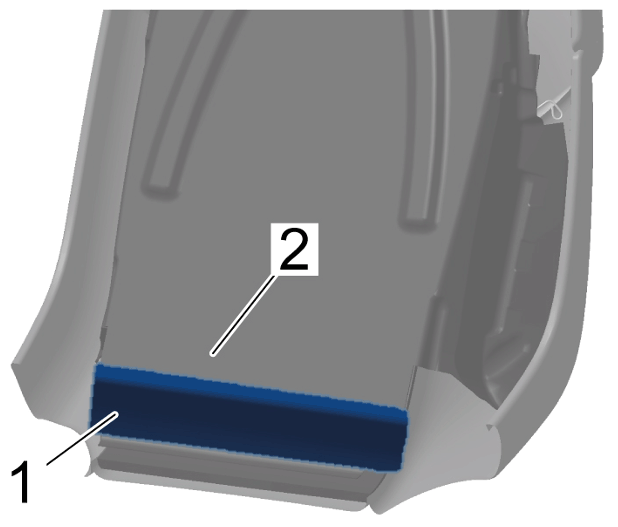

- Guide side airbag catcher -1-
through the backrest padding -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Side airbag catcher

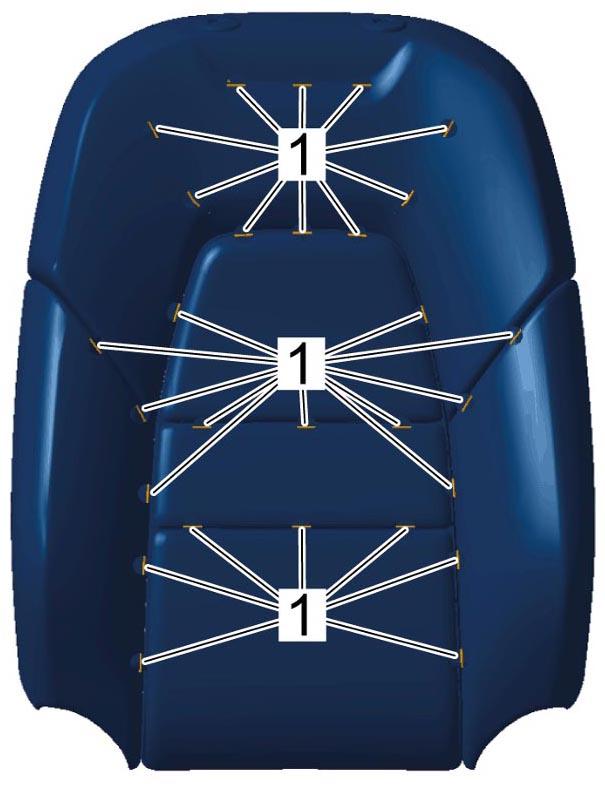

- Open cushion rings -1-
and remove front backrest cover.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cushion rings
