Removing Padding For Front Backrest

WARNING: This page is about a different variant/trim than selected.

Only for vehicles with front seat ventilation "A/C seat" (I-no. 4D3):
Move rubber tabs -1- with the ventilation duct to ward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

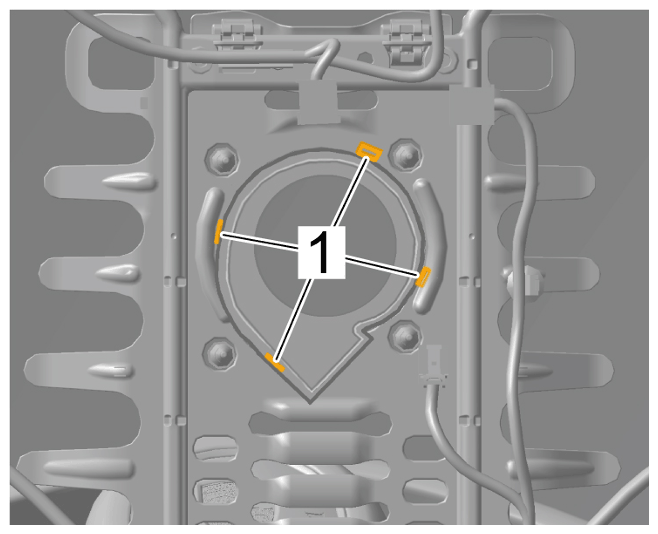

Rubber tabs on ventilation duct
Only for vehicles with independently adjustable seat heating for front seats (I-no. 4D3):
Release and disconnect electric plug connection -1- under the seat surface.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

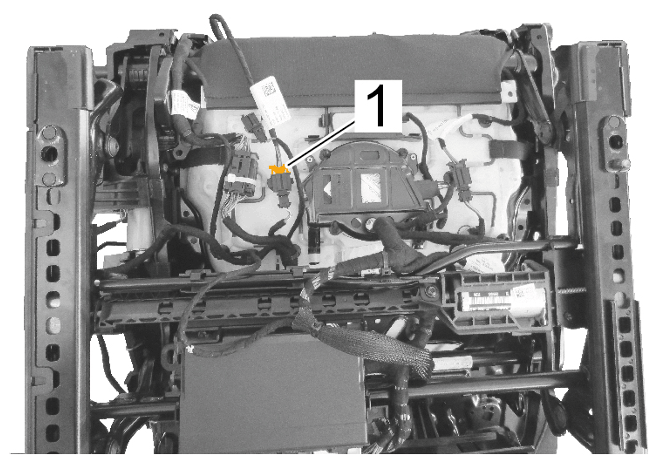

Electric plug connection
Only for vehicles with independently adjustable seat heating for front seats (I-no. 4D3):
Unclip clip -1- and guide out electric wire harness.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

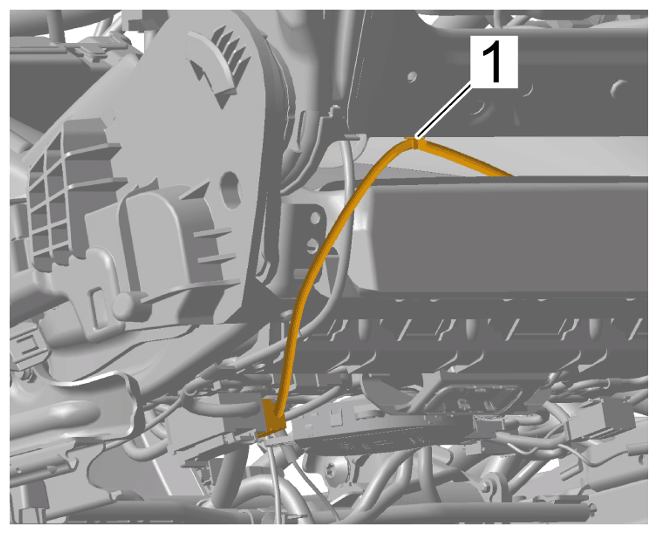

Electric wire harness
Remove padding for front backrest -1- from the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

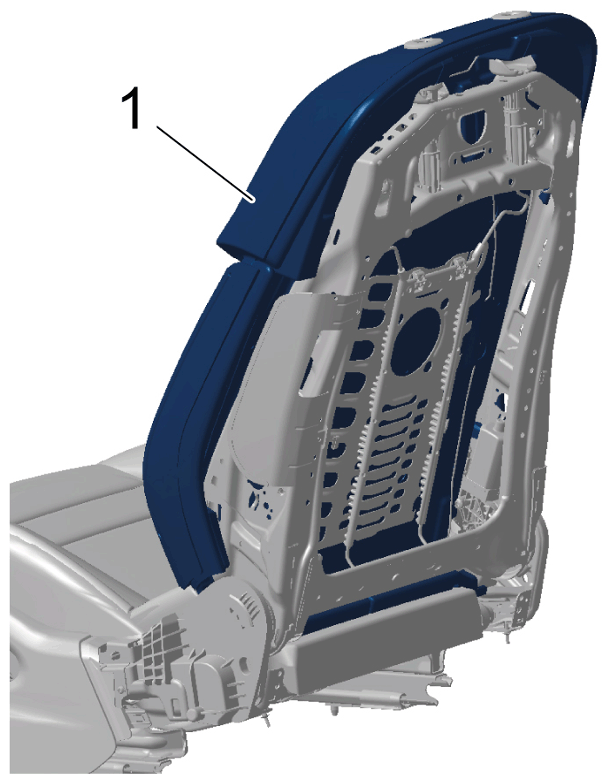

Padding for front backrest
