Removing Suction Fan For Seat Backrest

WARNING: This page is about a different variant/trim than selected.

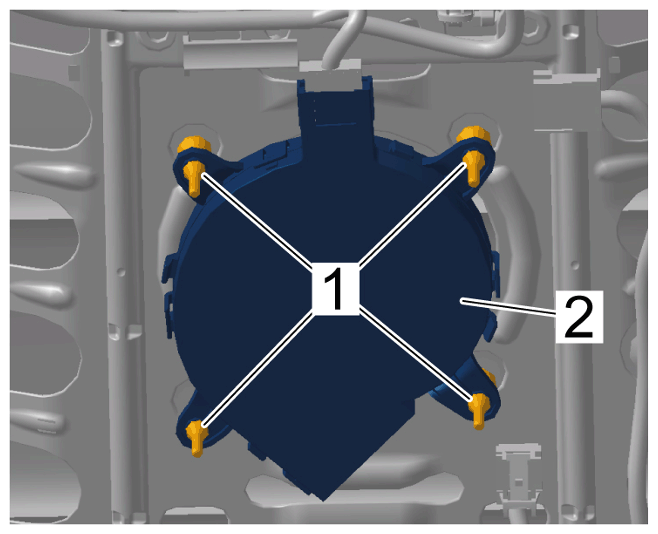

  1. Disengage rubber pins -1-  and guide through suction fan for seat backrest -2-  .
    G15280090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction fan for seat backrest

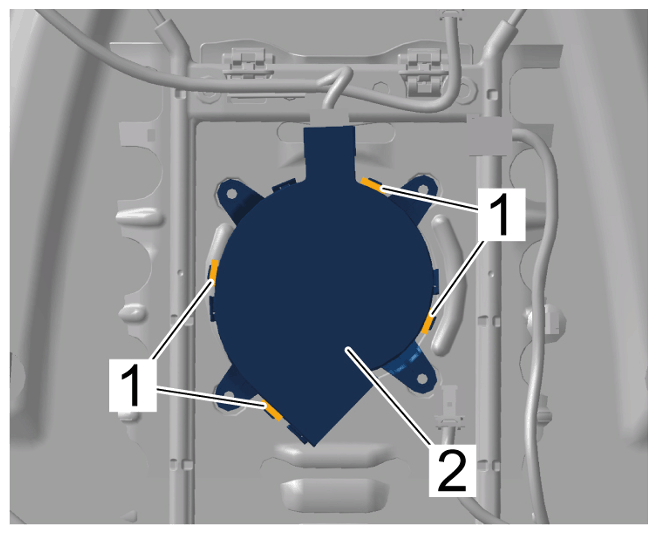

  2. Disengage clips -1-  and detach suction fan or seat backrest -2-  from the padding.
    G15280091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

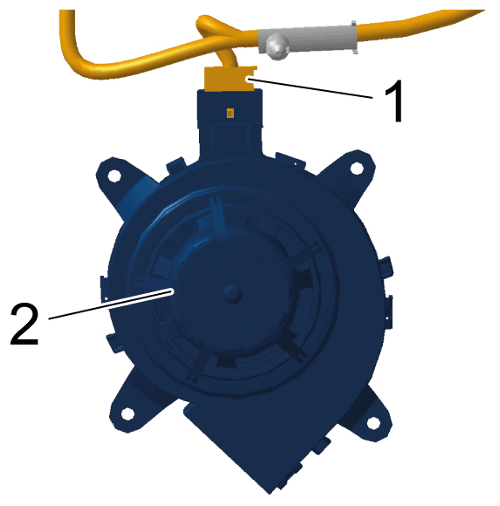

  3. Release and disconnect electric plug connection -1-  and remove suction fan for seat backrest -2-  .
    G15280092Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
