Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

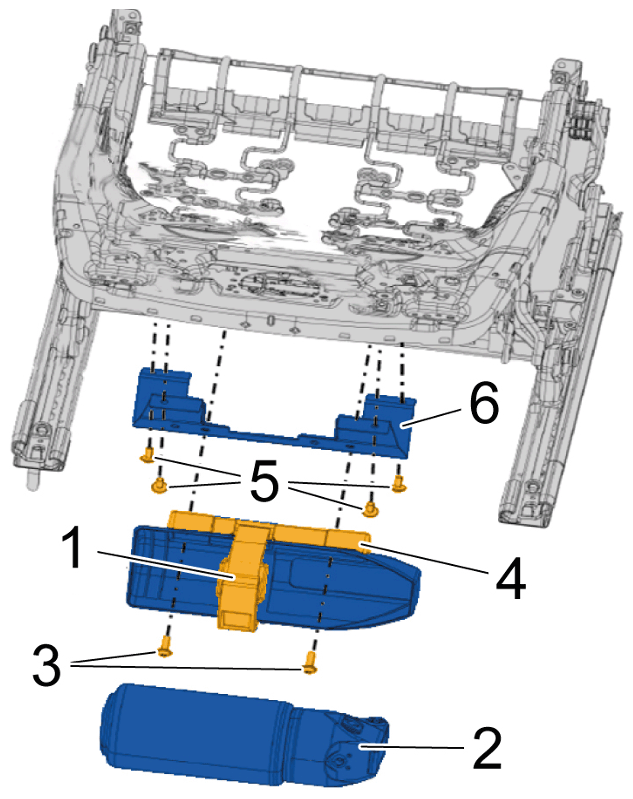

Tightening torque for screw securing fire extinguisher holder to tubular frame holder	Item 3	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fire extinguisher holder
Screw securing wire frame holder to seat frame	Item 5	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fire extinguisher holder

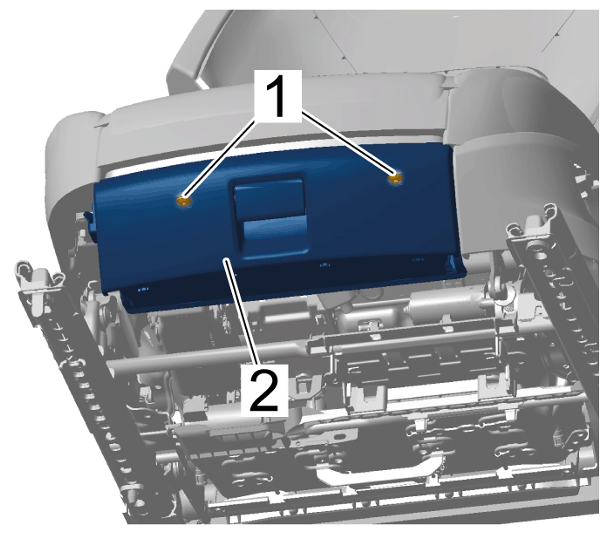

Screw securing fold-out compartment to front seat frame	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Storage compartment

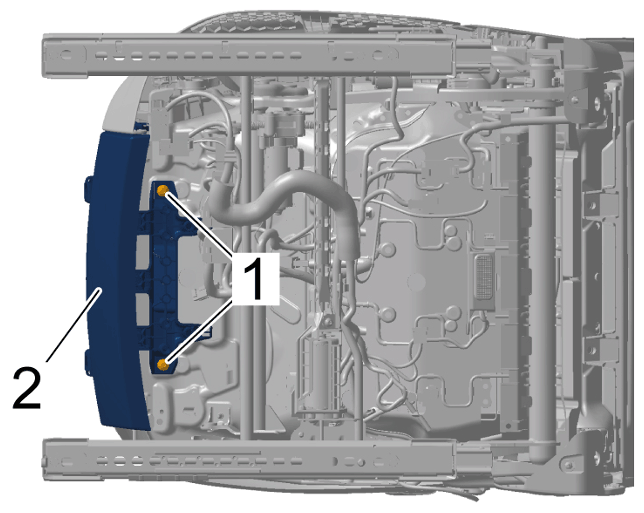

Screw securing front seat to seat frame	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front cover
