Removing Front Seat Surface Suction Fan

WARNING: This page is about a different variant/trim than selected.

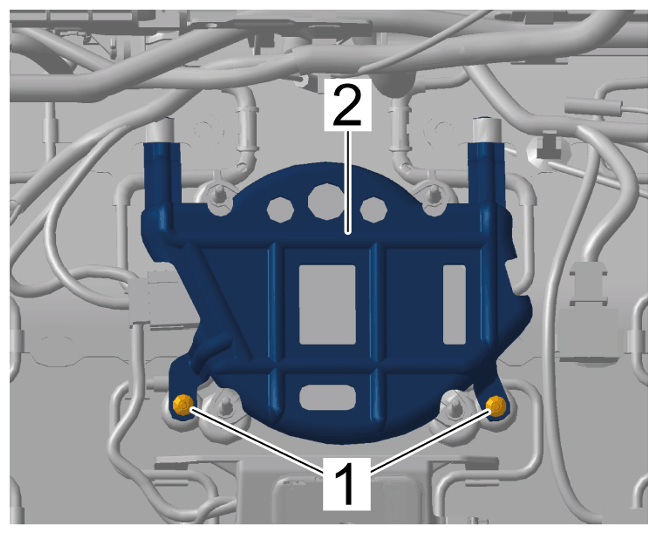

  1. Drill out rivets -1-  and remove the protection cap -2-  .
    G15280057Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rivets

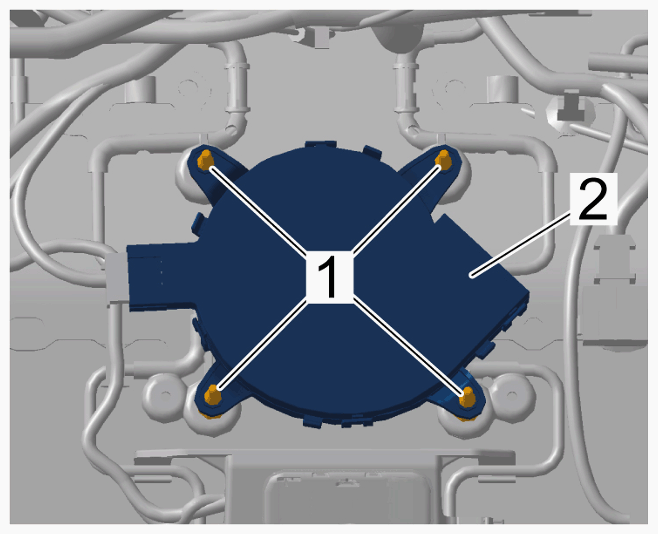

  2. Disengage rubber pins -1-  and guide through the front seat-surface suction fan -2-  .
    G15280058Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat-surface suction fan

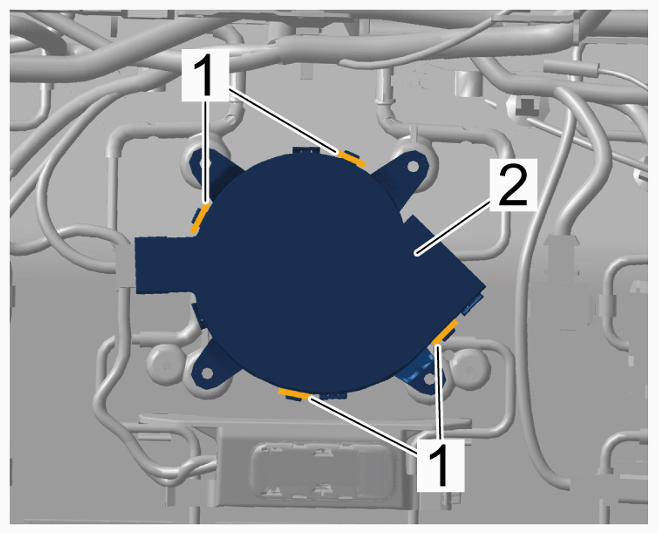

  3. Disengage clips -1-  and detach front seat-surface suction fan -2-  from the padding.
    G15280059Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

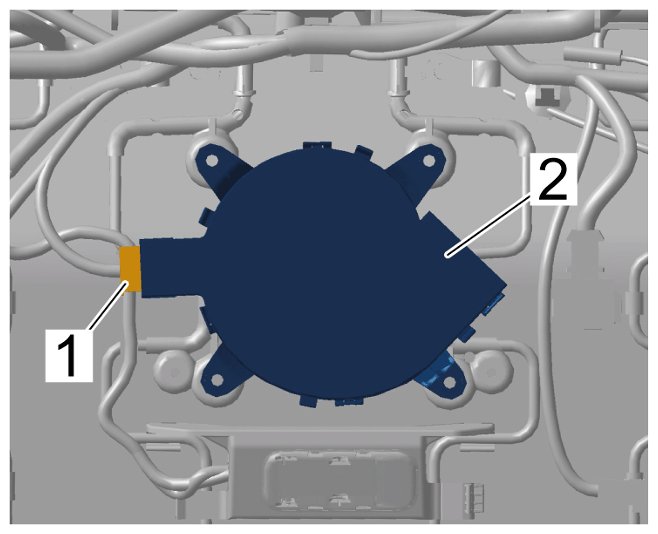

  4. Release and disconnect electric plug connection -1-  and remove front seat-surface suction fan -2-  .
    G15280060Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
