Removing Seat-Surface Extension
WARNING: This page is about a different variant/trim than selected.
Information
Carefully fold front seat cover up and over on the seat-surface extension to prevent the seat cover from tearing at the corners.

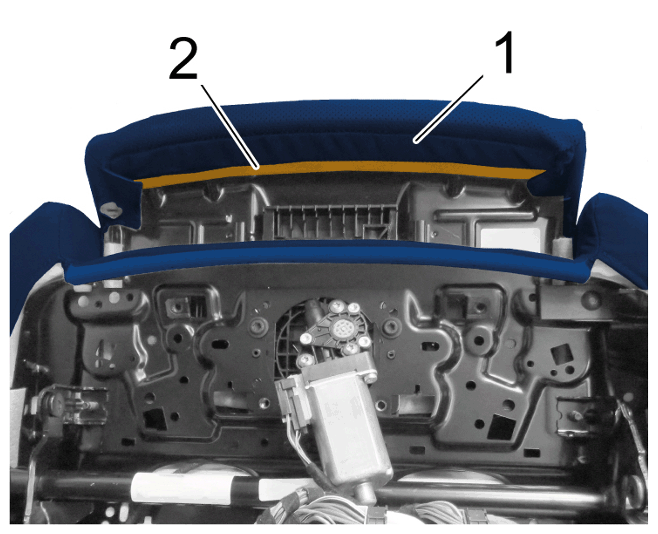

- Disengage clamping strip -2-
on the seat-surface extension and fold the front seat cover -1-
up and over.
Front seat cover on seat-surface extension

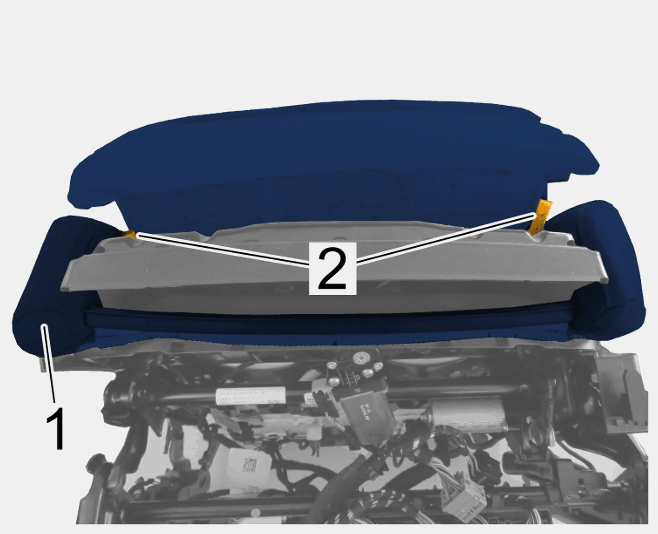

- Disengage clamping strips -2-
and move front seat cover -1-
upwards in the seat-surface extension area.
Front seat cover on seat-surface extension

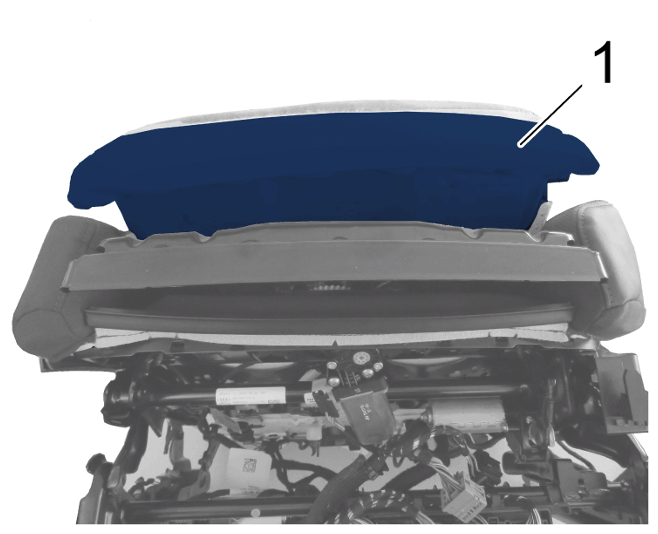

- Move padding -1-
for the seat-surface extension towards the rear.
Padding for seat-surface extension
- Only for vehicles with Independently adjustable seat heating fc front seats (I-no. 4A3):

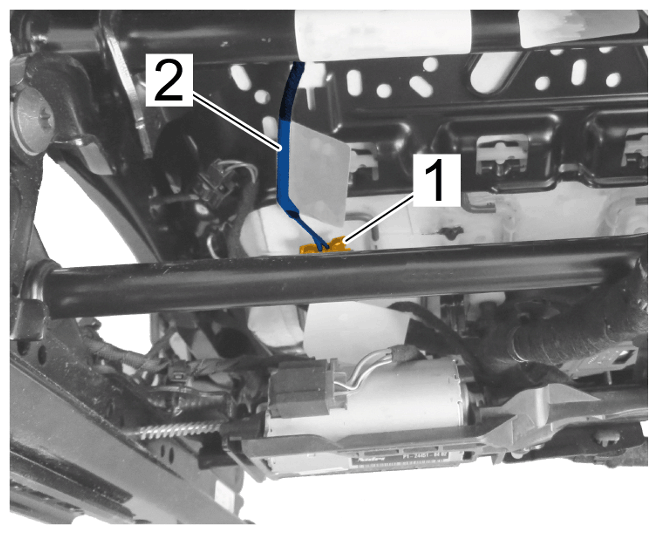

Release and disconnect electric plug connection -1- and guide electric wire harness -2- up through the seat frame and front seat cover.
Electric wire harness for seat heating for seat-surface extension

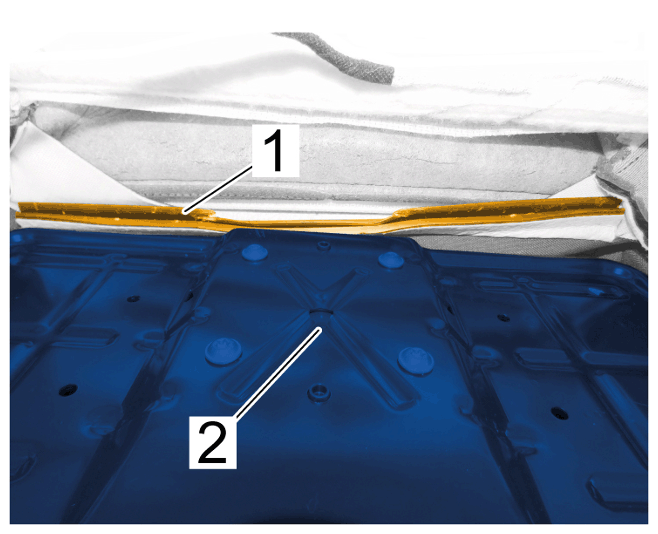

- Disengage rear clamping strip -1-
on the seat-surface extension -2-
.
Clamping strip on seat-surface extension

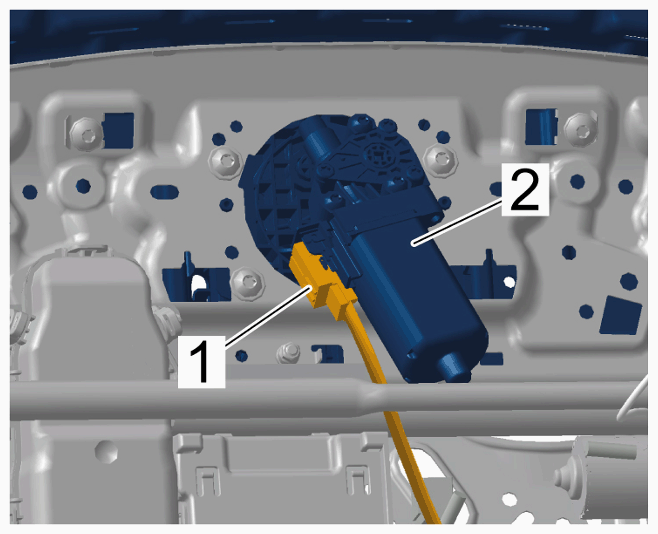

- Release and disconnect electric plug connection -1-
on drive motor for seat-surface extension -2-
.
Electric plug connection for seat-surface extension
- Remove seat-surface extension -2-
.
Seat surface extension

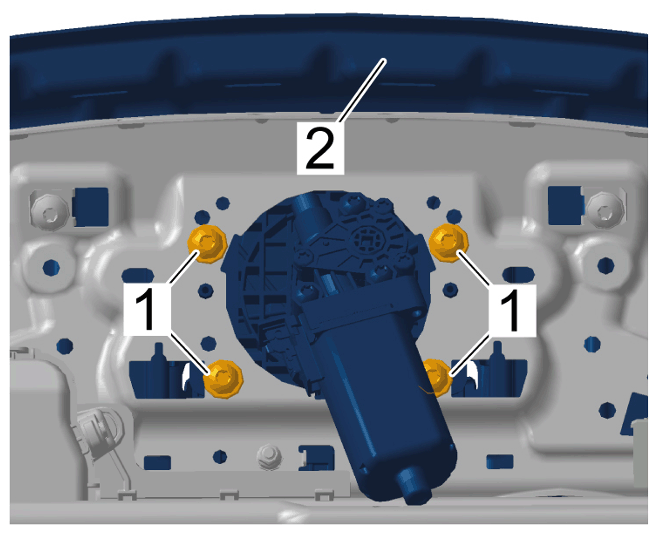

- 7.1 Unscrew and remove screws -1- .
- 7.2 Lift padding on seat-surface extension and remove seat-surface extension -2- .
