Trailer Hitch

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

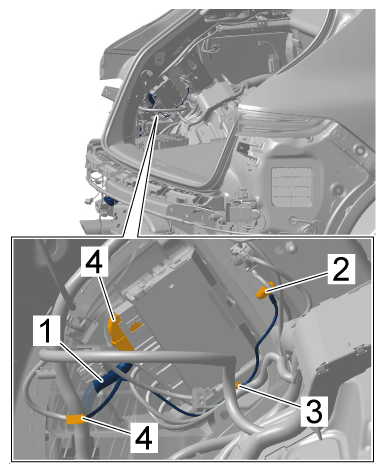

Nut on ground point for wire harness for trailer hitch	Item 2	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wire harness in side panel
Plug socket for trailer hitch to trailer hitch	Item 2	Tightening torque	5.5 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

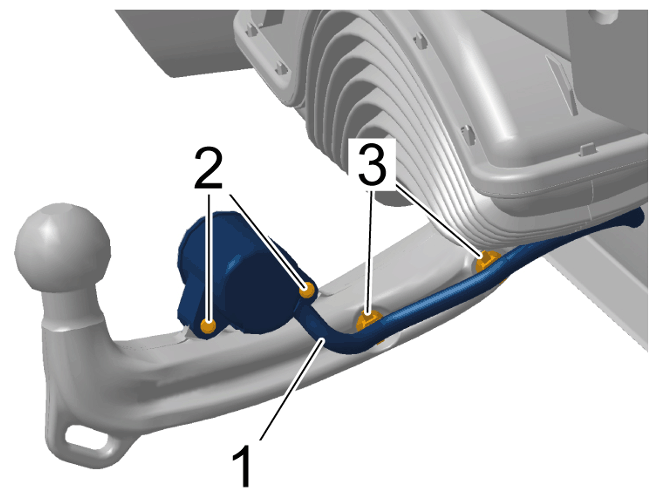

Trailer hitch motor to trailer hitch	Item 2	Tightening torque	55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
Trailer hitch motor to trailer hitch	Item 1	Tightening torque	55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

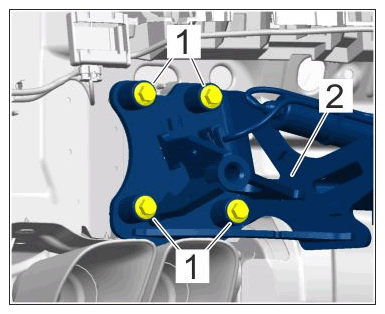

Screws securing trailer hitch to body	Item 1	Tightening torque	110 Nm (81.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for trailer hitch
