Sun Protection Motor

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

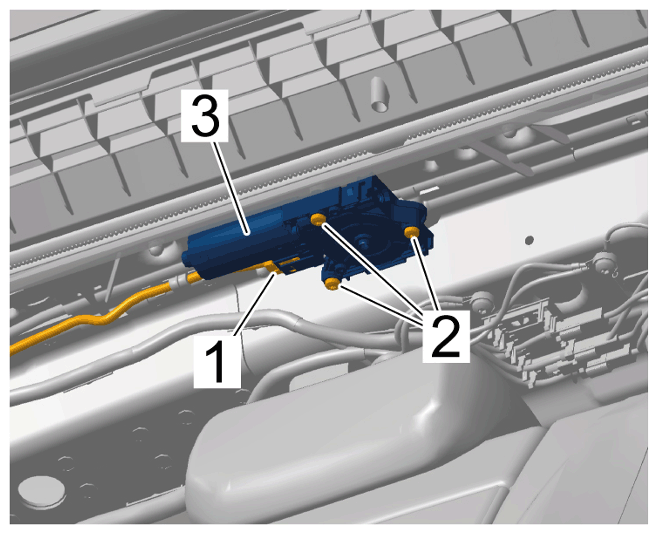

Screws securing sun protection motor to holder	Item 2	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing sun protection motor to holder

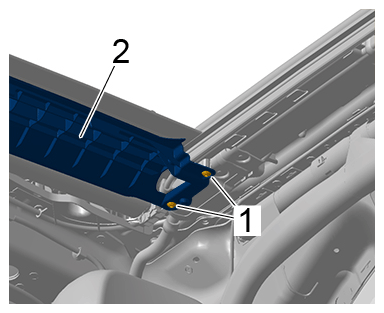

Screws securing cross member to guide rail	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing cross member to guide rail

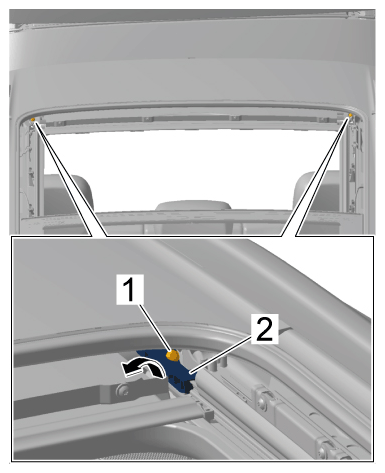

Screw securing guide shoe to guide rail	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide for sun blind rail
