Sun Blind
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

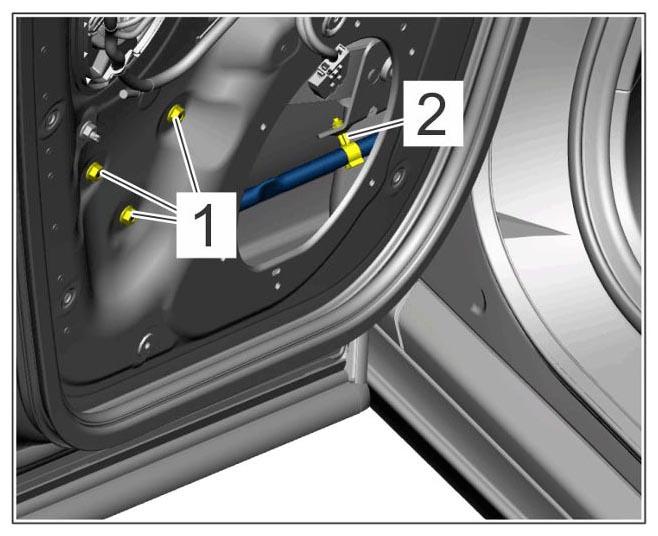

| Screws securing sun blind (on door window) to rear door panel |
Item 1 |
Tightening torque |
4.5 Nm (3.3 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |

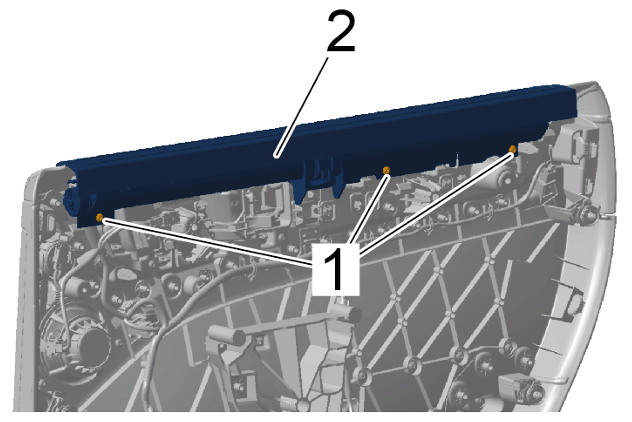

| Nuts securing sun blind (drive) to basic door frame |
Item 1 |
Tightening torque |
7.5 Nm (5.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts |
