Sliding-Roof Panel
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

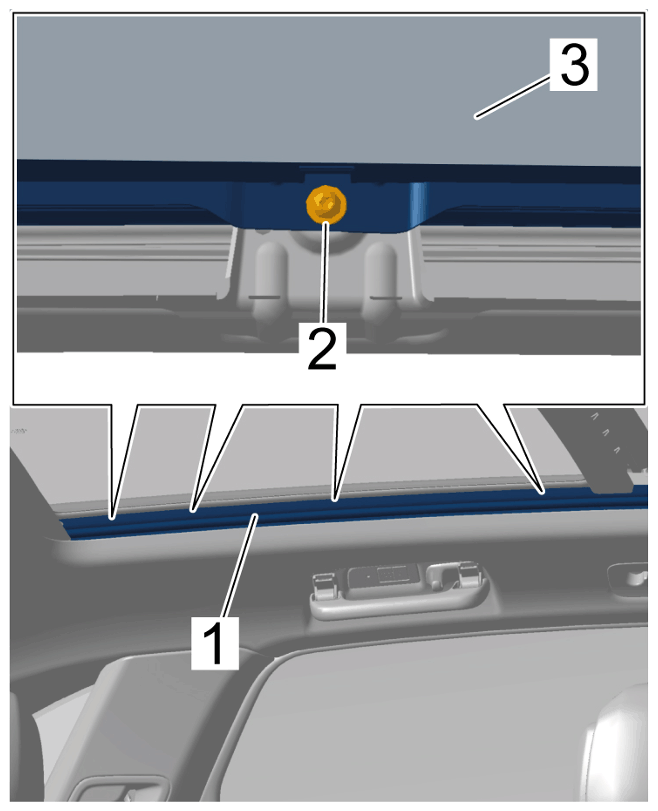

| Screws for sliding-roof panel | Item 1 | Tightening torque | 3 Nm (2 ftlb.) | |
|
Sliding-roof panel |
||||

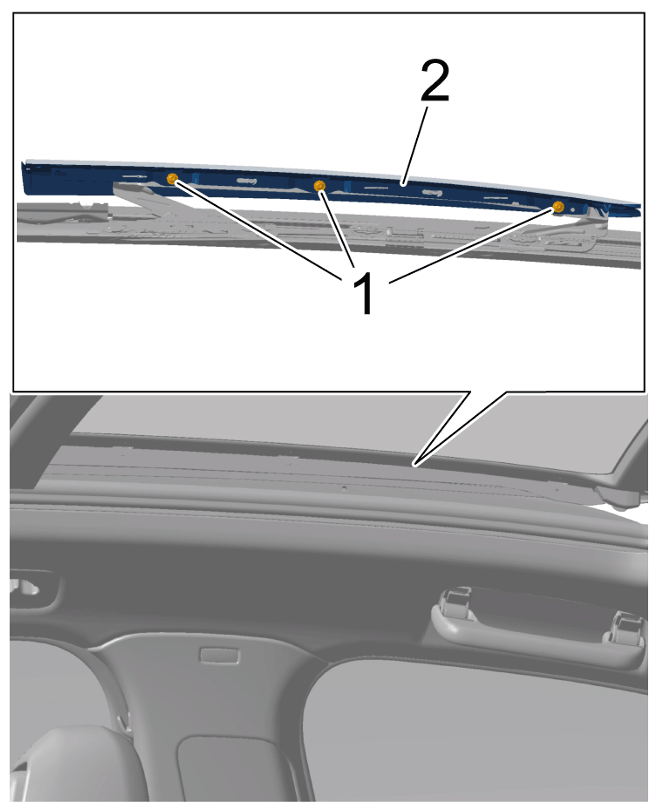

| Screws for rear panoramic roof glass panel | Item 2 | Tightening torque | 3 Nm (2 ftlb.) | |
|
Rear panoramic roof glass panel |
||||

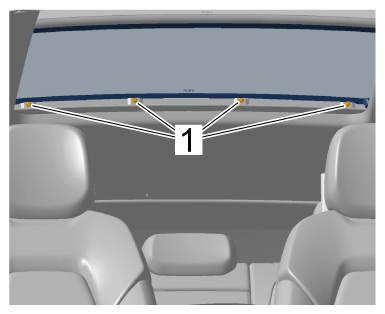

| Screws securing panoramic roof glass panel to rear roof assembly | Item 1 | Tightening torque | 3 Nm (2 ftlb.) | |
|
Rear screws |
||||
