Roof Sun Blind

WARNING: This page is about a different variant/trim than selected.

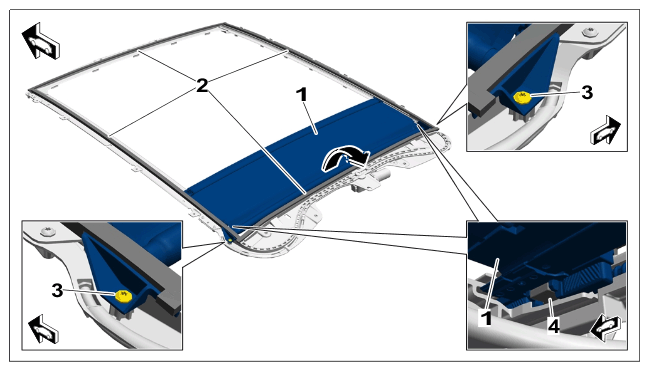

Fig 1: Sun Blind Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind

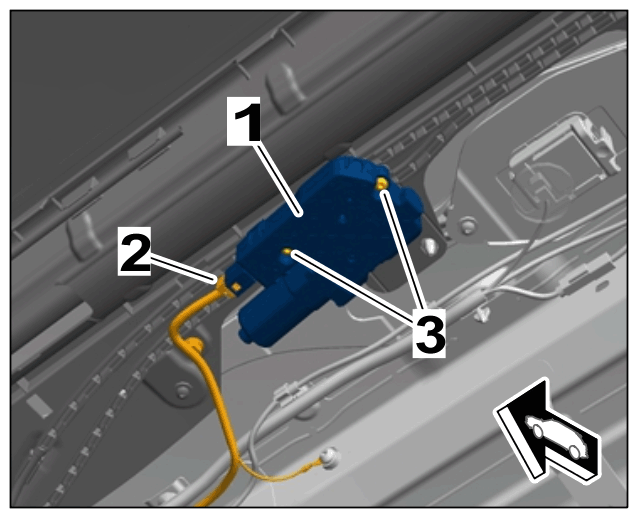

Fig 2: Sun Blind Motor Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind motor

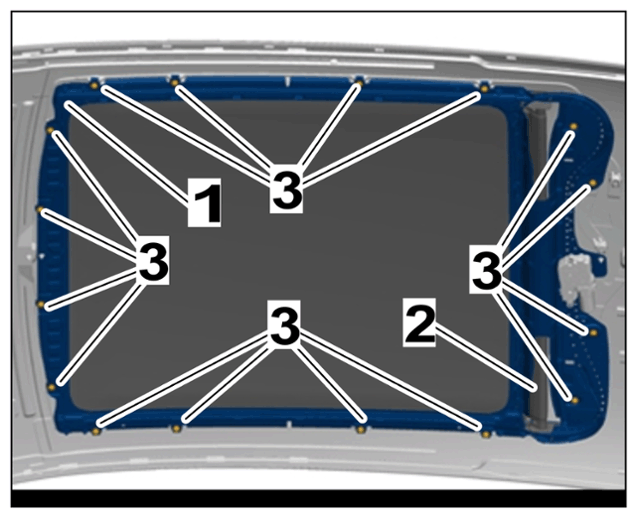

Fig 3: Roof Sun Blind Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof sun blind

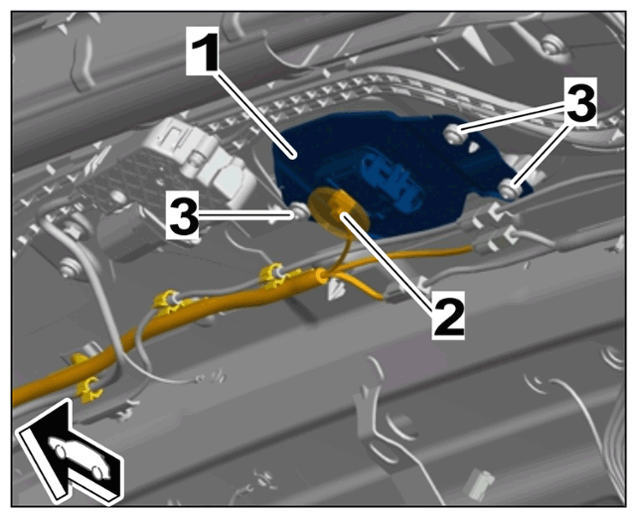

Fig 4: SDARS Antenna Holder Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

SDARS antenna holder

1	SDARS antenna holder
2	Electric plug connection for SDARS antenna
3	> Tightening torque 6 Nm (4.5 ftlb.)
