Roof Rails

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance

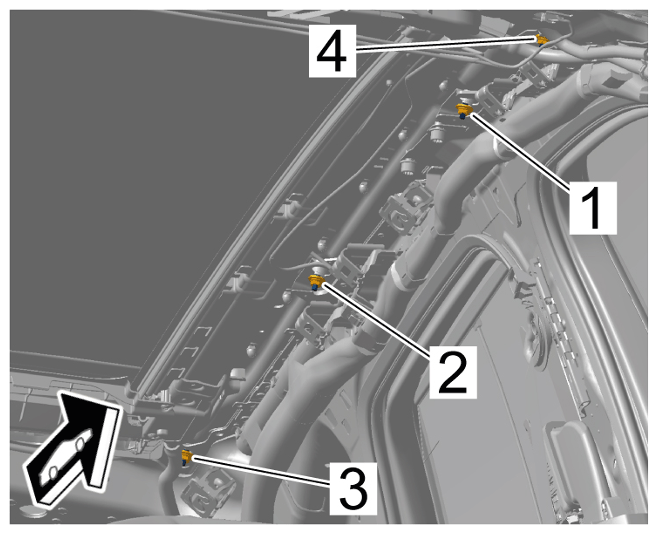

Nuts for roof rails Items 1, 2, 3, 4 Tightening torque 10 Nm (7.5 ftlb.)
G15238228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
