Rear-View Mirror

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance

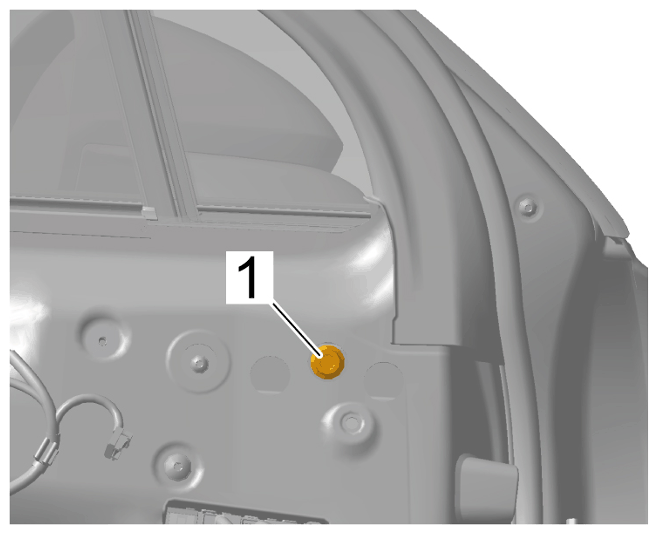

Rear-view mirror	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

Location	Description	Type	Basic value

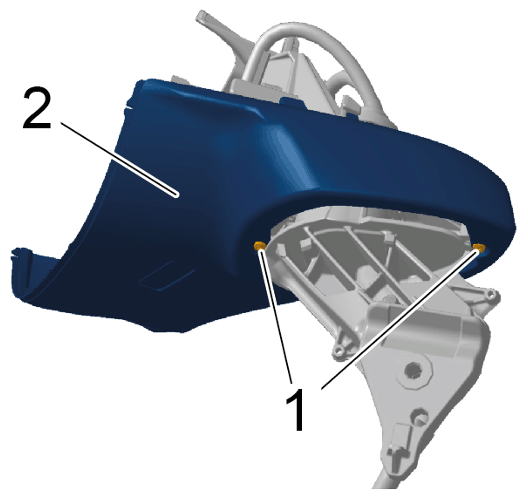

Screws on rear-view mirror housing (upper part)	Item 1	Tightening torque	1.4 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw for rear-view mirror housing (upper part)	Item 2	Tightening torque	0.9 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

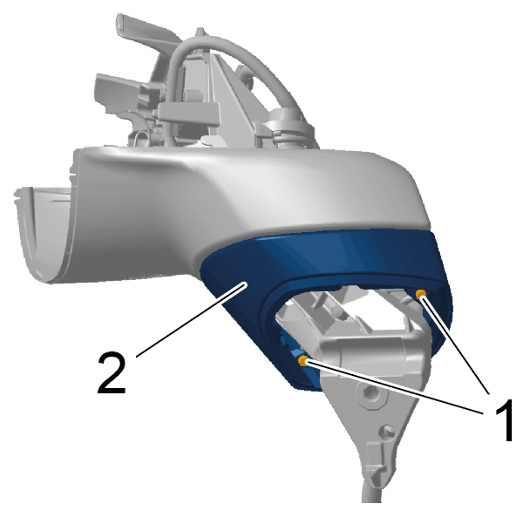

Screws on trim panel for mirror base	Item 1	Tightening torque	1.4 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on trim panel for mirror base

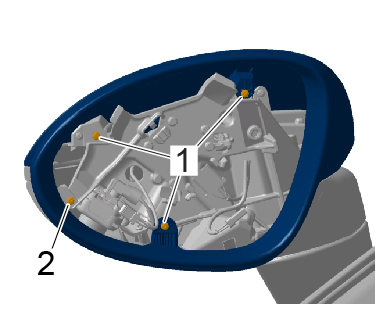

Screws for rear-view mirror housing (lower part)	Item 1	Tightening torque	1.4 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear-view mirror housing (lower part)

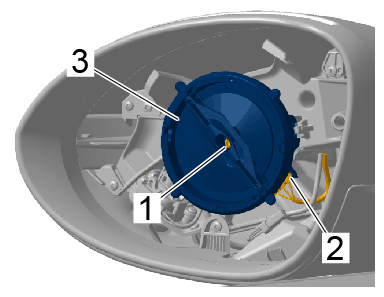

Screw for mirror adjusting motor	Item 1	Tightening torque	1.4 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for mirror adjusting motor
