Rear Window Guide
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

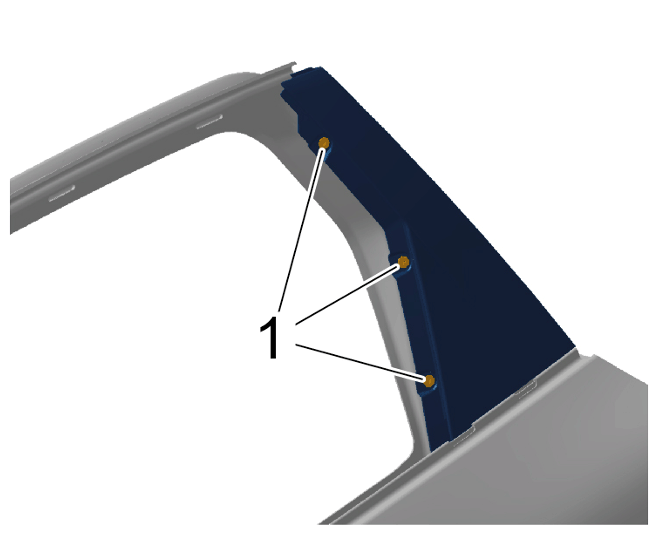

| Screws securing cover (C-pillar) to door |
Item 1 |
Tightening torque |
2.5 Nm (1.9 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |

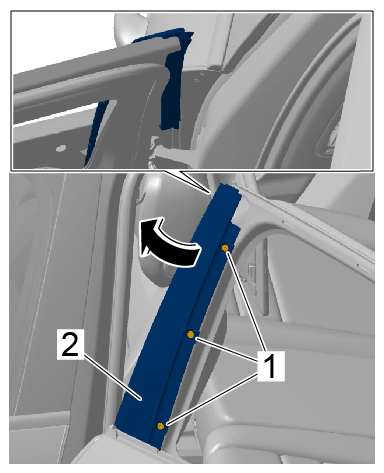

| Screws securing cover (B-pillar) to door |
Item 1 |
Tightening torque |
2.5 Nm (1.9 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
