Rear Spoiler

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

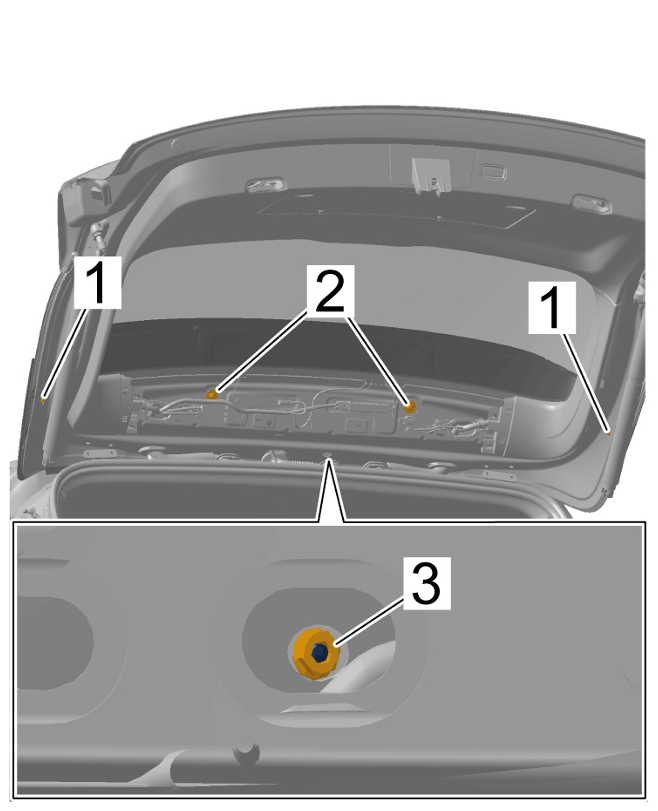

Nut securing rear spoiler to rear lid	Item 3	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on rear spoiler
Screws securing rear spoiler to rear lid	Item 1, 2	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear spoiler

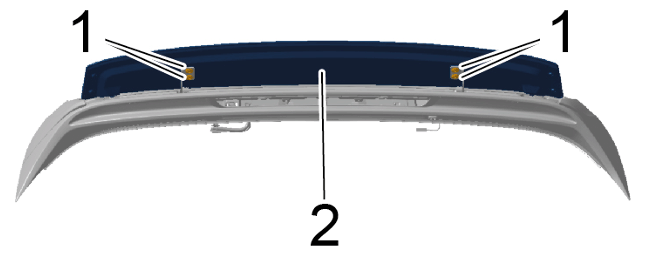

Screws for rear spoiler blade (Turbo)	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler blade

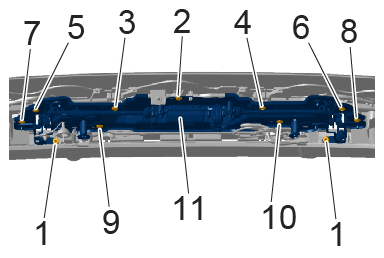

Screws for spoiler drive unit (Turbo)	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Drive unit
Screws for spoiler drive unit (Turbo)	Item 2 to 10	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Drive unit
