Rear Retaining Strips

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

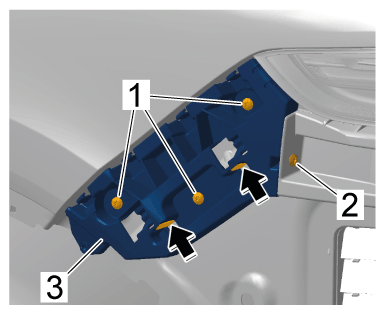

Screws for retaining strip, side	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Nuts for retaining strip on tail light	Item 1	Tightening torque	4 Nm (3 ftlb.)

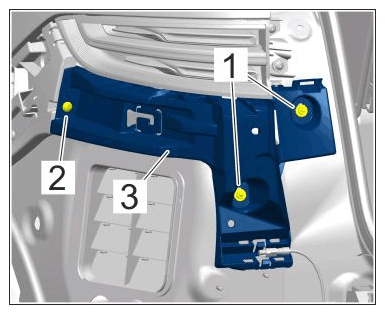

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retaining strip on tail light
Screw for retaining strip on tail light	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retaining strip on tail light

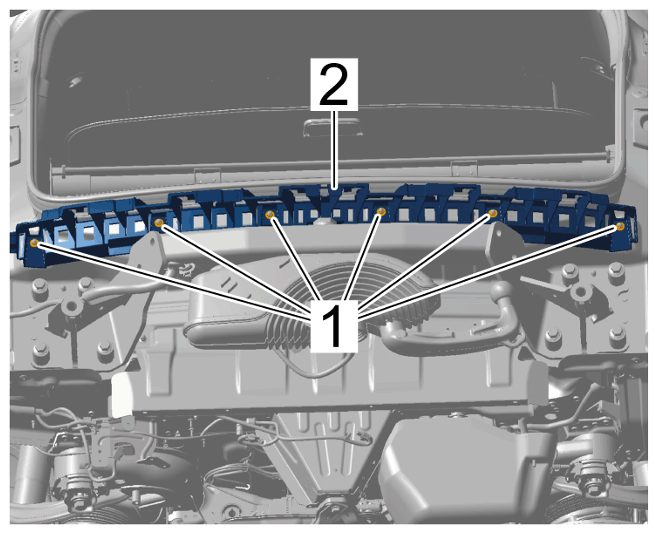

Nuts on retaining strip, center	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Retaining strip to tail light	Item Z	Gap dimension	8 mm

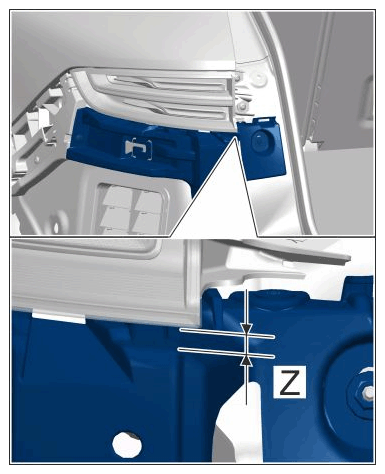

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light

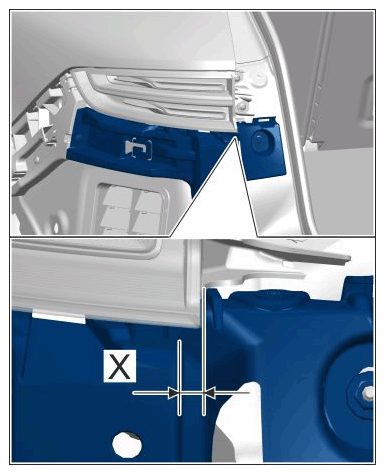

Retaining strip to tail light	Item X	Gap dimension	6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap from retaining strip to tail light
