Rear Retaining Strips (Coupe)

WARNING: This page is about a different variant/trim than selected.

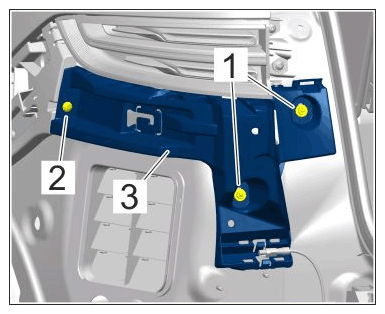

Fig 1: Side Retaining Strip Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side retaining strip

1	> Tightening torque 3 Nm (2 ftlb.)
2	Screw securing retaining strip for tail light to side retaining strip (See Retaining strip for tail light)
3	Clip

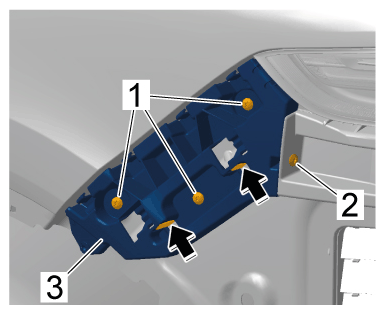

Fig 2: Retaining Strip For Tail Light Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip for tail light

1	> Tightening torque 4 Nm (3 ftlb.)
2	> Tightening torque 2.5 Nm (1.75 ftlb.)
3	Retaining strip for tail light

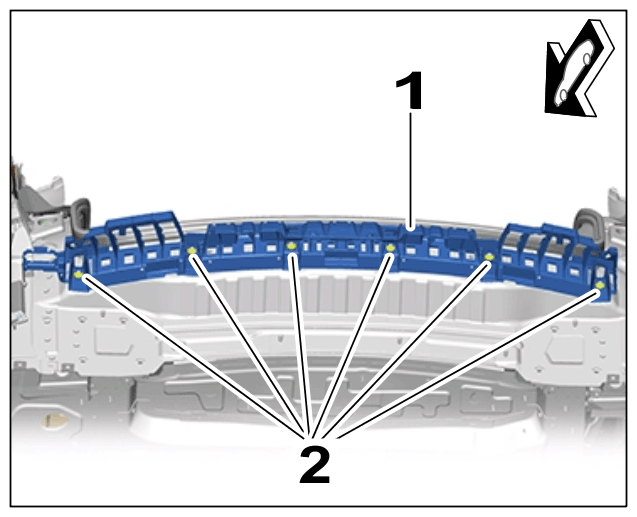

Fig 3: Centre Retaining Strip Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre retaining strip

1	Centre retaining strip
2	> Tightening torque 4 Nm (3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

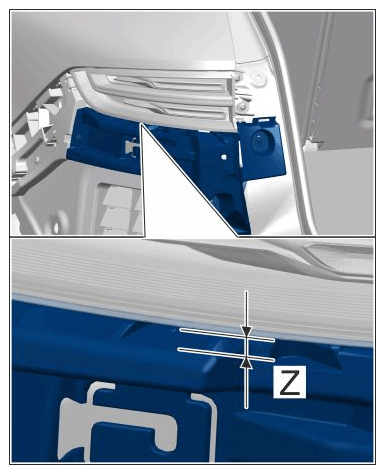

Gap from retaining strip to tail light, outer

Z	> Gap dimension 8 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

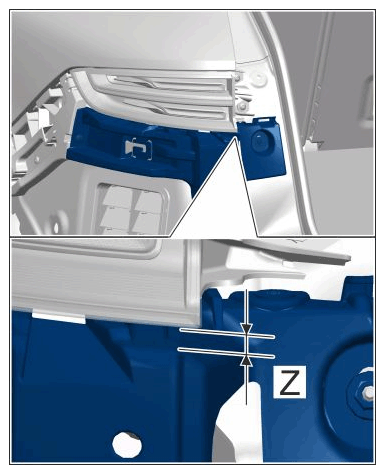

Gap from retaining strip to tail light, inner

Z	> Gap dimension 6 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

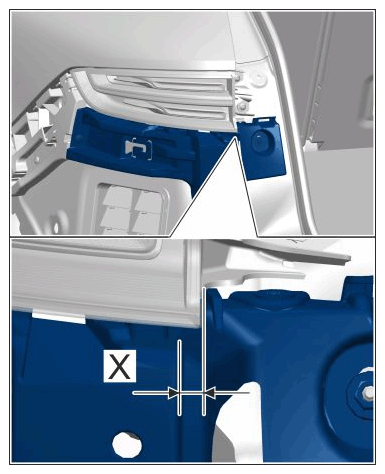

Gap from retaining strip to tail light

X	> Gap dimension 6 mm
