Rear Bumper

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screws securing rear bumper to retaining frame	Item 1	Tightening torque	2, 5 Nm (1.5 ftlb.)

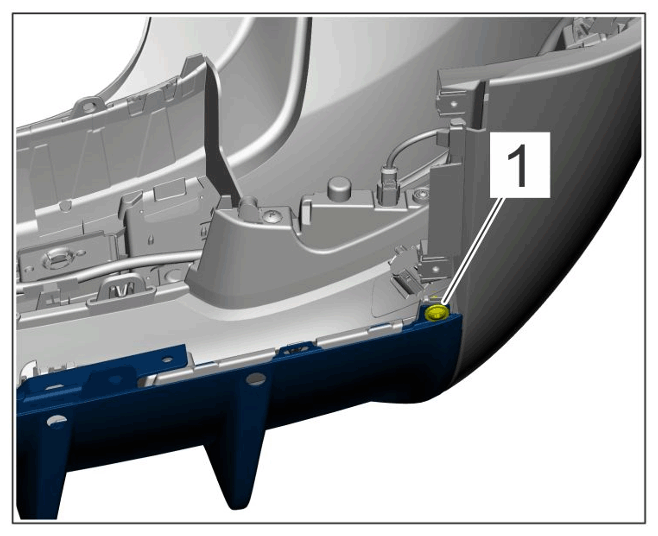

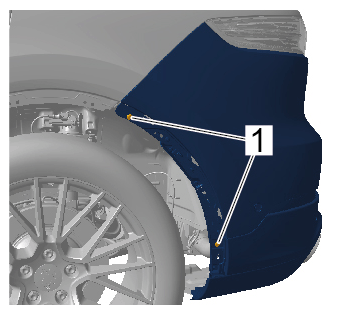

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear bumper to retaining frame
Screws securing heat shield to rear bumper	Item 2	Tightening torque	3, 5 Nm (2.2 ftlb.)

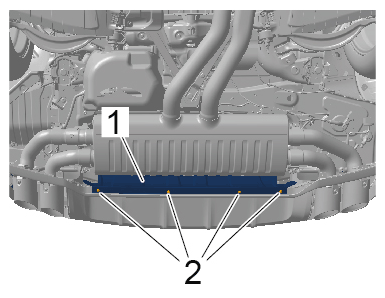

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing heat shield to rear bumper
Screw securing anchor block tailgate to rear bumper	Item 2	Tightening torque	10 Nm (7.4 ftlb.)

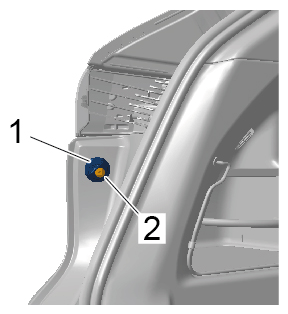

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing tailgate anchor block to rear bumper
Screw securing rear bumper to frame for light	Item 1	Tightening torque	2, 5 Nm (1.5 ftlb.)

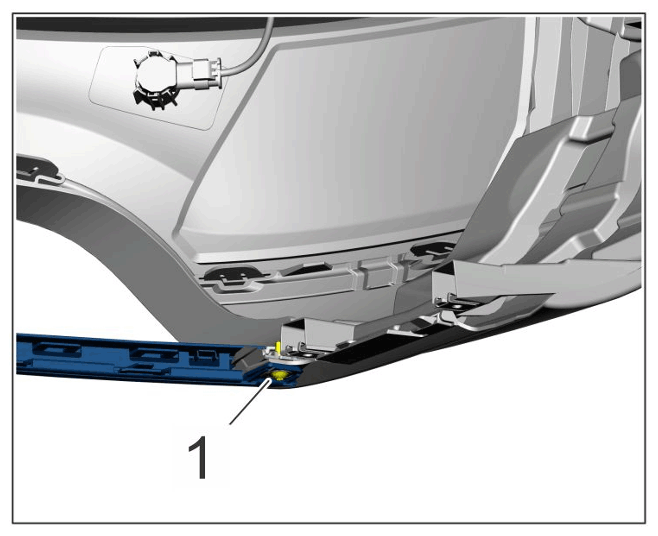

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear bumper to frame for light
Screws on mounting for rear wheel cover	Item 2, 3	Tightening torque	1.5 Nm (1.1 ftlb.)

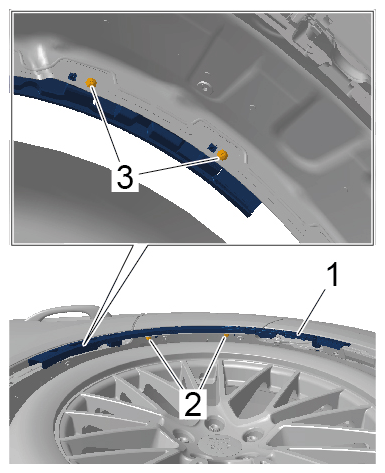

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on mounting for rear wheel cover
Screws securing rear trim element to rear bumper	Item 1	Tightening torque	2, 3 Nm (1.5 ftlb.)

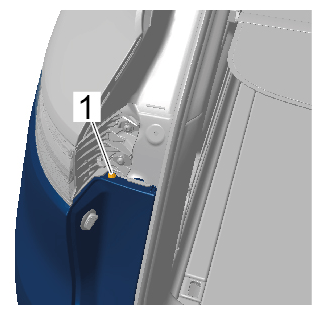

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear trim element to rear bumper
Rear trim element on rear bumper	Item 1	Tightening torque	3, 5 Nm (2.2 ftlb.)

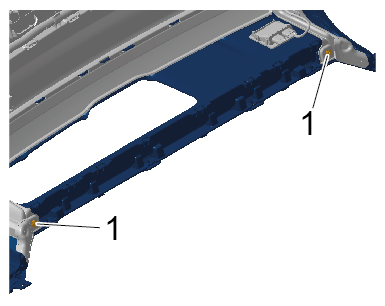

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear apron
Rear trim element (Sport Design package) on rear bumper	Item 1	Tightening torque	3, 5 Nm (2.2 ftlb.)

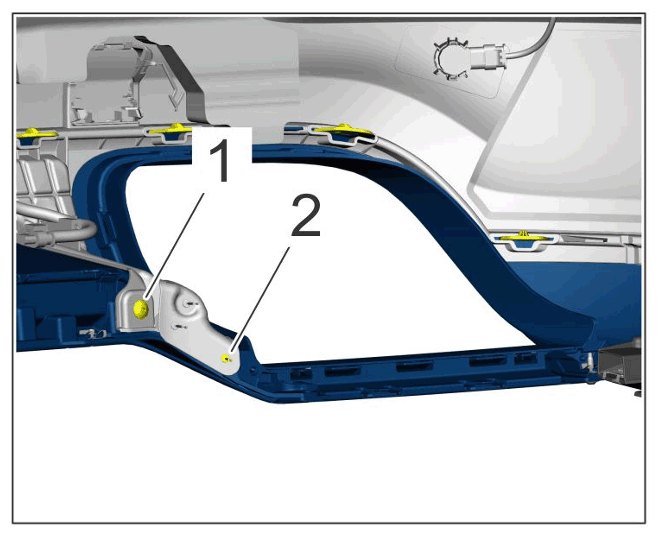

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for rear apron
Rear trim element (trim strip) to rear rear trim element	Item 1	Tightening torque	3, 5 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on trim strip
