Technical Values: Overview

WARNING: This page is about a different variant/trim than selected.

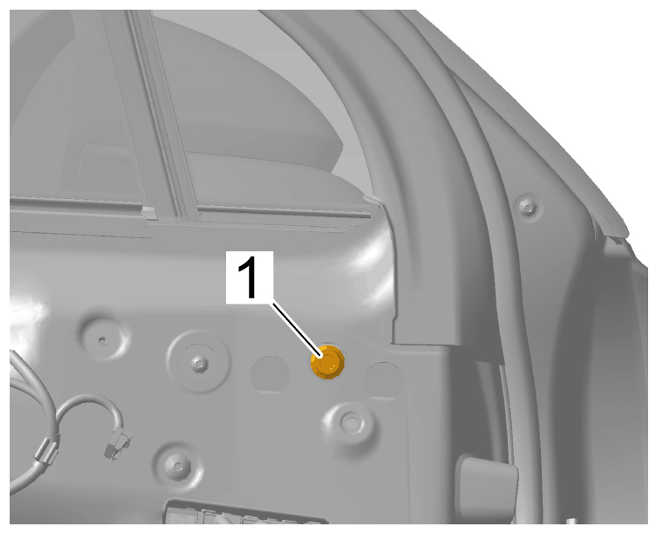

Location Description Type Basic value Tolerance 1 Tolerance 2
Rear-view mirror Item 1 Tightening torque 20 Nm (15 ftlb.)
G15237997Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Nut securing front power window mechanism to door Items 1 and 2 Tightening torque 7.5 Nm (5.5 ftlb.)
G15237998Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

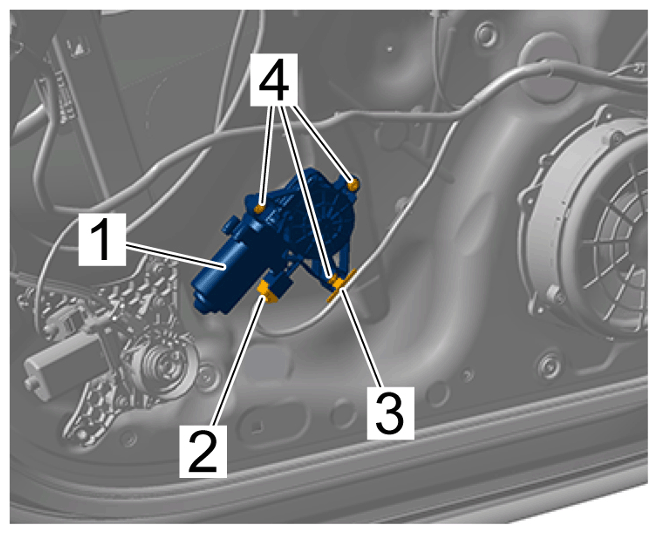

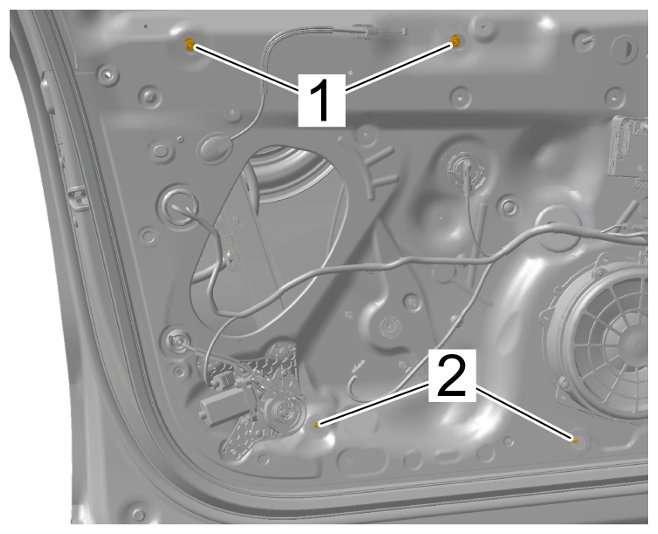

Screw securing power window motor to power window mechanism Item 4 Tightening torque 3.5 Nm (2.6 ftlb.)

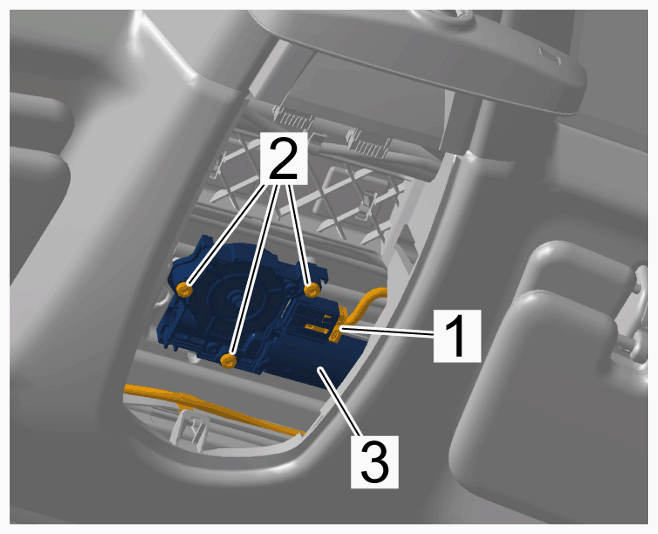

G15237999Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power window motor
Nut securing rear power window mechanism to door Items 1 and 2 Tightening torque 7.5 Nm (5.5 ftlb.)

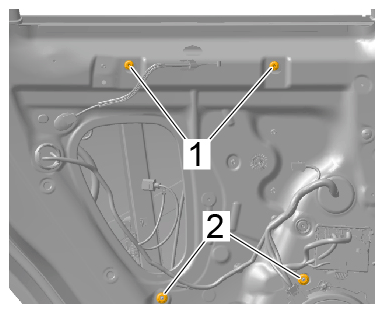

G15238000Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for rear power window mechanism
Screw securing power window motor to rear power window mechanism Item 2 Tightening torque 3.5 Nm (2.6 ftlb.)

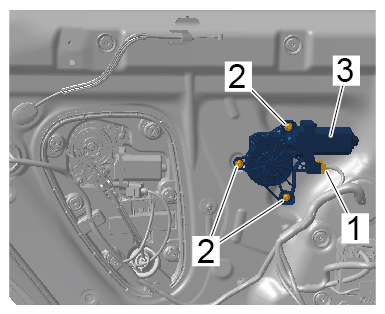

G15238001Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear power window motor
Screws securing sun blind (on door window) to rear door panel Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)

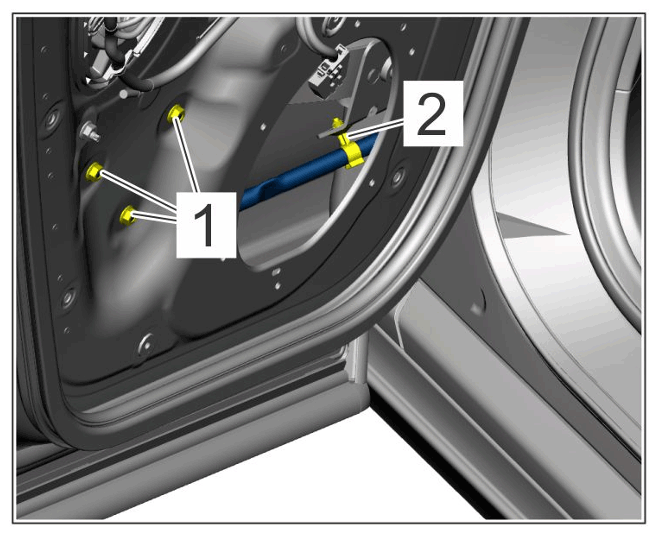

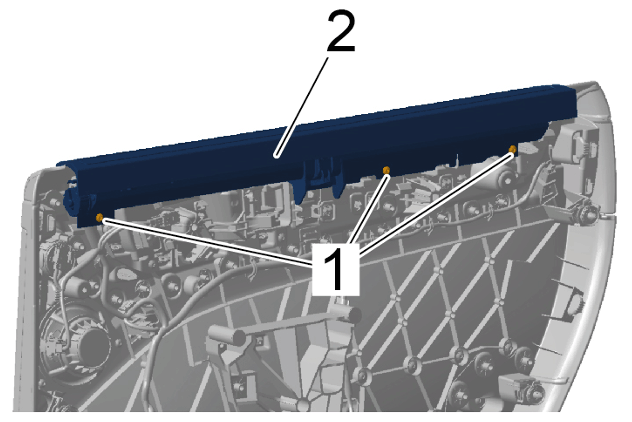

G15238002Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Nuts securing sun blind (drive) to basic door frame Item 1 Tightening torque 7.5 Nm (5.5 ftlb.)
G15238003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

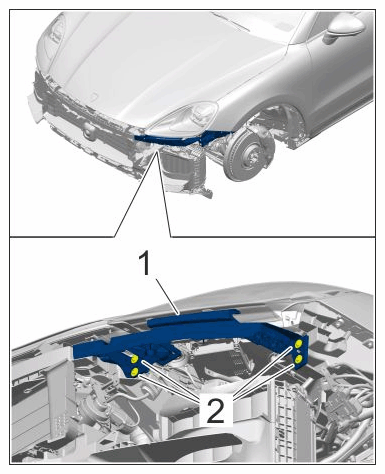

Screws securing retaining strip to front end   Tightening torque 6 Nm (4.5 ftlb.)
G15238004Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

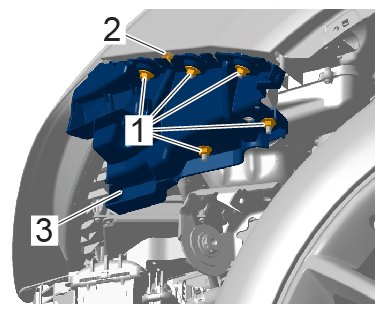

Nuts securing retaining strip to wing Item 1 Tightening torque 4 Nm (3 ftlb.)
G15238005Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

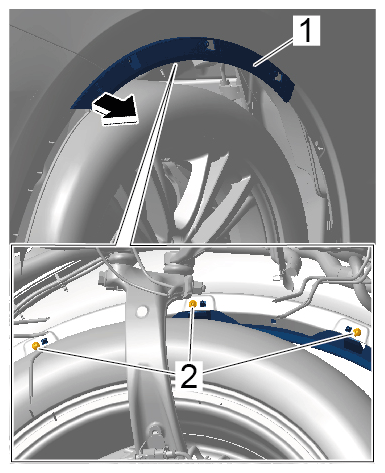

Screws securing wheel cover bracket to wing Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15238006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel cover bracket

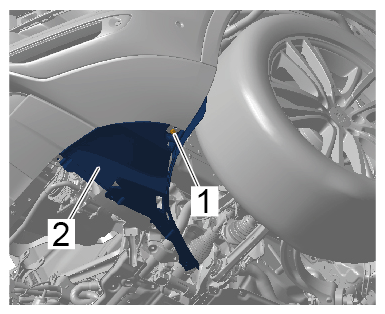

Screw securing air duct for brake to front apron, bottom Item 1 Tightening torque 3 Nm (2 ftlb.)
G15238007Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on air duct for brake

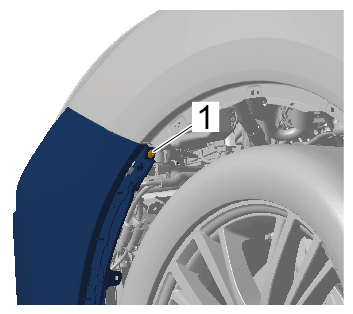

Screw securing front apron to wing Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15238008Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on front apron
Screws securing front apron to front end, bottom Item 1 Tightening torque 4.5 Nm (3.25 ftlb.)

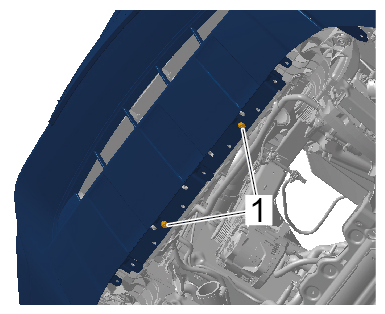

G15238009Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing front apron to front end at the bottom

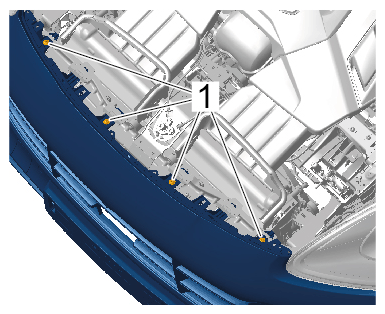

Screws securing front apron to front end, top Item 1 Tightening torque 3 Nm (2 ftlb.)
G15238010Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing front apron to front end at the top

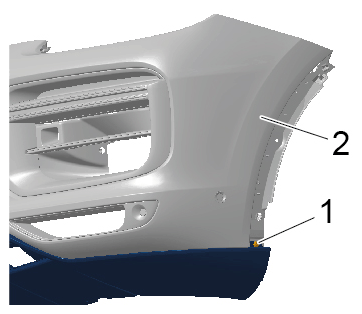

Screw securing front spoiler to front apron Item 1 Tightening torque 2.3 Nm (1.7 ftlb.)
G15238011Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing front spoiler to front apron

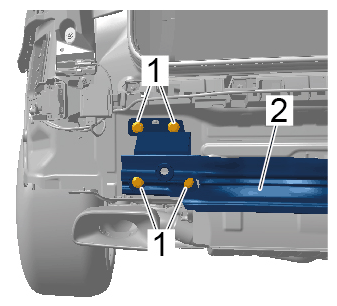

Rear bumper to bodyshell Item 1 Tightening torque 70 Nm (52 ftlb.)
G15238012Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear bumper

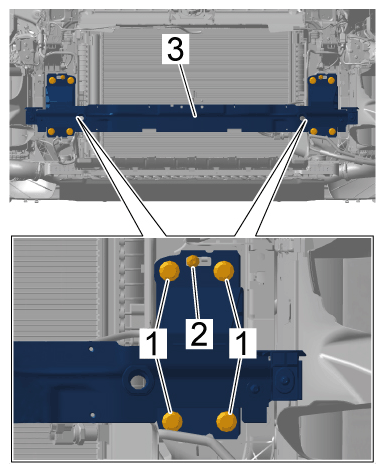

Front bumper to front end Item 1 Tightening torque 60 Nm (44 ftlb.)
G15238013Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front bumper
Screw for pre-assembly of front bumper on front end Item 2 Tightening torque 8 Nm (6 ftlb.)
G15238014Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front bumper
Screw securing adjusting element to front bumper Item 1 Tightening torque 8 Nm (6 ftlb.)

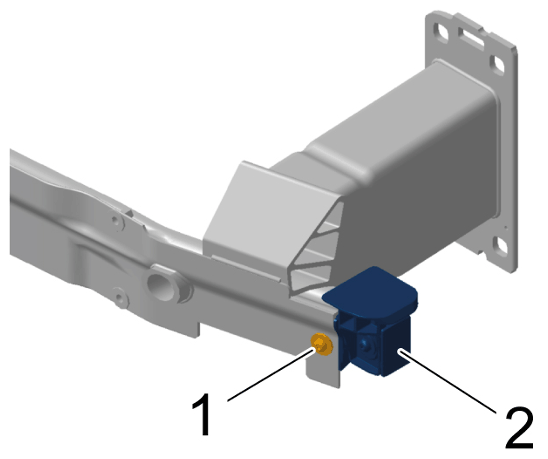

G15238015Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Pedestrian protection sensor to front apron Item 1 Tightening torque 6 Nm (4.5 ftlb.)

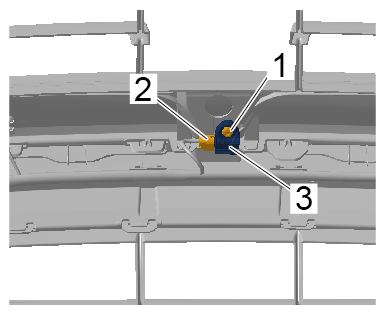

G15238016Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pedestrian protection sensor
Screws securing rear bumper to retaining frame Item 1 Tightening torque 2, 5 Nm (1.5 ftlb.)

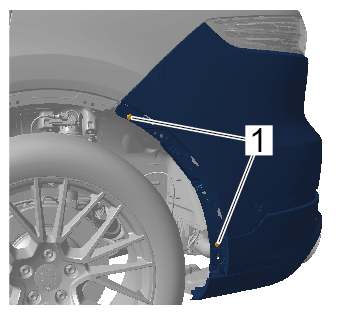

G15238017Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear bumper to retaining frame
Screws securing heat shield to rear bumper Item 2 Tightening torque 3, 5 Nm (2.2 ftlb.)

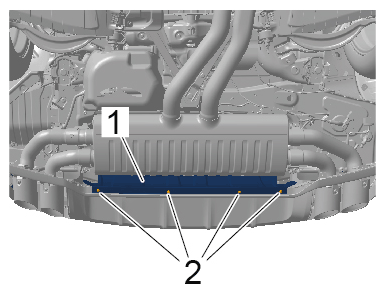

G15238018Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing heat shield to rear bumper

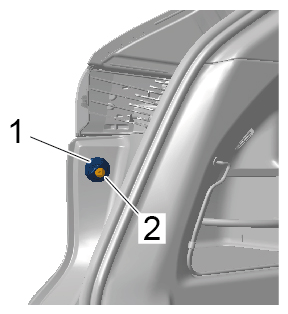

Screw securing anchor block tailgate to rear bumper Item 2 Tightening torque 10 Nm (7.4 ftlb.)
G15238019Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing tailgate anchor block to rear bumper
Screw securing rear bumper to frame for light Item 1 Tightening torque 2, 5 Nm (1.5 ftlb.)

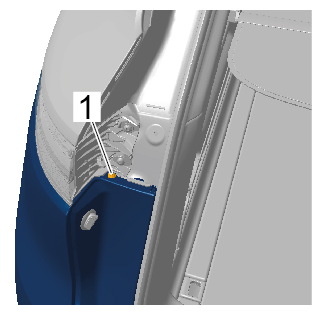

G15238020Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing rear bumper to frame for light

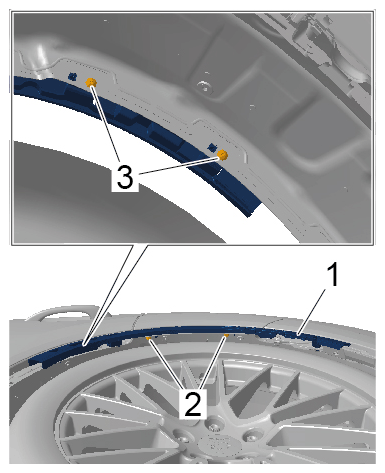

Screws on mounting for rear wheel cover Item 2, 3 Tightening torque 1.5 Nm (1.1 ftlb.)
G15238021Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on mounting for rear wheel cover
Screws securing rear trim element to rear bumper Item 1 Tightening torque 2, 3 Nm (1.5 ftlb.)

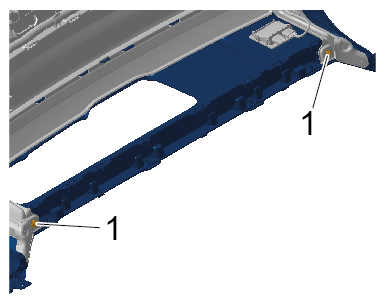

G15238022Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear trim element to rear bumper
Rear trim element on rear bumper Item 1 Tightening torque 3, 5 Nm (2.2 ftlb.)

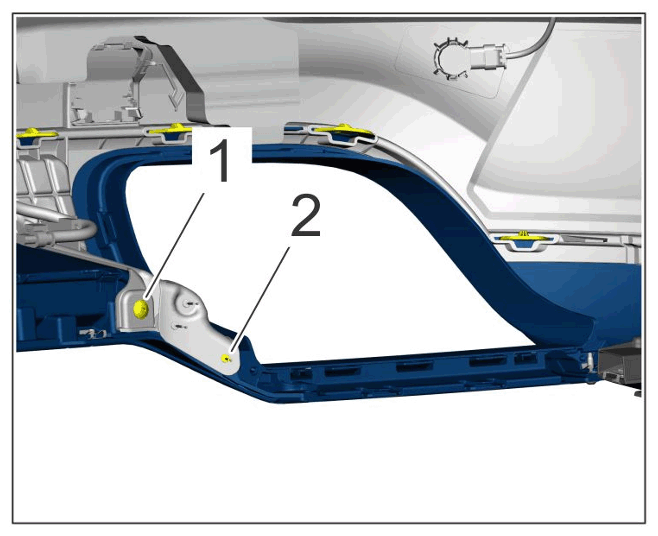

G15238023Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear apron
Rear trim element (Sport Design package) on rear bumper Item 1 Tightening torque 3, 5 Nm (2.2 ftlb.)

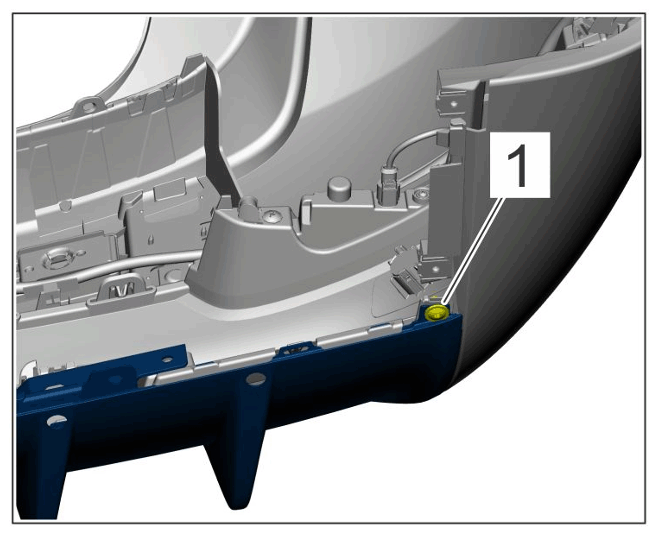

G15238024Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for rear apron
Rear trim element (trim strip) to rear rear trim element Item 1 Tightening torque 3, 5 Nm (2.2 ftlb.)

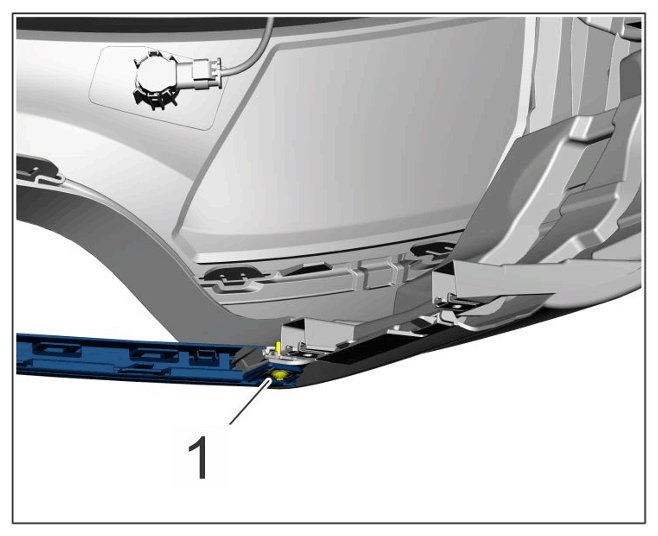

G15238025Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim strip
Screws for retaining strip, side Item 1 Tightening torque 3 Nm (2 ftlb.)
G15238026Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Nuts for retaining strip on tail light Item 1 Tightening torque 4 Nm (3 ftlb.)

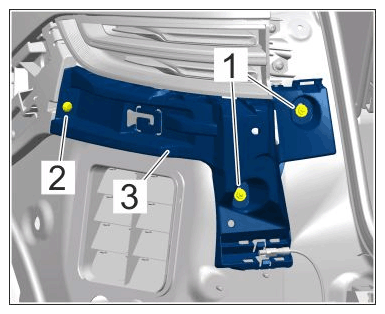

G15238027Courtesy of PORSCHE CARS NORTH AMERICA, INC.

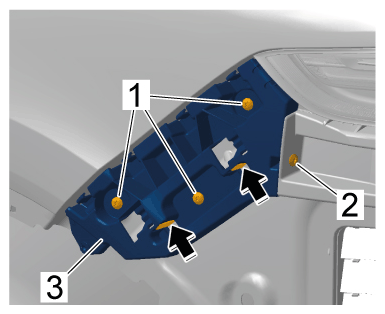

Retaining strip on tail light
Screw for retaining strip on tail light Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15238028Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip on tail light

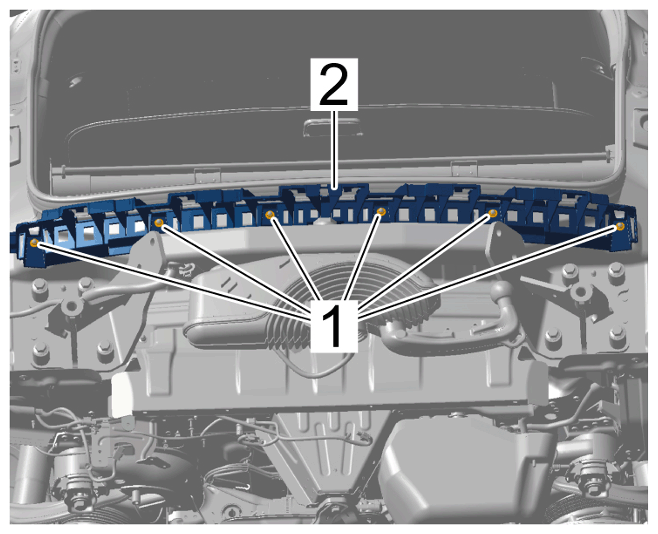

Nuts on retaining strip, center Item 1 Tightening torque 4 Nm (3 ftlb.)
G15238029Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Retaining strip to tail light Item Z Gap dimension 8 mm
G15238030G15238031Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

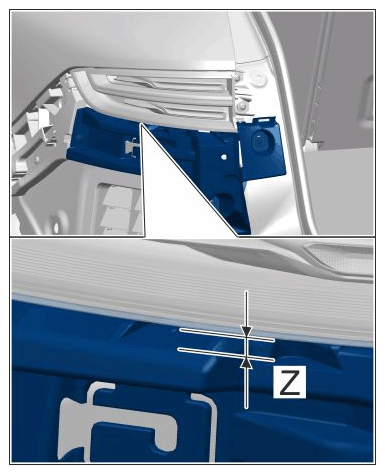

Gap from retaining strip to tail light
G15238030G15238031Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Gap from retaining strip to tail light

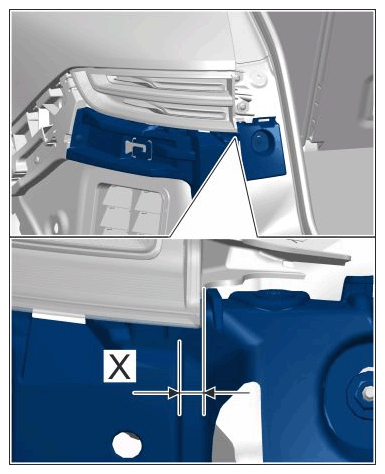

Retaining strip to tail light Item X Gap dimension 6 mm
G15238032Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap from retaining strip to tail light
Screws on retaining strip   Tightening torque 3 Nm (2 ftlb.)
Screws on retaining strip for tail light   Tightening torque 4 Nm (3 ftlb.)
Screw on retaining strip for tail light (To side retaining strip) Tightening torque 2.5 Nm (1.75 ftlb.)
Nuts on center retaining strip   Tightening torque 4 Nm (3 ftlb.)
Retaining strip to tail light Outer Gap dimension 8 mm
Retaining strip to tail light Inner Gap dimension 6 mm
Retaining strip to tail light Side Gap dimension 6 mm
All airbag sensors Item 3 Tightening torque 8 Nm (6 ftlb.)

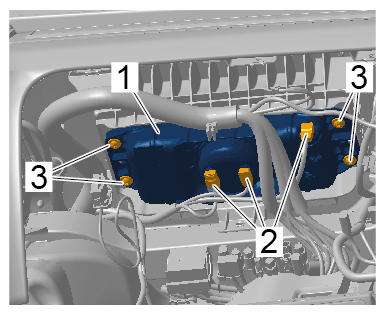

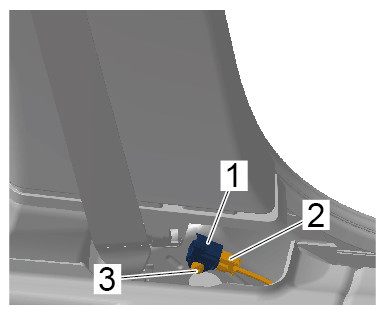

G15238033Courtesy of PORSCHE CARS NORTH AMERICA, INC.

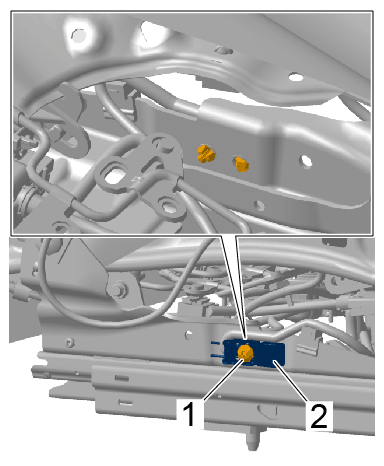

Airbag sensors
Fastening screw securing seat position sensor to seat position Item 1 Tightening torque 1.1 Nm (0.6 ftlb.)
G15238034Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

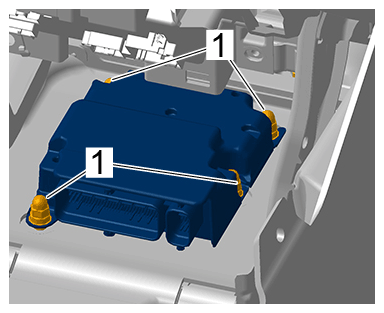

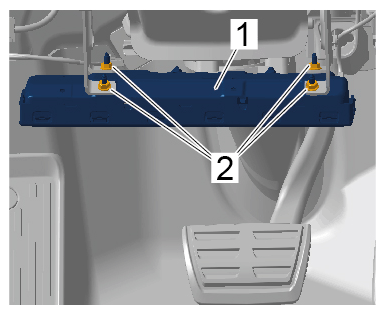

Nuts on airbag triggering unit Item 1 Tightening torque 9 Nm (6.5 ftlb.)
G15238035Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Front side airbag to front seat Item 1 Tightening torque 8 Nm (6 ftlb.)

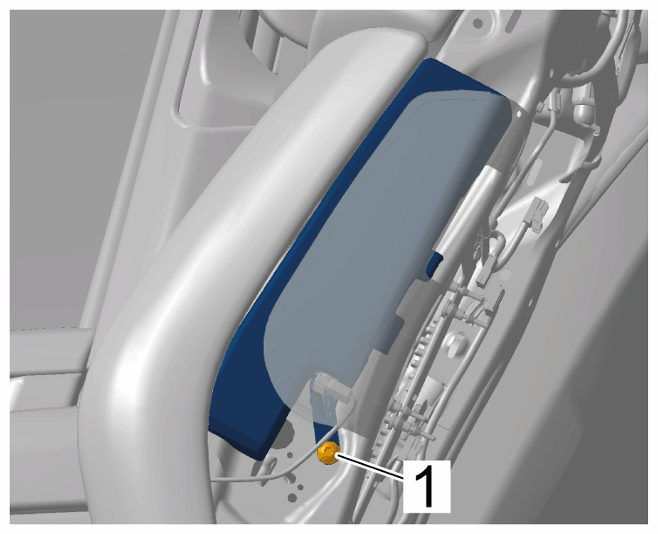

G15238036Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for front side airbag
Rear side airbag to rear seat Item 1 Tightening torque 8 Nm (6 ftlb.)

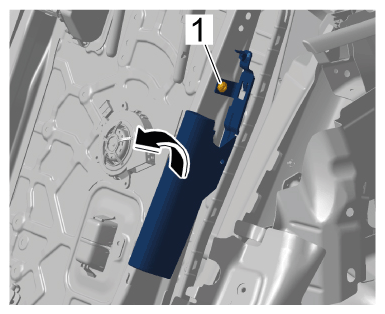

G15238037Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear side airbag

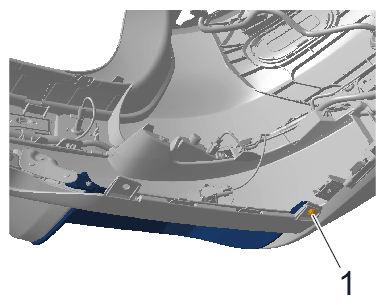

Trim frame for tailpipe cover on rear bumper Item 1 Tightening torque 3.5 Nm (2.6 ftlb.)
G15238038Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

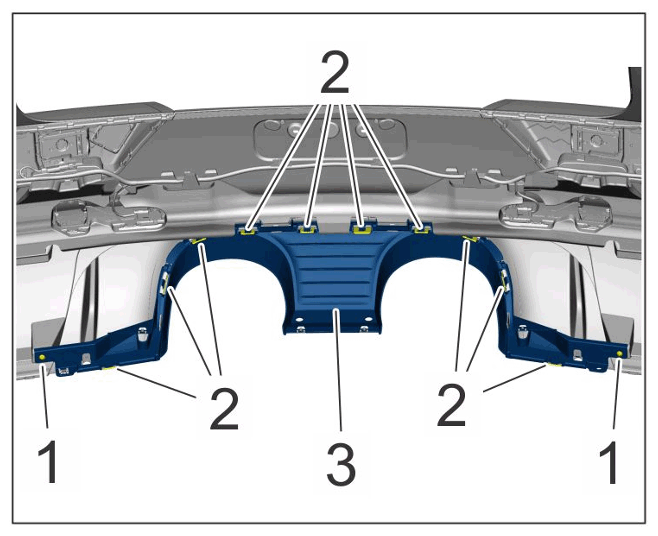

Trim frame for tailpipe cover (Sport Design package) on rear bumper Item 1 Tightening torque 3.5 Nm (2.6 ftlb.)
G15238039Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim frame for tailpipe cover

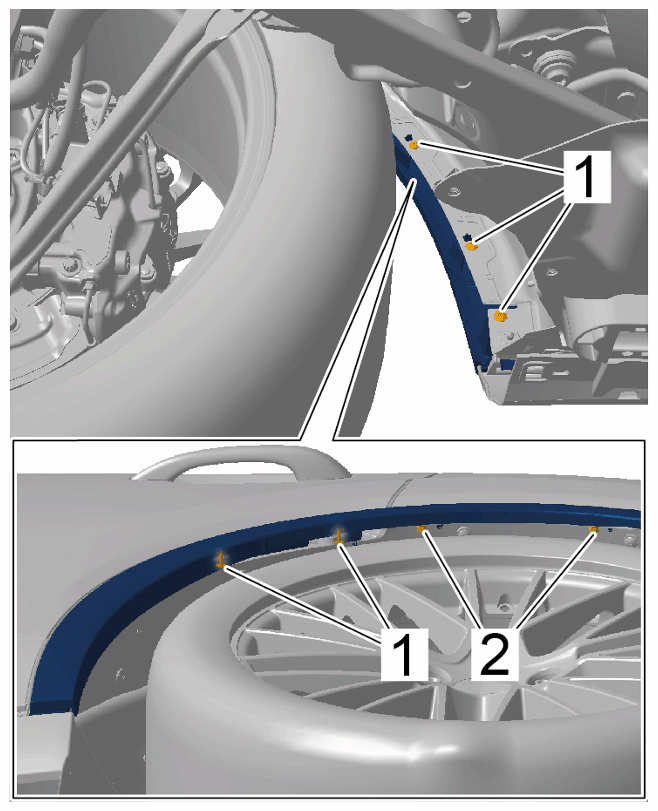

Screw for rear wheel cover Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15238040Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for rear wheel cover
Nut for rear wheel cover Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15238041Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for rear wheel cover

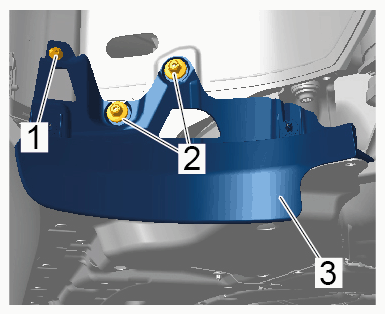

Nut securing lower part of wheel housing liner to wheel cover Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15238042Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for wheel cover
Screw securing lower part of wheel housing liner to rear wheel cover Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15238043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for wheel cover

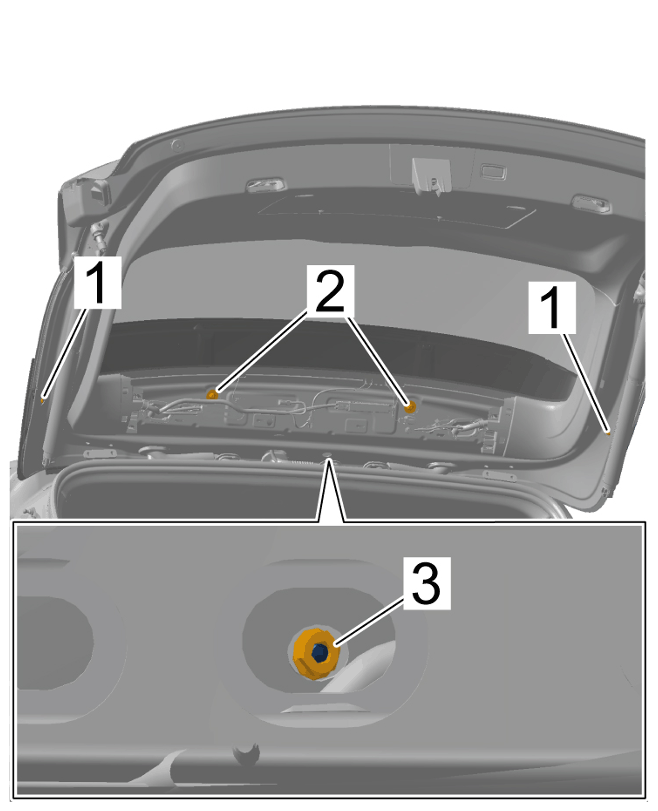

Nut securing rear spoiler to rear lid Item 3 Tightening torque 6 Nm (4.5 ftlb.)
G15238044Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on rear spoiler
Screws securing rear spoiler to rear lid Item 1, 2 Tightening torque 6 Nm (4.5 ftlb.)
G15238045Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear spoiler
Screws for rear spoiler blade (Turbo) Item 1 Tightening torque 8 Nm (6 ftlb.)
G15238046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

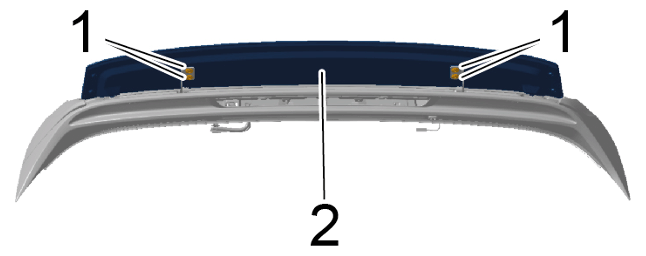

Rear spoiler blade
Screws for spoiler drive unit (Turbo) Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15238047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive unit

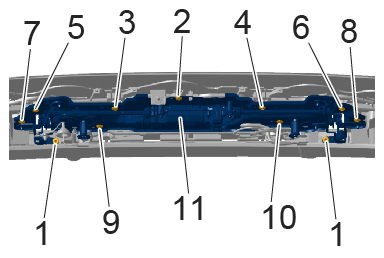

Screws for spoiler drive unit (Turbo) Item 2 to 10 Tightening torque 8 Nm (6 ftlb.)
G15238048Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive unit

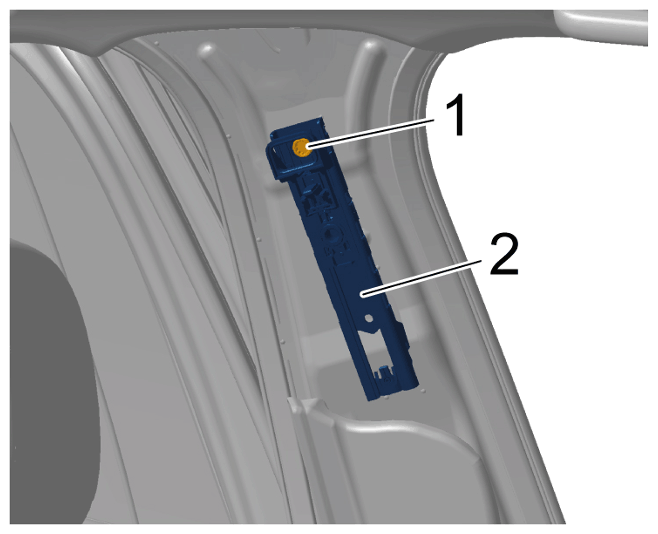

Screw for adjustment fitting Item 1 Tightening torque 20 Nm (15 ftlb.)
G15238049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for adjustment fitting
Screw for belt retractor Item 3 Tightening torque 40 Nm (30 ftlb.)

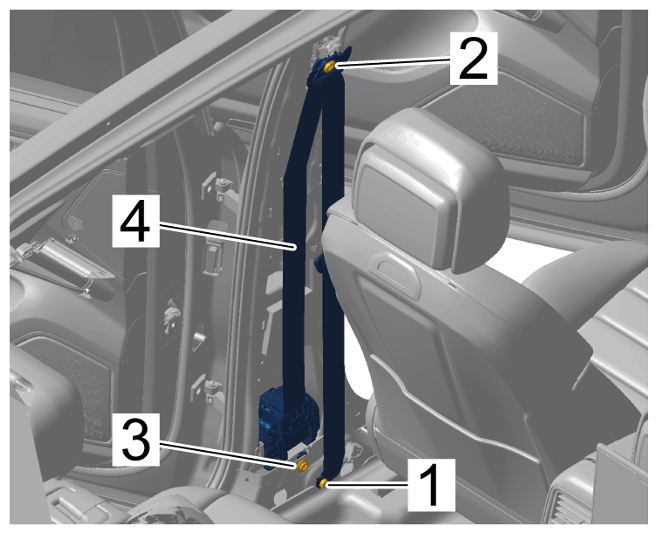

G15238050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw for belt deflector Item 2 Tightening torque 40 Nm (30 ftlb.)
G15238051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing front three point belt to bodyshell Item 1 Tightening torque 40 Nm (30 ftlb.)

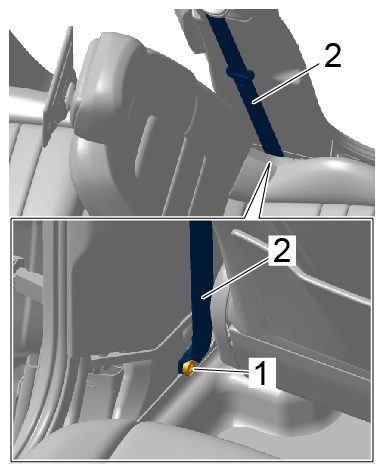

G15238052Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt fitting
Screw securing front seat-belt buckle to front seat Item 3 Tightening torque 40 Nm (30 ftlb.)

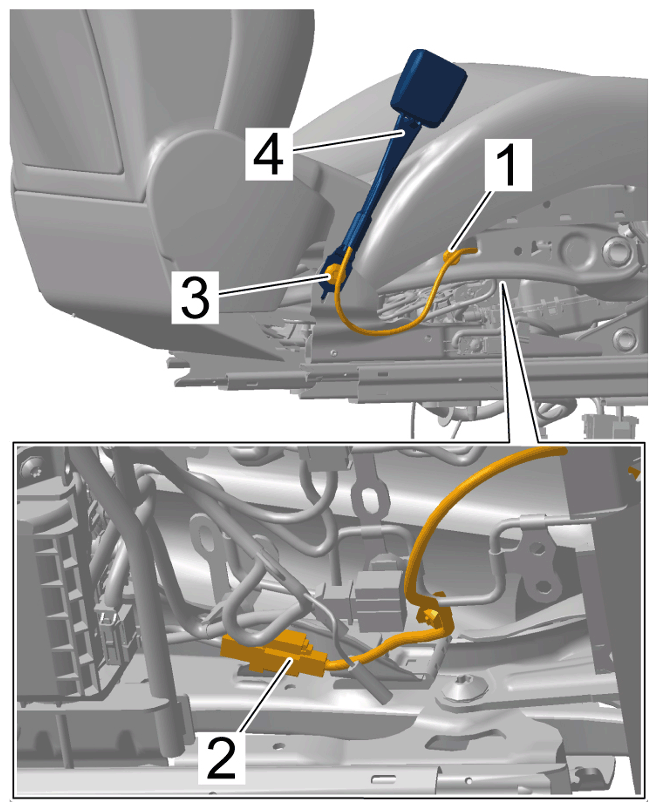

G15238053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front seat-belt buckle
Front wheel cover to wing Item 1 Tightening torque 1.5 Nm (1 ftlb.)

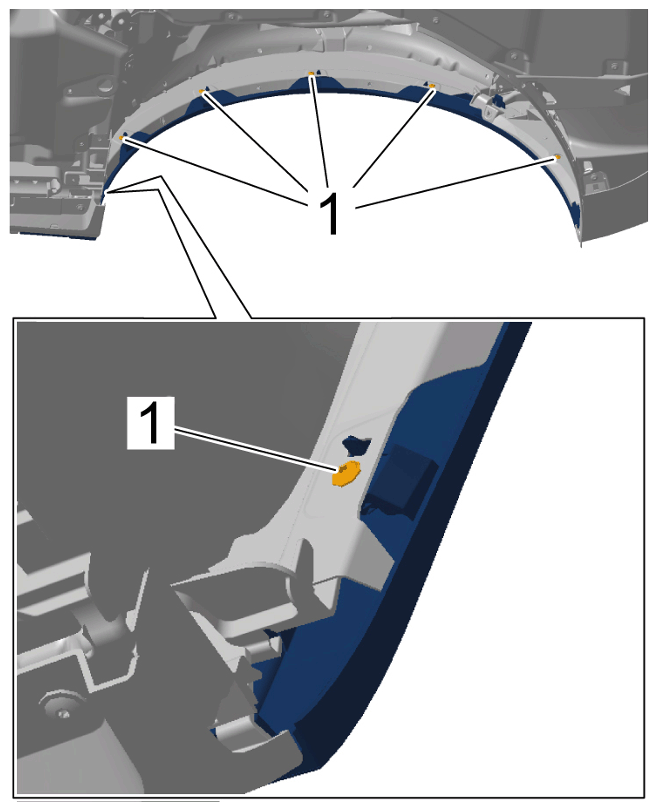

G15238054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wheel cover
Screw for belt retractor Item 1 Tightening torque 40 Nm (30 ftlb.)

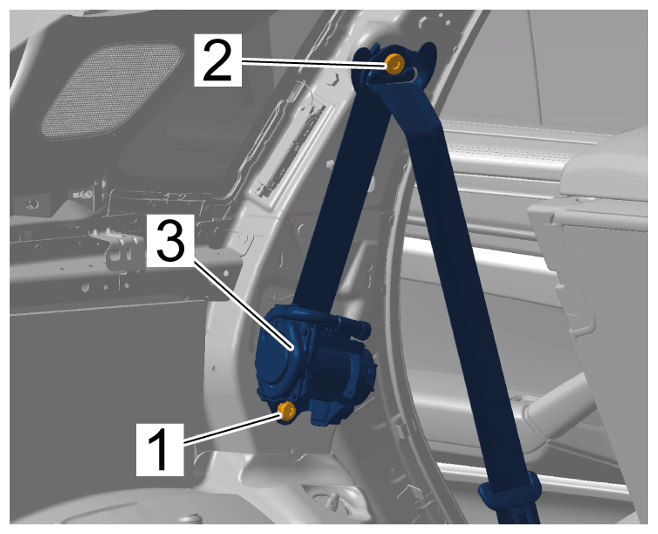

G15238055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for deflection roller
Screw for deflection roller Item 2 Tightening torque 40 Nm (30 ftlb.)
G15238056Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for deflection roller

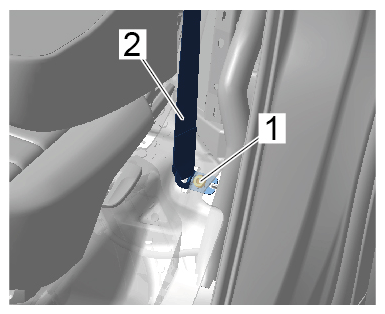

Screw for rear three-point belt Item 1 Tightening torque 40 Nm (30 ftlb.)
G15238057Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt fitting
Rear seat-belt buckle to rear seat frame Item 1 Tightening torque 40 Nm (30 ftlb.)

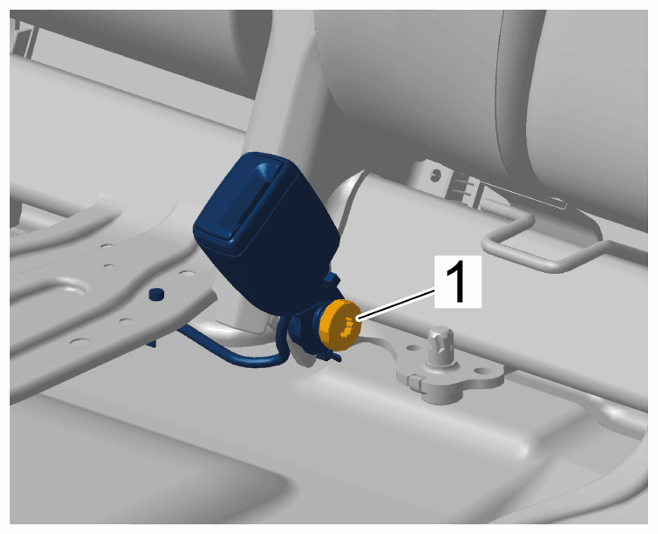

G15238058Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Screw securing seat belt mount for seat belt on middle seat to seat frame Item 1 Tightening torque 40 Nm (30 ftlb.)

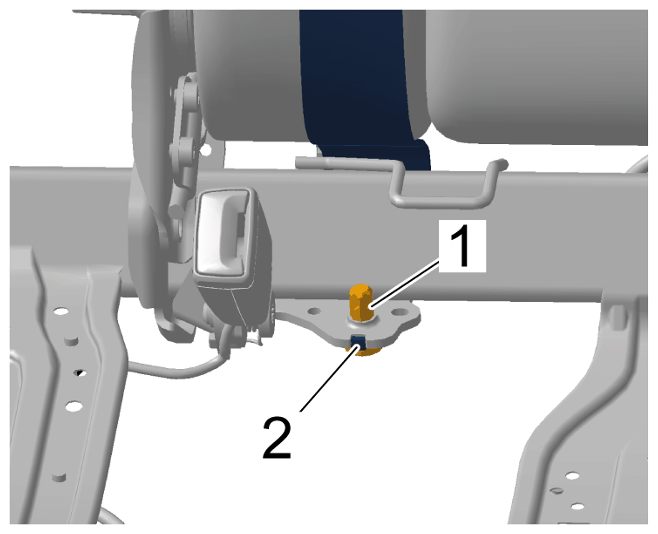

G15238059Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt fitting
Nut on belt retractor for seat belt on middle seat to seat frame   Tightening torque 40 Nm (30 ftlb.)
G15238060Courtesy of PORSCHE CARS NORTH AMERICA, INC.

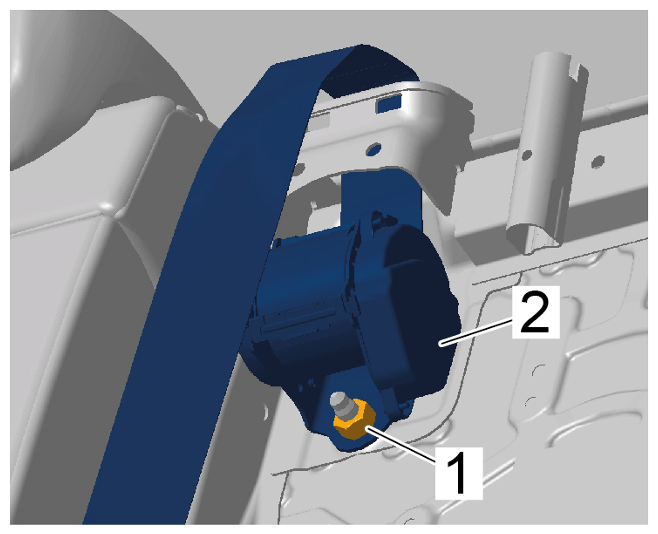

Nut on belt retractor for rear three-point belt on middle seat
Screws securing glove box to instrument panel Item 1 Tightening torque 3 Nm (2 ftlb.)

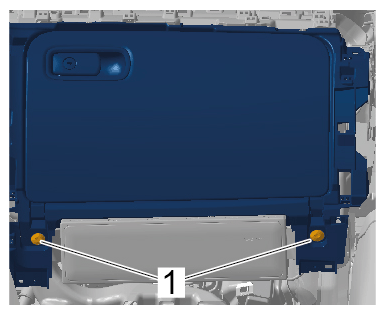

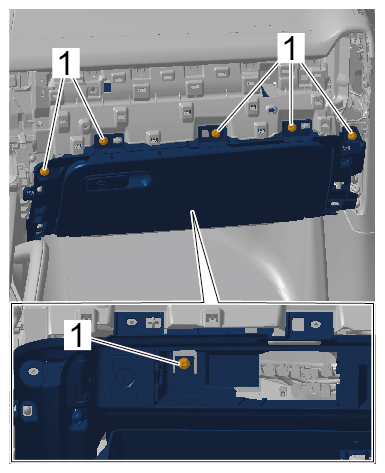

G15238061G15238062Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Screws for glove box
G15238061G15238062Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC.

Screws for glove box
Nuts securing rear center console to bracket Item 1 Tightening torque 20 Nm (15 ftlb.)

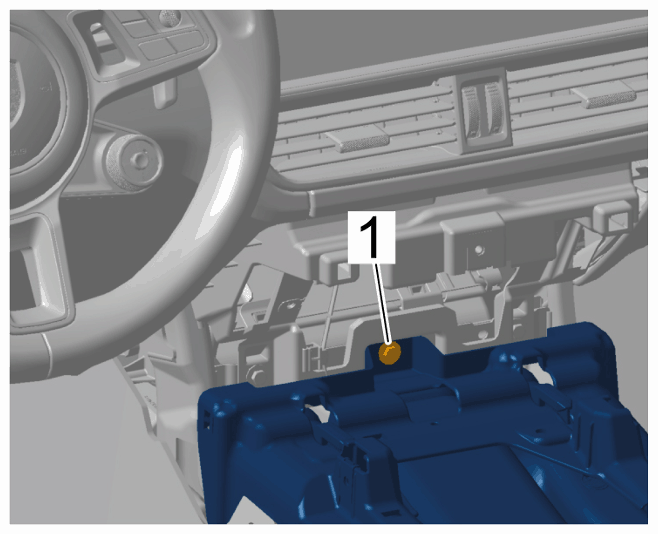

Screw securing front center console to instrument panel Item 1 Tightening torque 4 Nm (3 ftlb.)
G15238063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

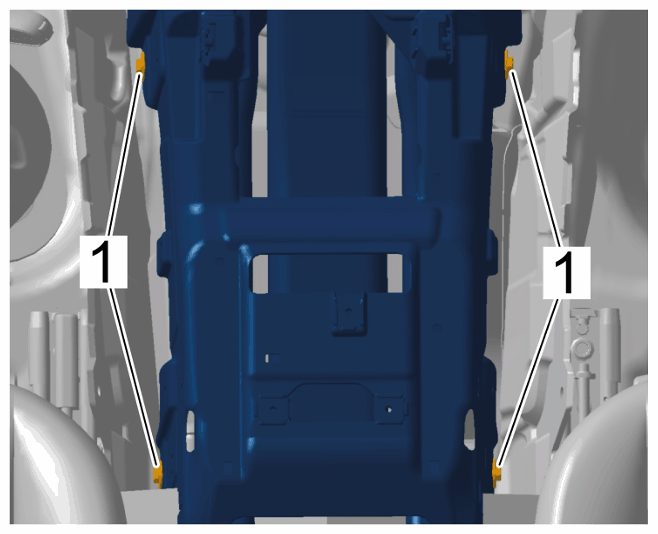

Screws securing center console to bracket Item 1 Tightening torque 8 Nm (6 ftlb.)
G15238064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws for center armrest cover Item 2 Tightening torque 20 Nm (15 ftlb.)

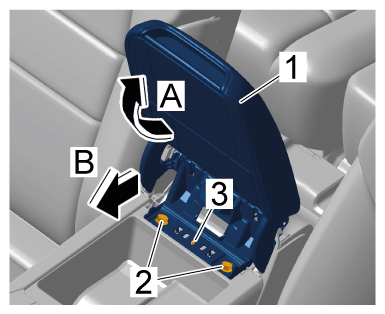

G15238065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for cover on tray

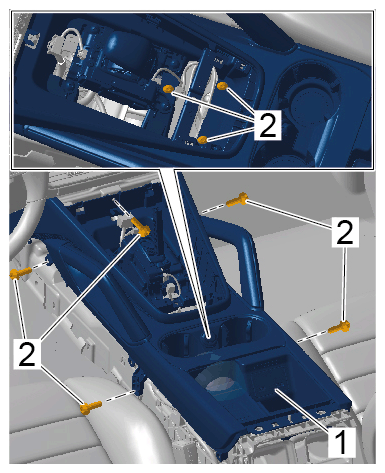

Screws securing upper part of center console to center console Item 2 Tightening torque 8 Nm (6 ftlb.)
G15238066Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for upper part of center console

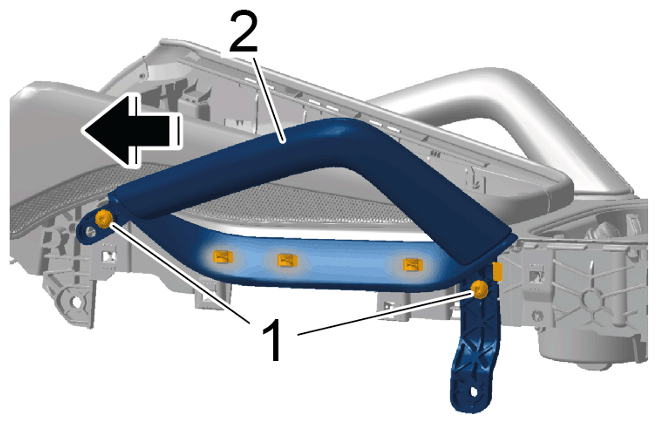

Screws securing grab handle to upper part of center console Item 1 Tightening torque 8 Nm (6 ftlb.)
G15238067Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grab handles

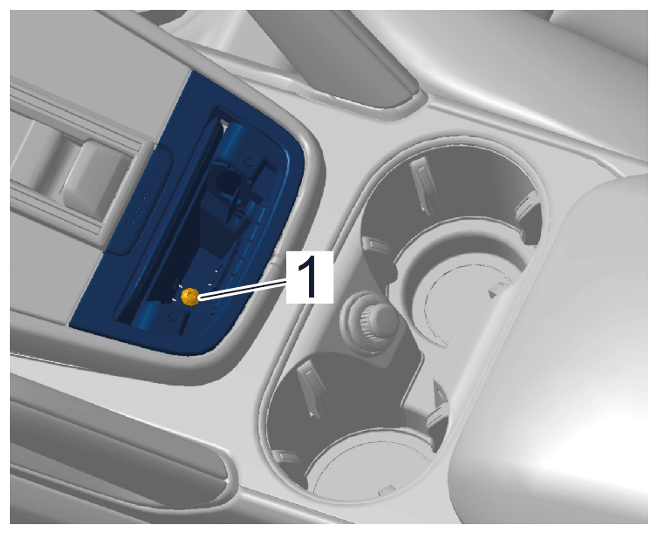

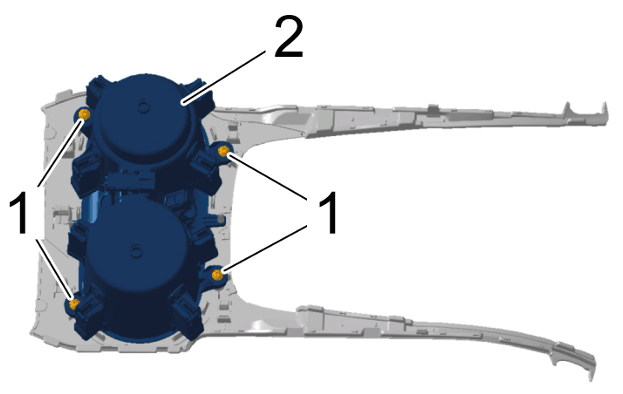

Screws for cupholder Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15238068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

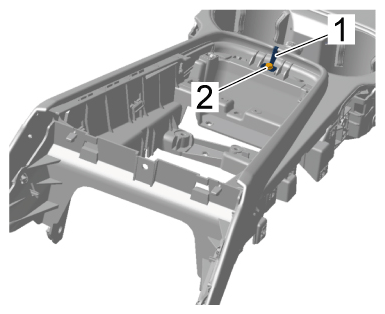

Screw securing trim element to center console Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15238069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim element
Screw securing ashtray to upper part of center console Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15238070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

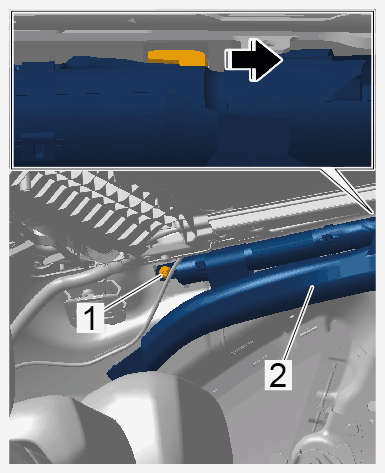

Head airbag Item 1 Tightening torque 8 Nm (6 ftlb.)
G15238071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for head airbag
Fastening nuts for knee airbag on driver side Item 2 Tightening torque 8 Nm (6 ftlb.)
G15238072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on knee airbag
Passenger's airbag unit to instrument panel Item 3 Tightening torque 8 Nm (6 ftlb.)
G15238073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Passenger's airbag unit

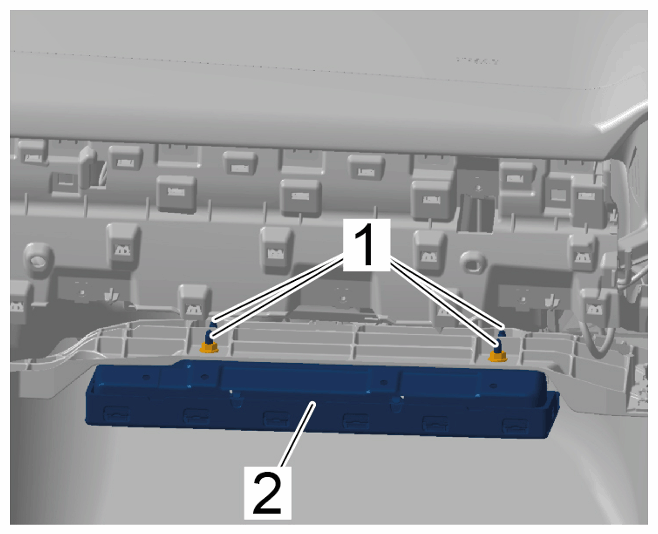

Fastening nuts for knee airbag on passenger side Item 1 Tightening torque 8 Nm (6 ftlb.)
G15238074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts

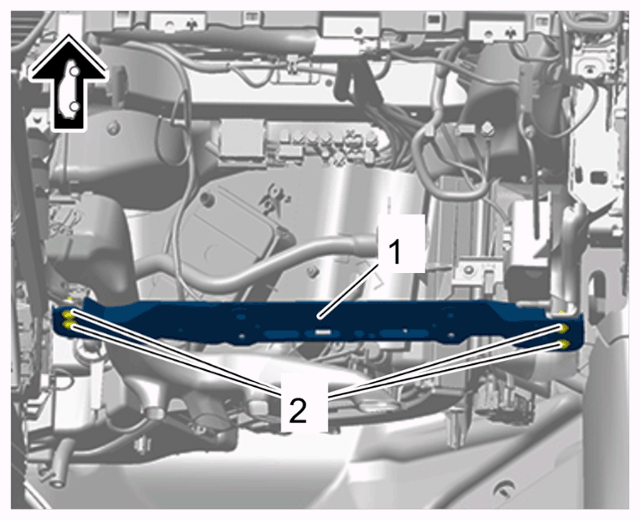

Fastening screws securing support for knee airbag on passenger's side to dashboard bracket Item 2 Tightening torque 5 Nm (3.5 ftlb.)
G15238075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support for knee airbag on passenger's side

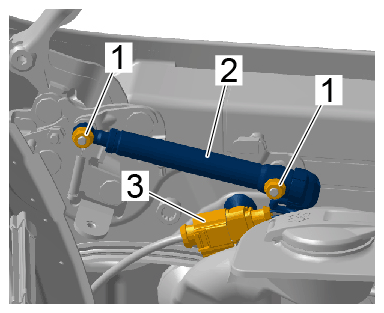

Nut securing ignition module for front lid (pedestrian protection) to front lid hinge Item 1 Tightening torque 6.5 Nm (4.75 ftlb.)
G15238076Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ignition module for front lid (pedestrian protection)

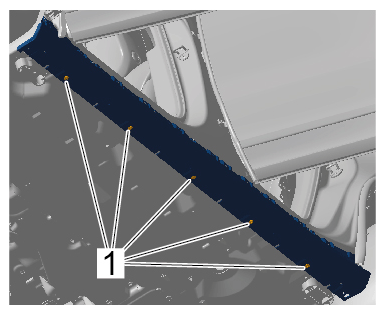

Sill cover to underbody Item 1 Tightening torque 3 Nm (2 ftlb.)
G15238077Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on underbody

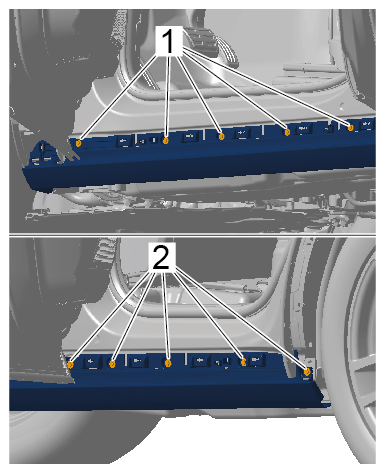

Sill cover to bodyshell Items 1 and 2 Tightening torque 6 Nm (4.5 ftlb.)
G15238078Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

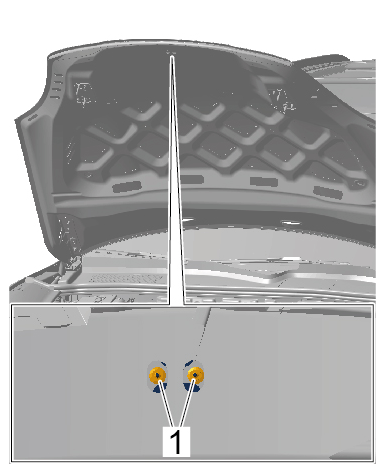

Logo on front lid Item 1 Tightening torque 1.3 Nm (0.8 ftlb.)
G15238079Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

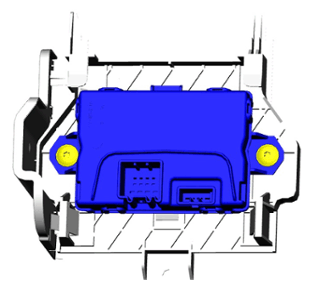

Screws for control unit for rear spoiler to holder for rear spoiler control unit   tightening torque 2 Nm (1.5 ftlb.)
G15238080Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for rear spoiler

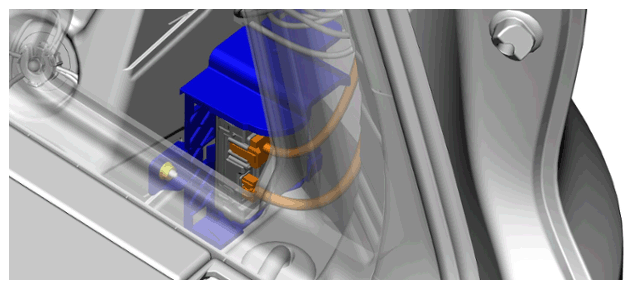

Nut used to support control unit for rear spoiler on body   torque 3.2 Nm (2.5 ftlb.)
G15238081Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on holder for rear spoiler control unit

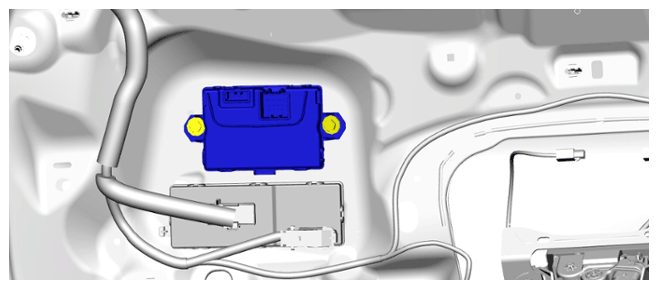

Screws securing rear spoiler control unit to rear lid   Tightening torque 3.7 Nm (2.7 ftlb.)
G15238082Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear spoiler control unit

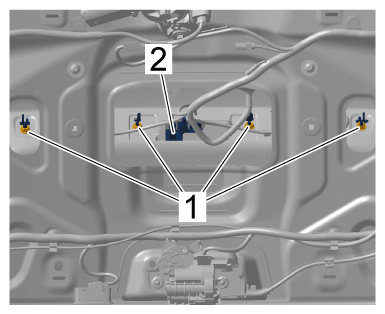

Nuts for handle strip Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15238083Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

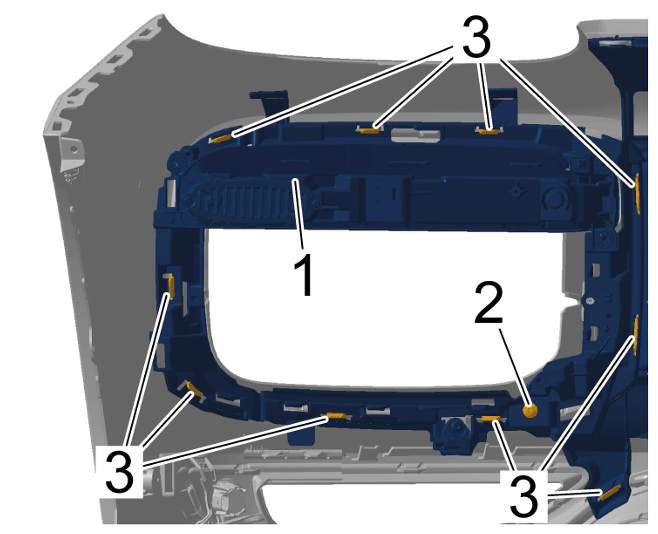

Screw securing radiator grille to front apron Item 2 Tightening torque 2 Nm (1.5 ftlb.)
G15238084Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

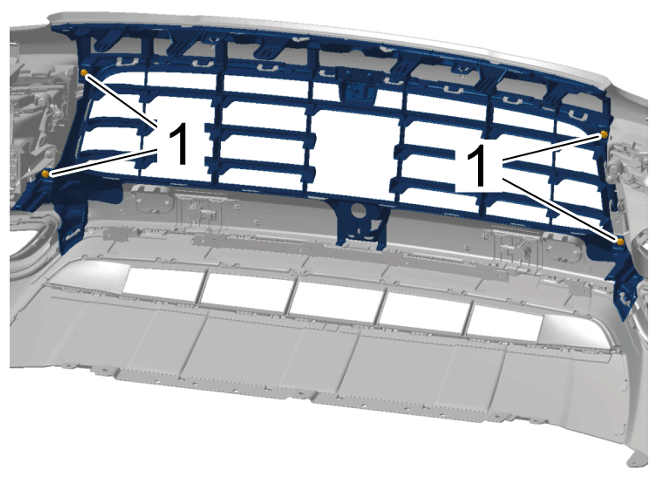

Screw securing radiator grille to front apron Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15238085Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

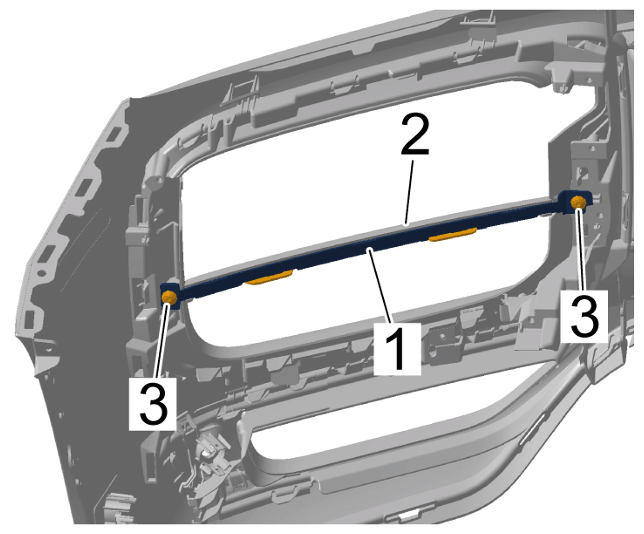

Screws securing vanes to front apron Item 3 Tightening torque 2 Nm (1.5 ftlb.)
G15238086Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side vane

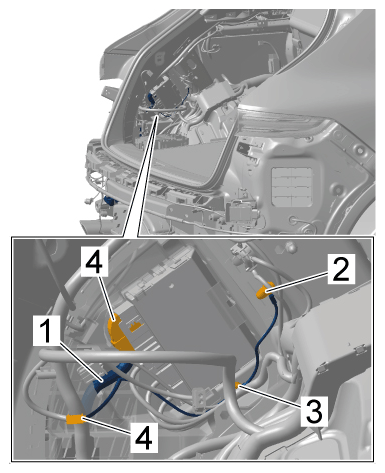

Nut on ground point for wire harness for trailer hitch Item 2 Tightening torque 9 Nm (6.5 ftlb.)
G15238087Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness in side panel

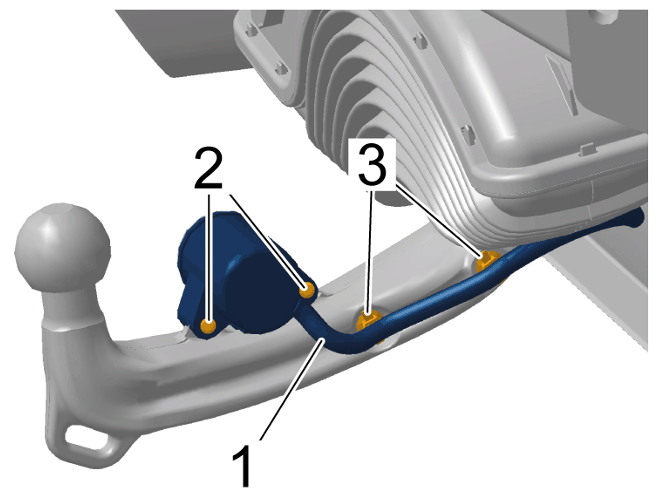

Plug socket for trailer hitch to trailer hitch Item 2 Tightening torque 5.5 Nm (4 ftlb.)
G15238088Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Trailer hitch motor to trailer hitch Item 2 Tightening torque 55 Nm (41 ftlb.)
G15238089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

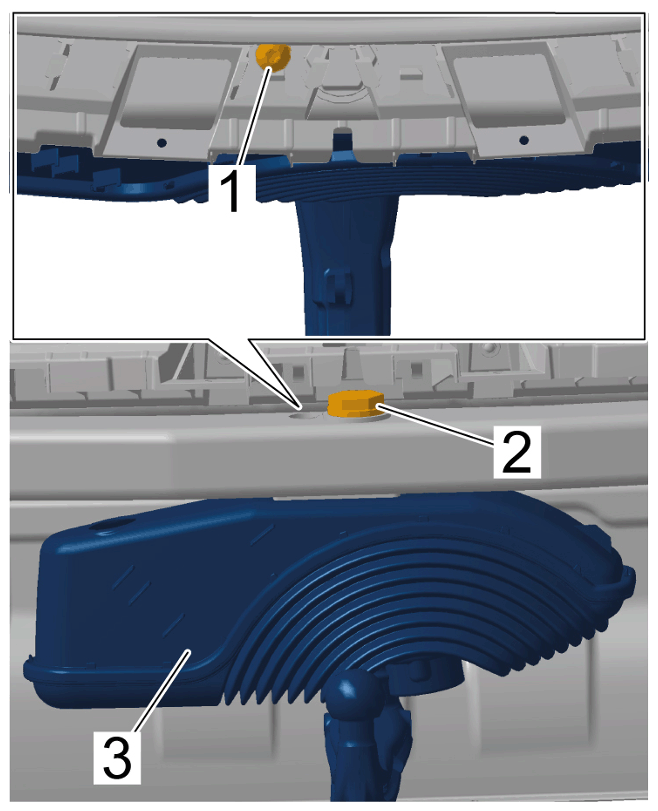

Trailer hitch motor to trailer hitch Item 1 Tightening torque 55 Nm (41 ftlb.)
G15238090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

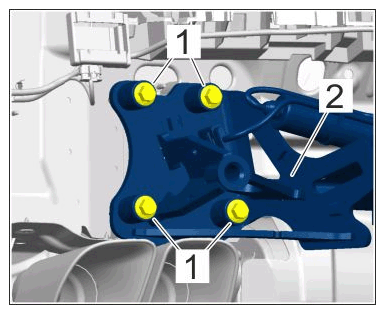

Screws securing trailer hitch to body Item 1 Tightening torque 110 Nm (81.5 ftlb.)
G15238091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for trailer hitch

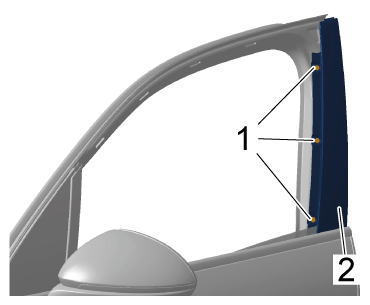

Screws securing cover for front door (B-pillar) to door Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)
G15238092Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on cover for front door (B-pillar)

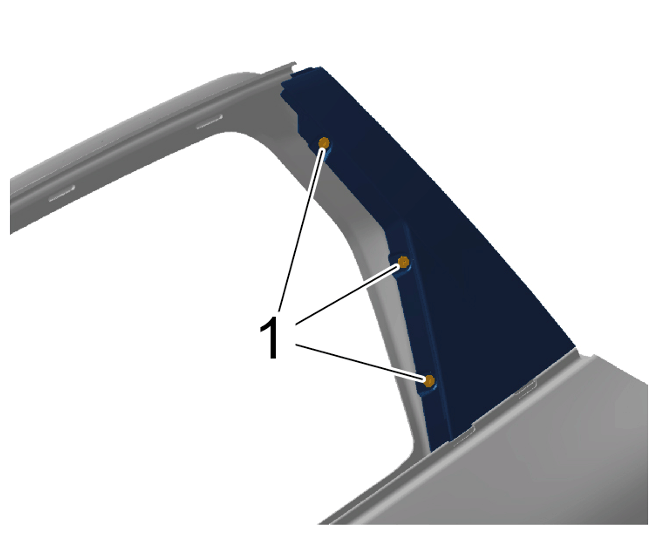

Screws securing cover (C-pillar) to door Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)
G15238093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

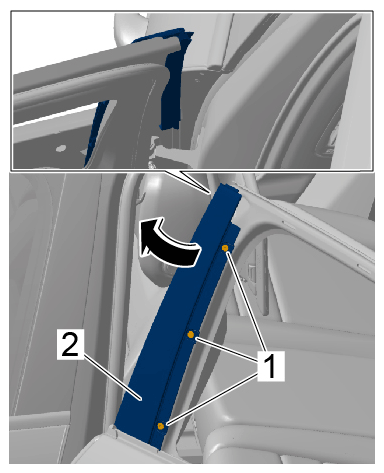

Screws securing cover (B-pillar) to door Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)
G15238094Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws for sunroof motor Item 2 Tightening torque 3 Nm (2 ftlb.)
G15238095Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

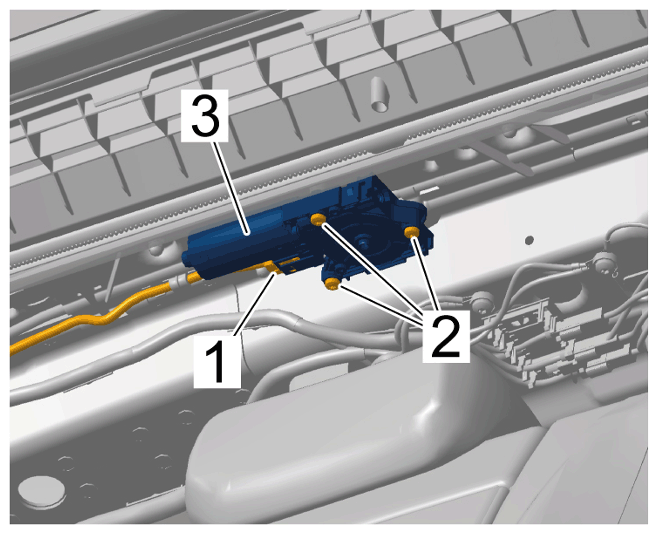

Screws securing sun protection motor to holder Item 2 Tightening torque 3 Nm (2 ftlb.)
G15238096Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing sun protection motor to holder

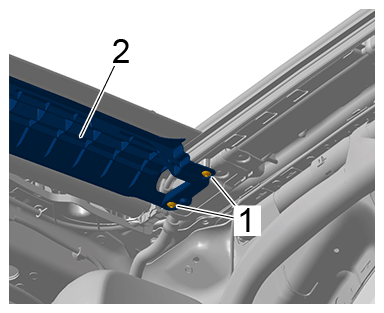

Screws securing cross member to guide rail Item 1 Tightening torque 3 Nm (2 ftlb.)
G15238097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing cross member to guide rail

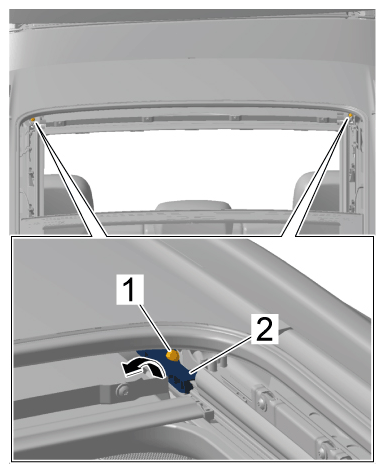

Screw securing guide shoe to guide rail Item 1 Tightening torque 3 Nm (2 ftlb.)
G15238098Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide for sun blind rail
Screws for sun blind   Tightening torque 3 Nm (2 ftlb.)
Screws for sun blind motor   Tightening torque 6 Nm (4.5 ftlb.)
Screws on frame for roof sun blind   Tightening torque 6 Nm (4.5 ftlb.)
Screws on SDARS antenna holder   Tightening torque 6 Nm (4.5 ftlb.)

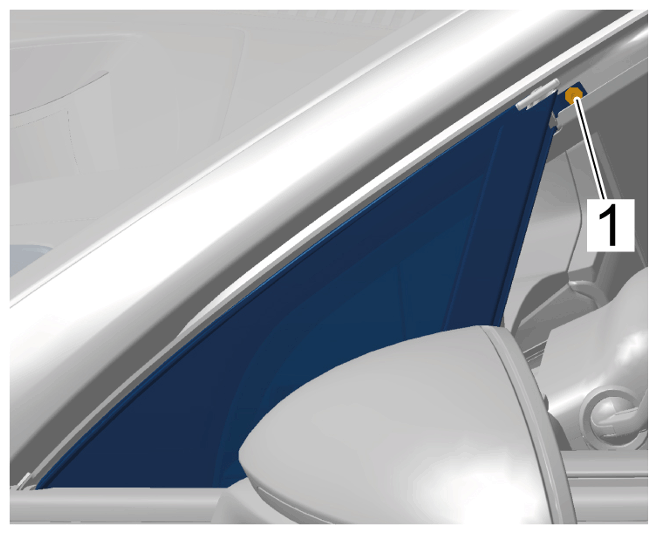

Front corner outer window pane Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)
G15238099Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer screw

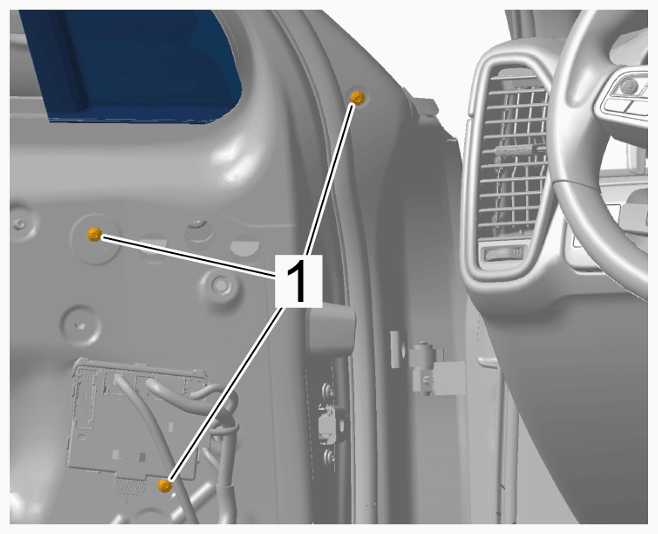

Front corner inner window pane Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)
G15238100Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner screws

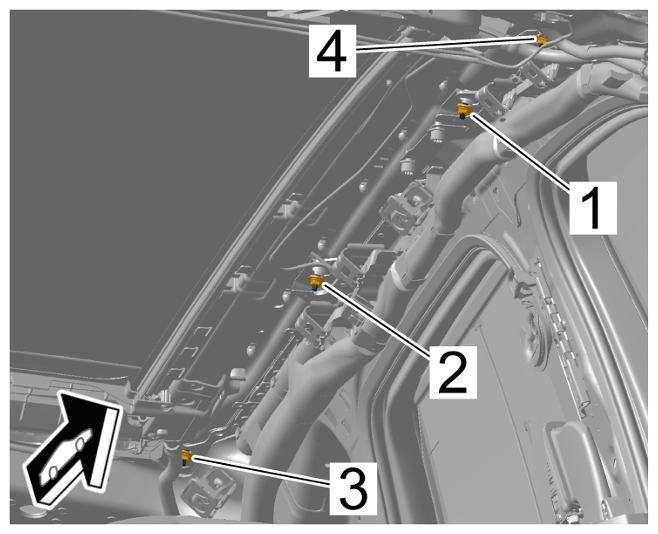

Nuts for roof rails Items 1, 2, 3, 4 Tightening torque 10 Nm (7.5 ftlb.)
G15238101Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

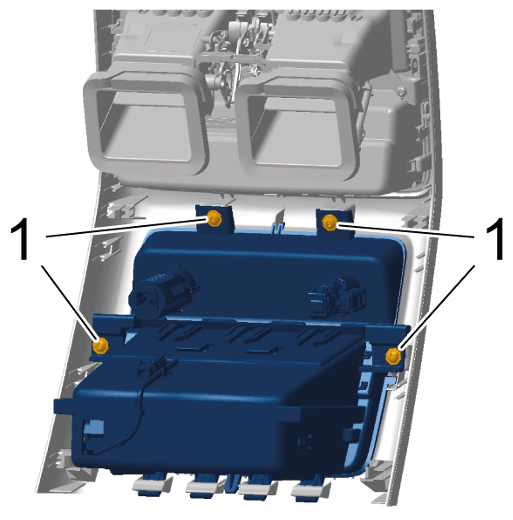

Screws for rear ashtray Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15238102Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

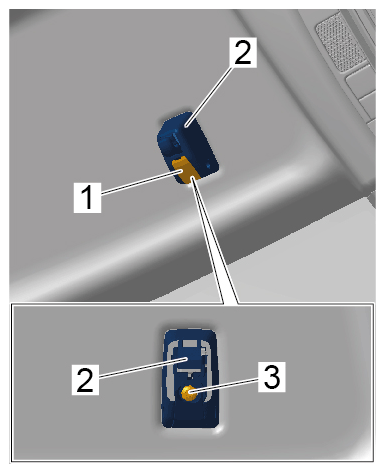

Fastening screw for sun visor bracket Item 3 Tightening torque 1.4 Nm (1 ftlb.)
G15238103Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on sun visor bracket

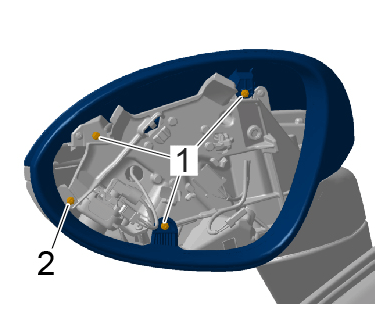

Screws on rear-view mirror housing (upper part) Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15238104Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw for rear-view mirror housing (upper part) Item 2 Tightening torque 0.9 Nm (0.7 ftlb.)
G15238105Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

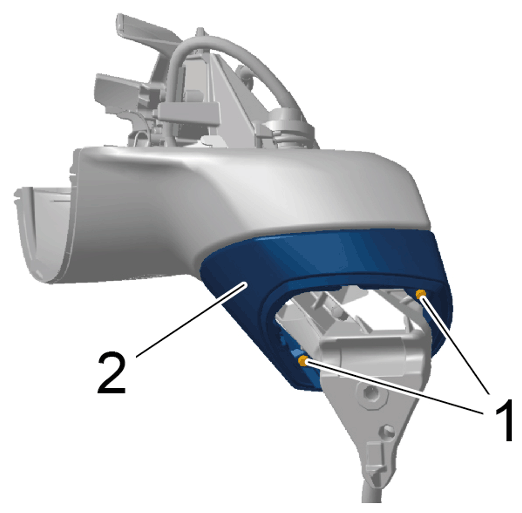

Screws on trim panel for mirror base Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15238106Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim panel for mirror base

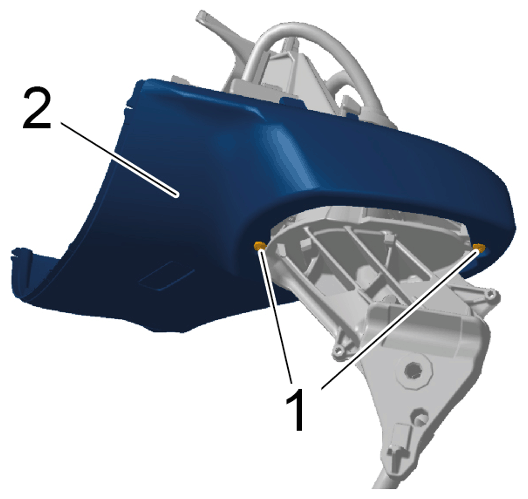

Screws for rear-view mirror housing (lower part) Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15238107Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear-view mirror housing (lower part)

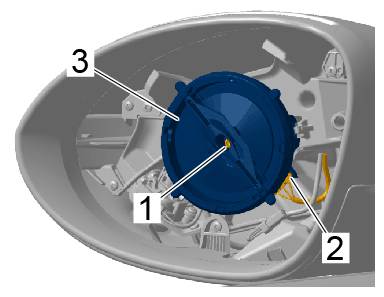

Screw for mirror adjusting motor Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15238108Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for mirror adjusting motor

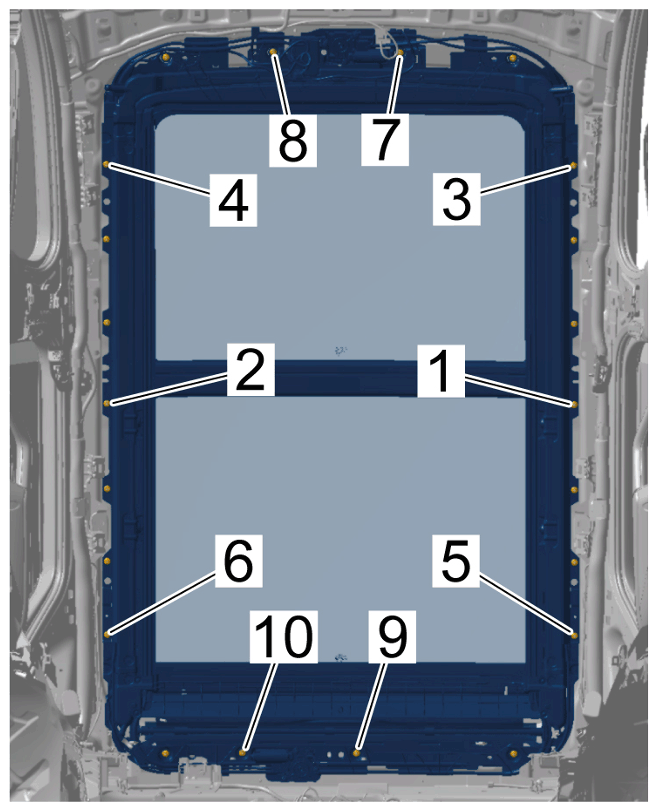

Nuts on roof assembly Item 1-10 Tightening torque 8 Nm (6 ftlb.)
G15238109Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

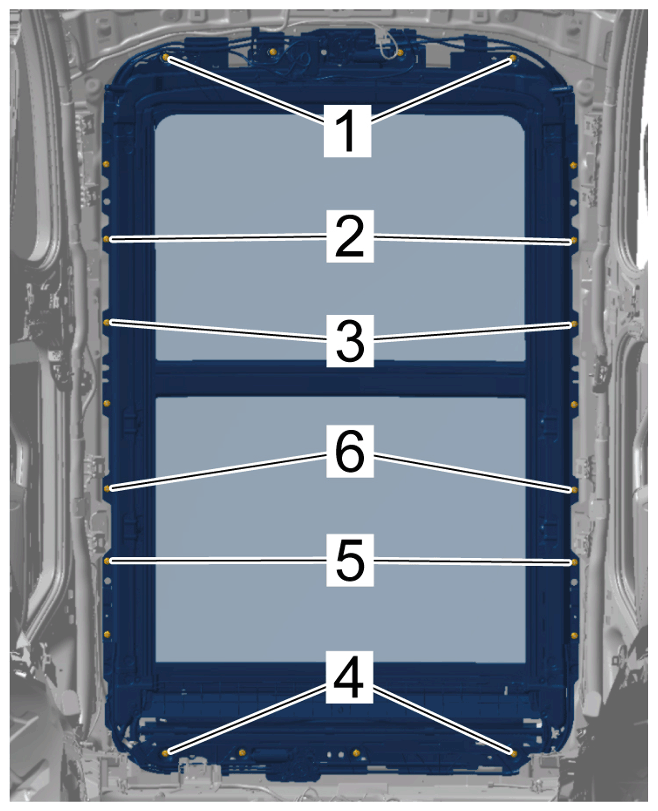

Nuts on roof assembly Item 1-6 Tightening torque 8 Nm (6 ftlb.)
G15238110Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

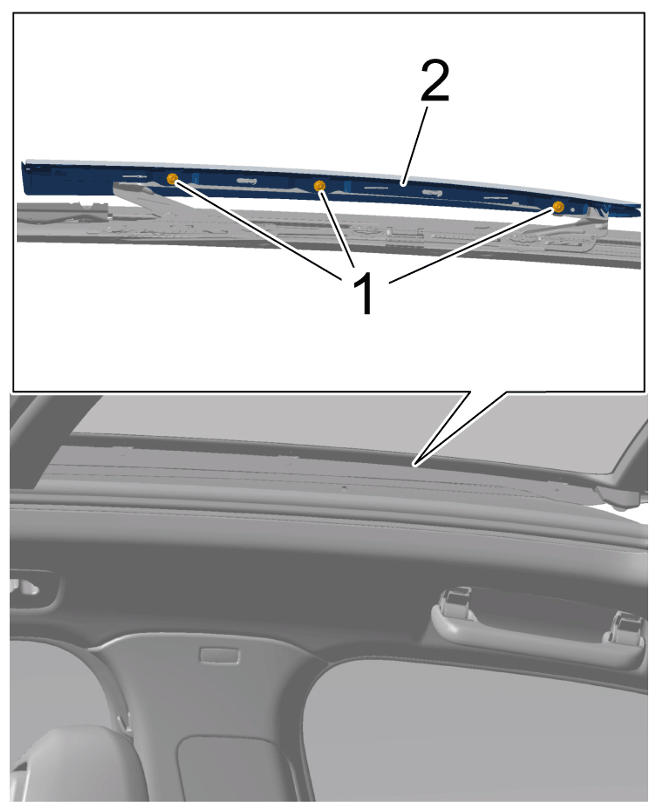

Screws for sliding-roof panel Item 1 Tightening torque 3 Nm (2 ftlb.)
G15238111Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sliding-roof panel

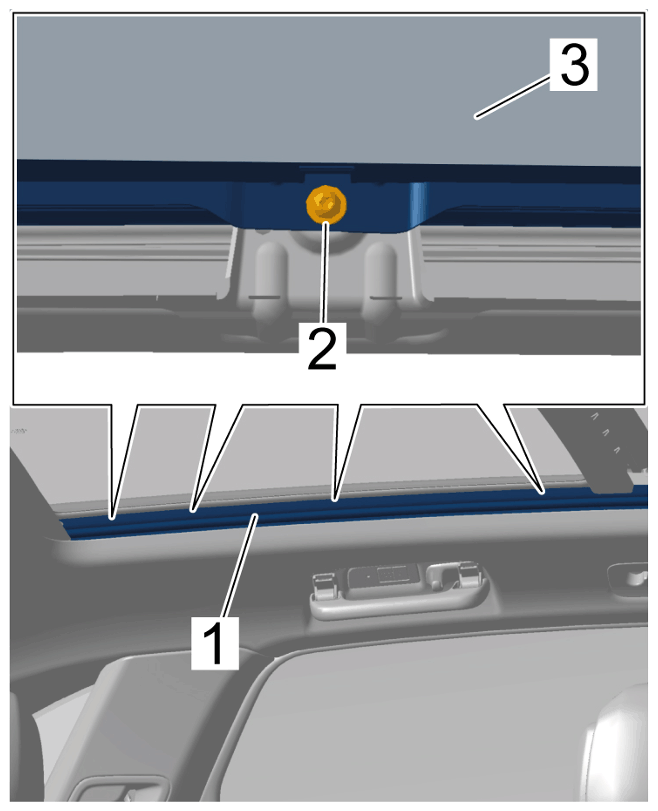

Screws for rear panoramic roof glass panel Item 2 Tightening torque 3 Nm (2 ftlb.)
G15238112Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear panoramic roof glass panel

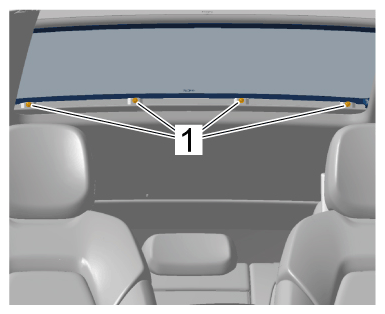

Screws securing panoramic roof glass panel to rear roof assembly Item 1 Tightening torque 3 Nm (2 ftlb.)
G15238113Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screws
scientia non olet · About LEMON Manuals
