Occupant Protection

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Head airbag	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for head airbag
Fastening nuts for knee airbag on driver side	Item 2	Tightening torque	8 Nm (6 ftlb.)

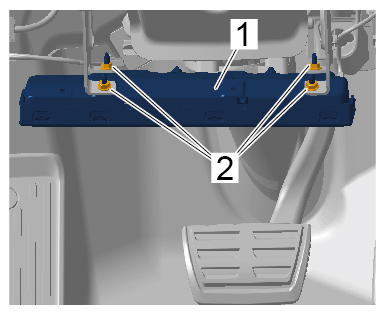

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts on knee airbag
Passenger's airbag unit to instrument panel	Item 3	Tightening torque	8 Nm (6 ftlb.)

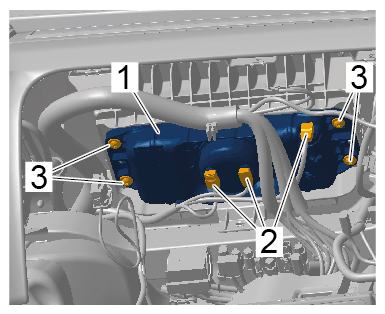

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Passenger's airbag unit
Fastening nuts for knee airbag on passenger side	Item 1	Tightening torque	8 Nm (6 ftlb.)

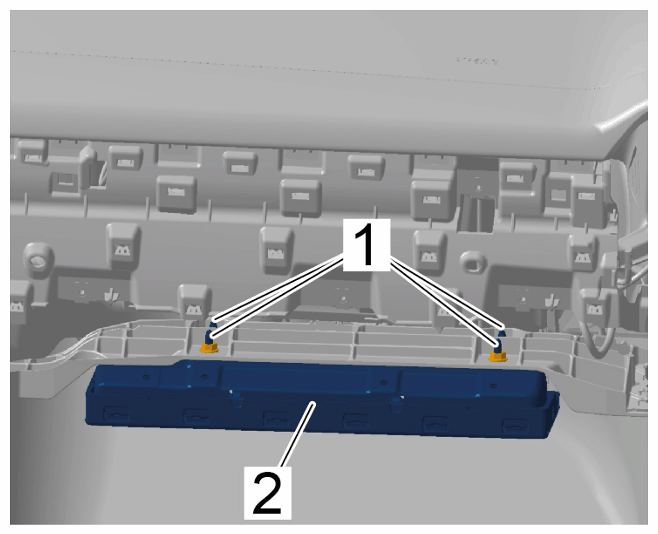

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts
Fastening screws securing support for knee airbag on passenger's side to dashboard bracket	Item 2	Tightening torque	5 Nm (3.5 ftlb.)

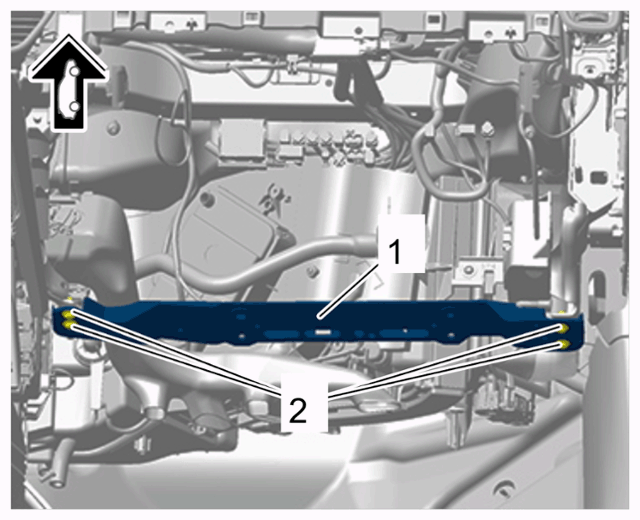

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Support for knee airbag on passenger's side
