Front Three-Point Belt

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

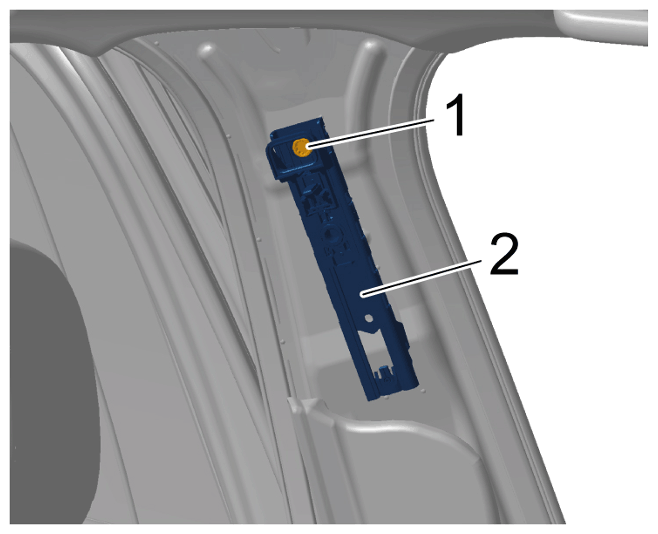

Screw for adjustment fitting	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for adjustment fitting

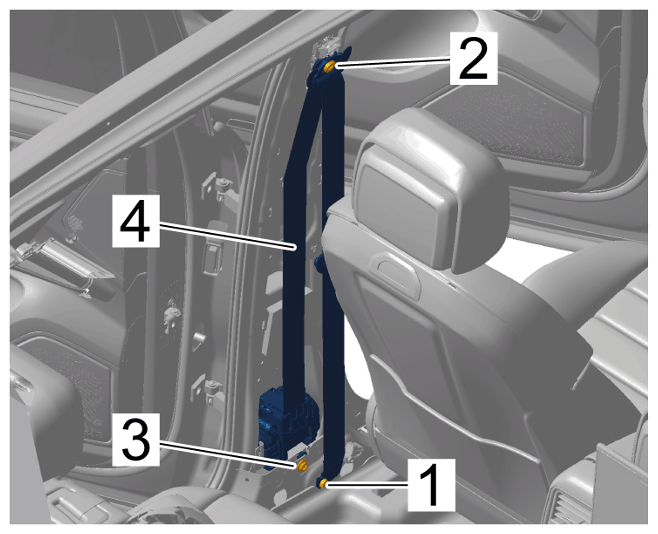

Screw for belt retractor	Item 3	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw for belt deflector	Item 2	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

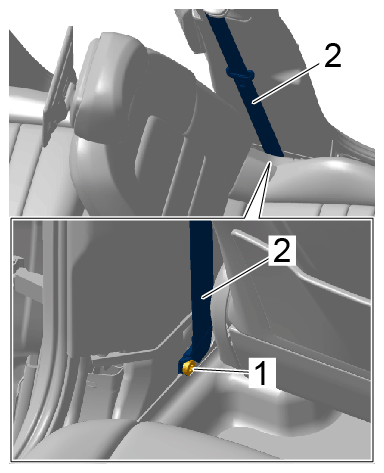

Screw securing front three-point belt to bodyshell	Item 1	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt fitting

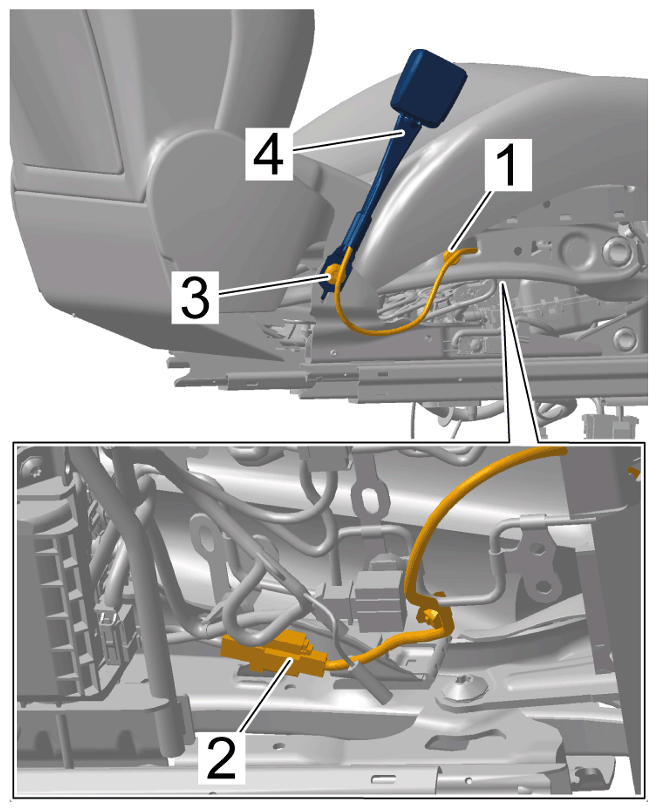

Screw securing front seat-belt buckle to front seat	Item 3	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front seat-belt buckle
