Front Power Windows Mechanism
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

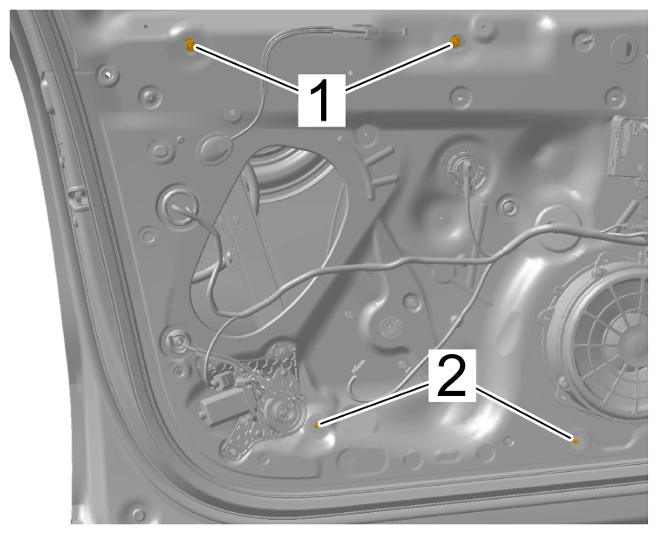

| Nut securing front power window mechanism to door |
Items 1 and 2 |
Tightening torque |
7.5 Nm (5.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |

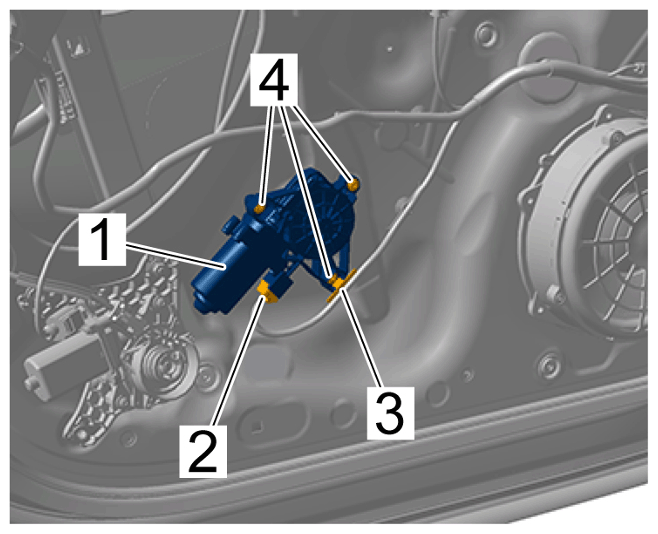

| Screw securing power window motor to power window mechanism |
Item 4 |
Tightening torque |
3.5 Nm (2.6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Power window motor |
