Front Apron

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

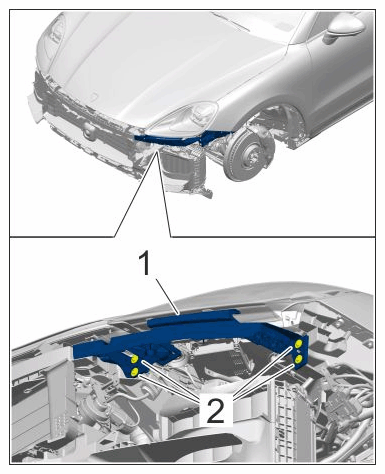

Screws securing retaining strip to front end		Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

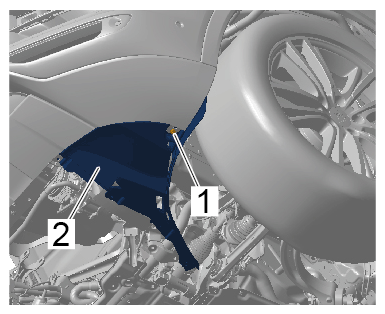

Nuts securing retaining strip to wing	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

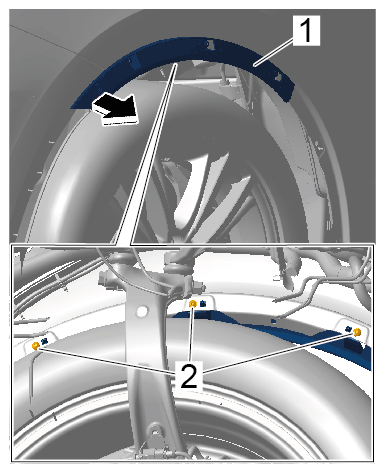

Screws securing wheel cover bracket to wing	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel cover bracket

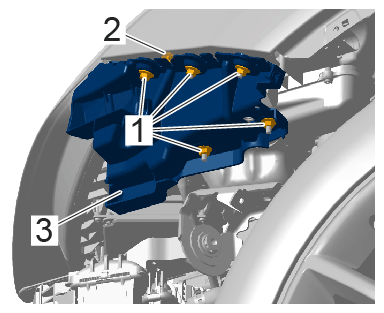

Screw securing air duct for brake to front apron, bottom	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on air duct for brake

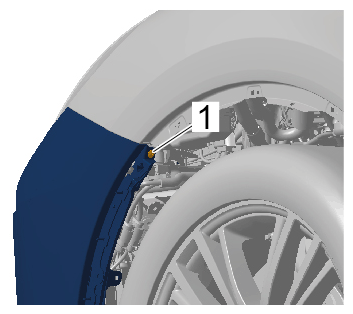

Screw securing front apron to wing	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on front apron

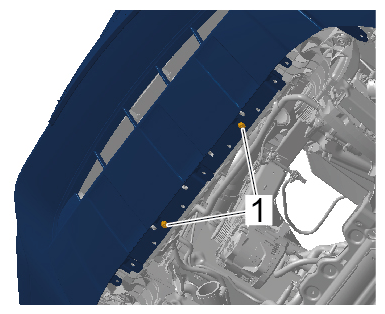

Screws securing front apron to front end, bottom	Item 1	Tightening torque	4.5 Nm (3.25 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front apron to front end at the bottom

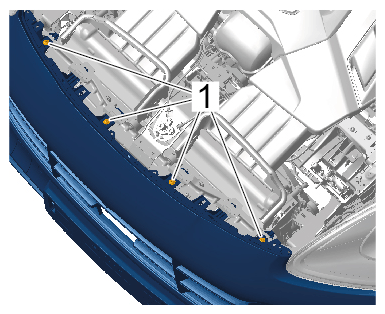

Screws securing front apron to front end, top	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front apron to front end at the top

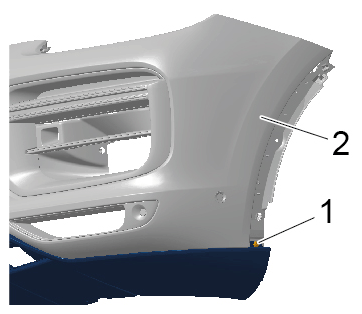

Screw securing front spoiler to front apron	Item 1	Tightening torque	2.3 Nm (1.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing front spoiler to front apron
