Control Unit For Rear Spoiler To Body
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

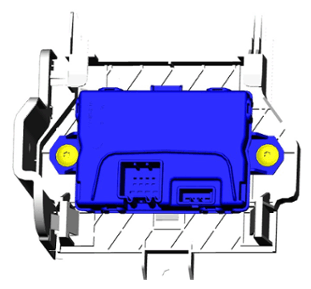

| Screws for control unit for rear spoiler to holder for rear spoiler control unit | tightening torque | 2 Nm (1.5 ftlb.) | ||
|
Control unit for rear spoiler |
||||

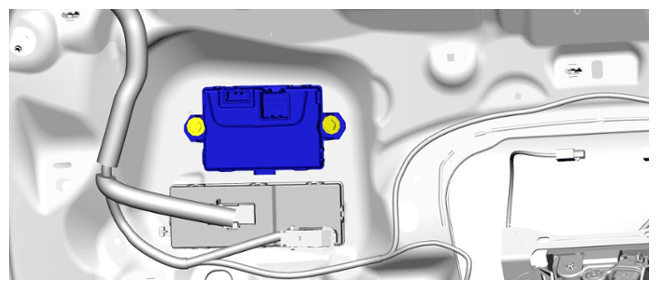

| Nut used to support control unit for rear spoiler on body | torque | 3.2 Nm (2.5 ftlb.) | ||
|
Nut on holder for rear spoiler control unit |
||||

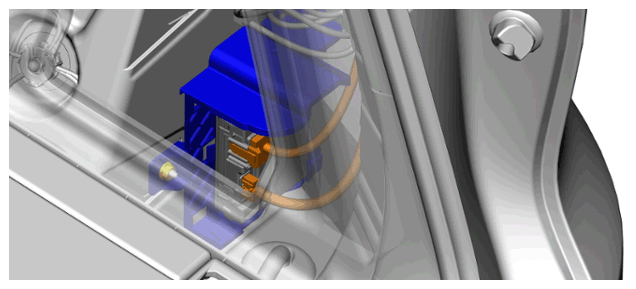

| Screws securing rear spoiler control unit to rear lid | Tightening torque | 3.7 Nm (2.7 ftlb.) | ||
|
Screws securing rear spoiler control unit |
||||
