Technical Values: Bumpers

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

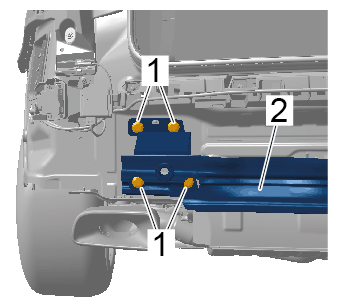

Rear bumper to bodyshell	Item 1	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear bumper

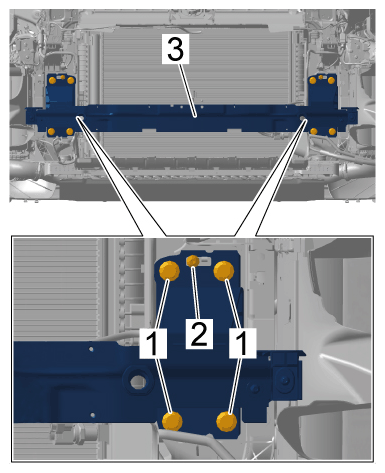

Front bumper to front end	Item 1	Tightening torque	60 Nm (44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front bumper
Screw for pre-assembly of front bumper on front end	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front bumper

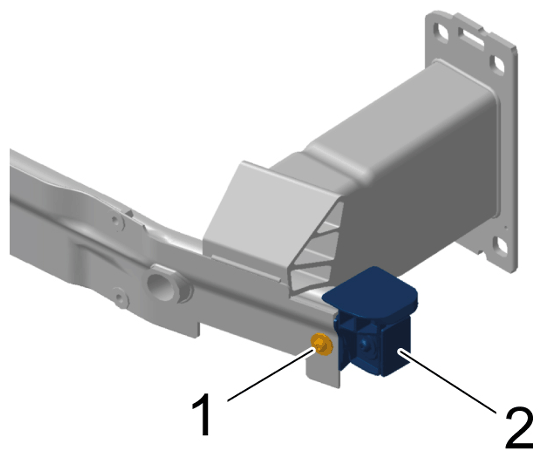

Screw securing adjusting element to front bumper	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
