Technical Values: Airbag
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

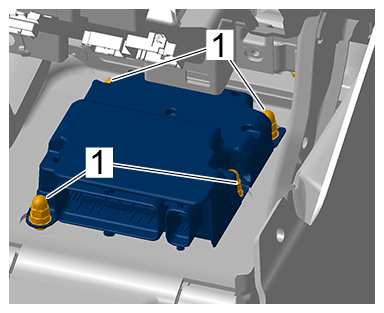

| Nuts on airbag triggering unit | Item 1 | Tightening torque | 9 Nm (6.5 ftlb.) | |
|
Nuts |
||||

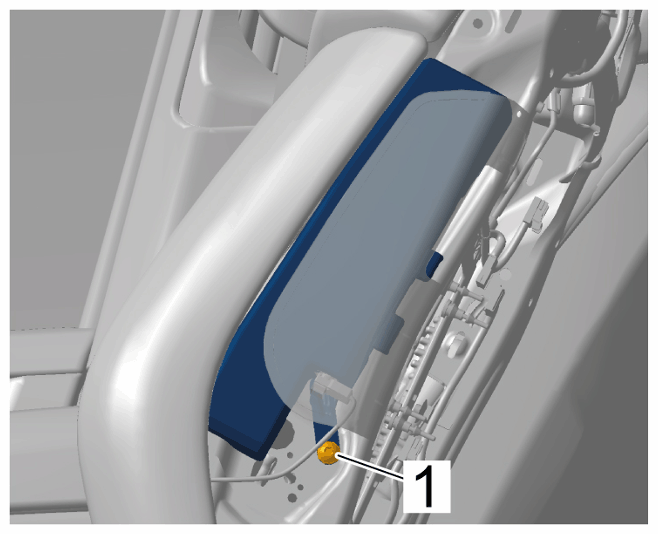

| Front side airbag to front seat | Item 1 | Tightening torque | 8 Nm (6 ftlb.) | |
|
Screw for front side airbag |
||||

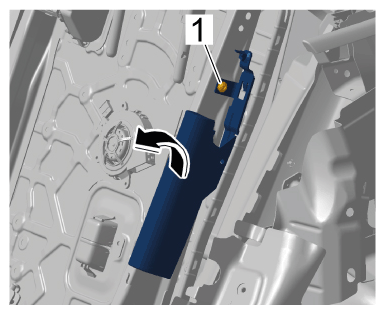

| Rear side airbag to rear seat | Item 1 | Tightening torque | 8 Nm (6 ftlb.) | |
|
Rear side airbag |
||||
