Preparing Vehicle Flange - Vehicle Flange With Repair Paint Finish Without Adhesive Bead

WARNING: This page is about a different variant/trim than selected.

Create repair paint finish in the vehicle flange area.
1. 1.1 Apply 2-component primer to the bare panel in the vehicle flange area.
2. 1.2 Allow primer to dry.
3. 1.3 Mask the bonding area around the vehicle flange with adhesive tape. Do not apply colored paint to the bonding area.
4. 1.4 Paint the vehicle flange and the remaining affected components with a standard repair paint finish and allow to dry.
5. 1.5 Finally, remove adhesive tape used to mask the area.

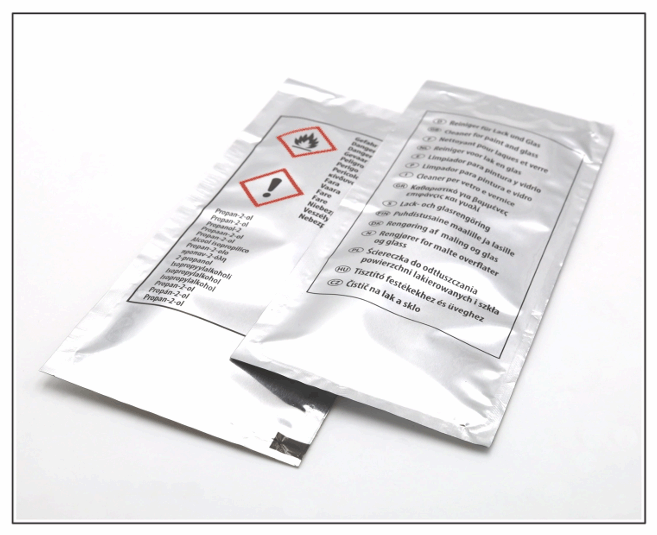

Clean the bonding area on the vehicle flange using a cleaning cloth from the adhesive set.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning cloth

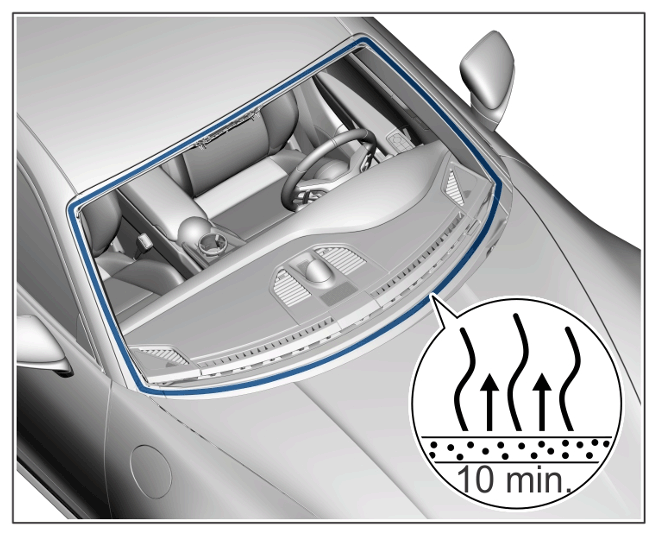

Let cleaning agent air dry for 10 minutes.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning agent drying time

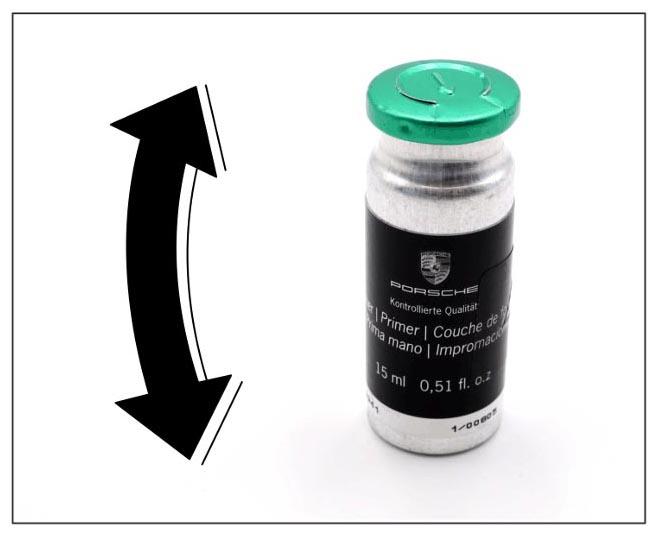

Shake primer for 2 minutes. The steel ball must be clearly heard and felt moving inside the primer cartridge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primer

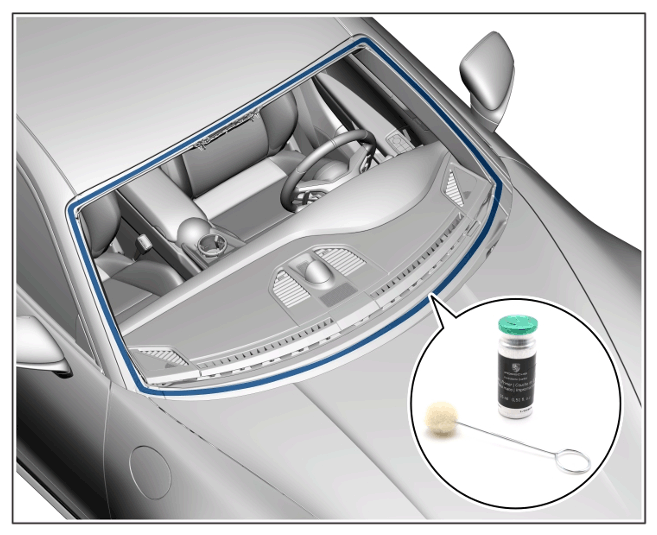

Apply a single coat of primer from the adhesive set in the bonding area on the vehicle flange in one movement using the applicator brush.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primer on vehicle flange

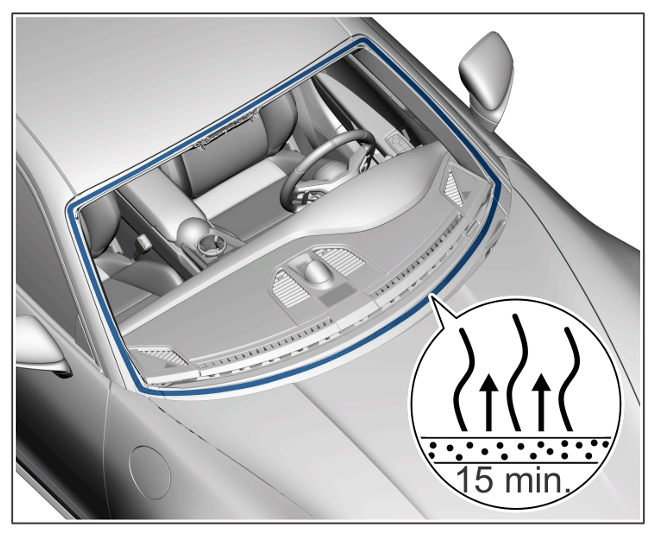

Let air dry for 15 minutes.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primer drying time
If a drying time of 8 hours is exceeded: Primer may be applied only once and within 96 hours of applying the first coat of primer. Primed bonding surfaces must be protected from external influences and dirt during this period. Let primer air dry for 15 minutes again.
