Preparing Component - New Component Without Adhesive Bead

WARNING: This page is about a different variant/trim than selected.

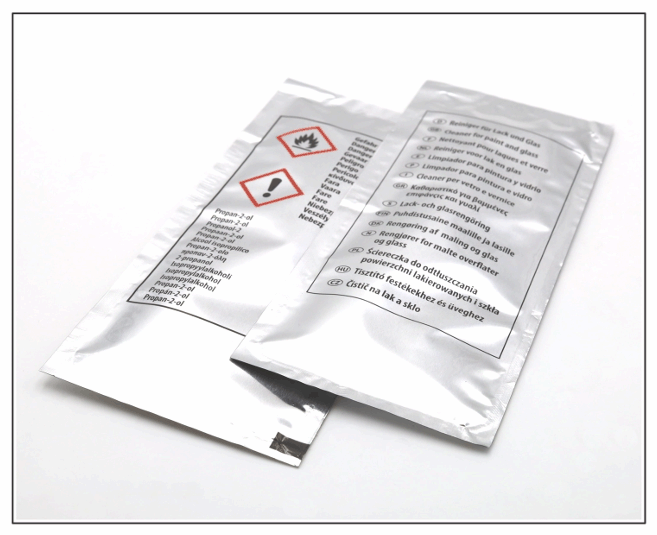

Clean the bonding area on the component using a cleaning cloth from the adhesive set.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning cloth

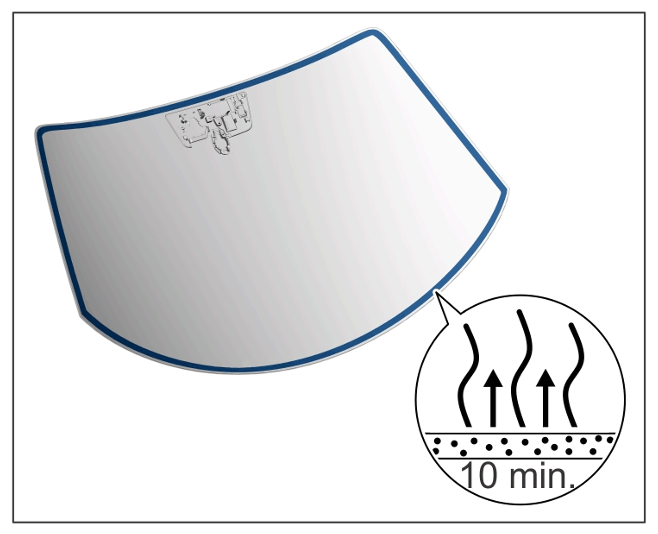

Let cleaning agent air dry for 10 minutes.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning agent drying time

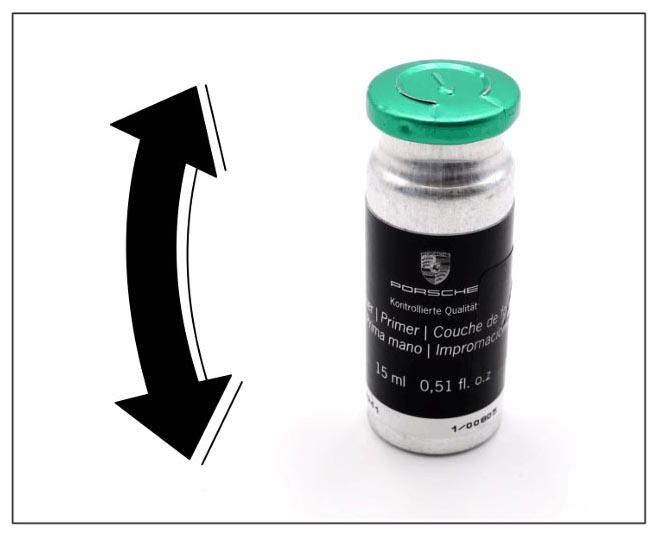

Shake primer for 2 minutes. The steel ball must be clearly heard and felt moving inside the primer cartridge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primer

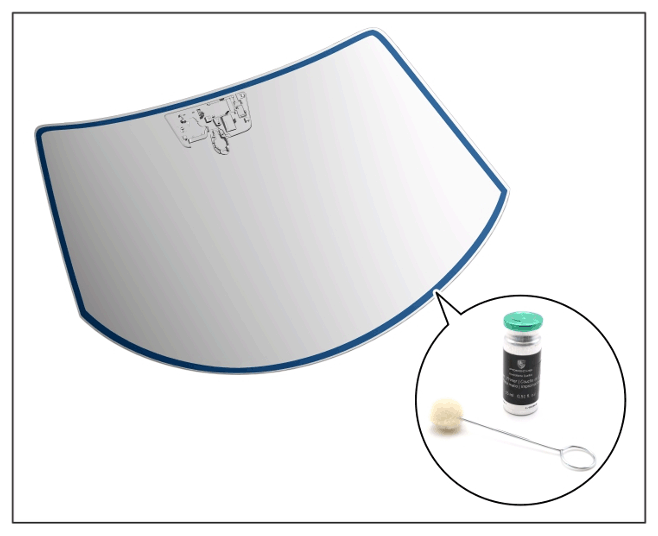

Apply a single coat of primer from the adhesive set in the bonding area on the component in one movement using the applicator brush.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primer component
Let air dry for 15 minutes.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primer drying time
If a drying time of 8 hours is exceeded : Primer may be applied again only once and within 96 hours of applying the first coat of primer. Primed bonding surfaces must be protected from external influences and dirt during this period. Let primer air dry for 15 minutes again.
