Removing Glass Using Wire For Cutting Tool

Information

• The following instructions describe the general procedure for removing car windows with the glass separating tool VAG 1474 B.
• Information on procedures relating to specific vehicles can be obtained from the instructions in the appropriate service information.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

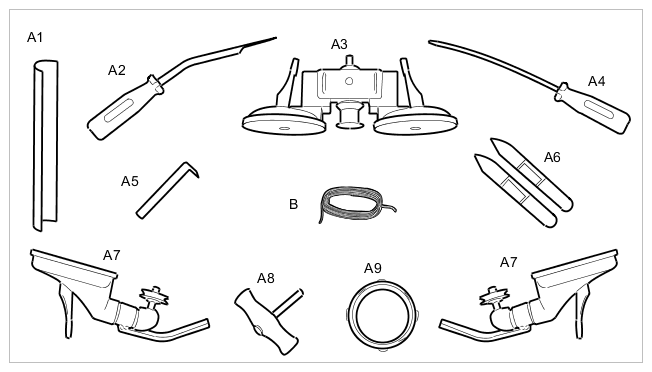

Tools for removing car windows

A	> V.A.G 1474B - Removal kit for flush bonded windows (1)).
B	Cutting thread
A1	Guide rail
A2	Cutting tool (wire holder)
A3	Spooling device
A4	Awl
A5	Guide rail
A6	Spatula
A7	Guide roller with brace
A8	Handle
A9	Square cutting wire
(1) Contains set components A1-A9 and protective film for dashboard.

Information

• It is generally possible to remove the windscreen with the cutting wire and the optional cutting thread contained in the tool set.
• In contrast to cutting threads, however, the cutting wire has the following disadvantages:
• Danger of injury when tearing off the cutting wire.
• Danger of damage to materials on paint surfaces and interior equipment parts.
• For the reasons outlined above we recommend using the cutting thread.

NOTIFICATION

Windscreen removed incorrectly

• Risk of damage to vehicle identification number (VIN) label
• Risk of damage to paintwork

  → When cutting out the windscreen, make sure that the label with the vehicle identification number (VIN) is not damaged.

Information

• In order to guarantee an optimum fastening intake grip, it is advisable to clean the inside of the glass before removal.

Clean inside of glass.

Information

• The film protects the dashboard from damage when removing the window glass.

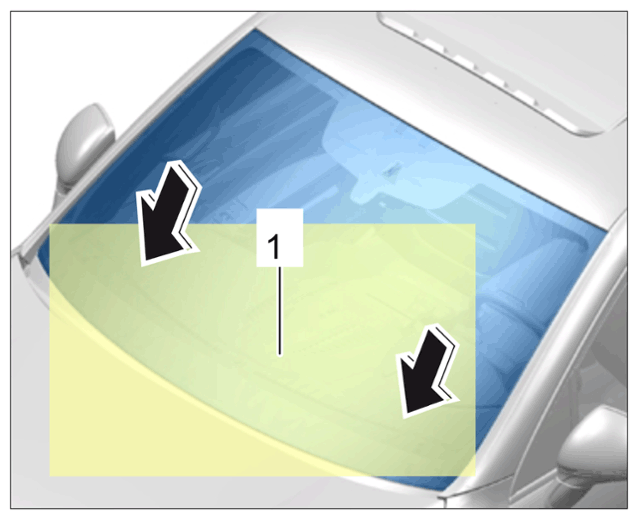

Affix protective film -1-  to the dashboard.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protective film on instrument panel

Select the required protective film -1-  and slide it in between the windscreen and damping mat.

Information

• To prevent damage, make sure that the vehicle identification number (VIN) is completely masked by the protective film when piercing the adhesive bead.

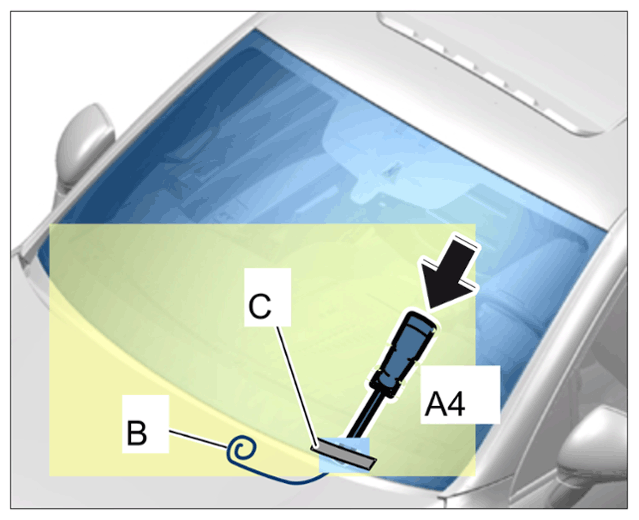

Pull cutting thread -B -  into the passenger compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling cutting thread into passenger compartment

Push through adhesive bead on the glass at the edge of the vehicle identification number -C -  with the awl -A4-  from the inside to the outside.

Pass cutting thread -B -  through the eyelet on the awl -A4-  .

Pull cutting thread -B -  into the passenger compartment.

Pull cutting thread -B -  out of the awl -A4-  .

Pull cutting thread -B -  approx. 1 m into the passenger compartment.

Information

• The cutting thread should be positioned under the rim as far as possible. The sealing lip must be raised slightly in the upper part of the glass in order to pull the cutting thread through.

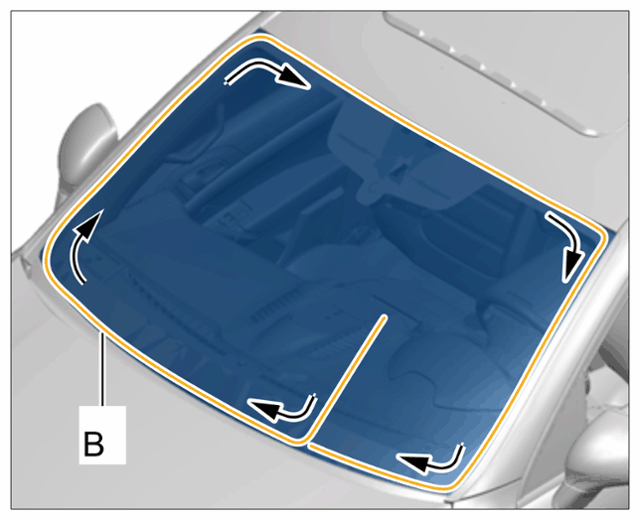

Insert cutting thread -B -  into the gap in the glass.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting thread in gap in glass

Pull cutting thread -B -  in -direction of arrow-  into the gap between the glass and the body all the way around. Use A6 spatula if necessary.

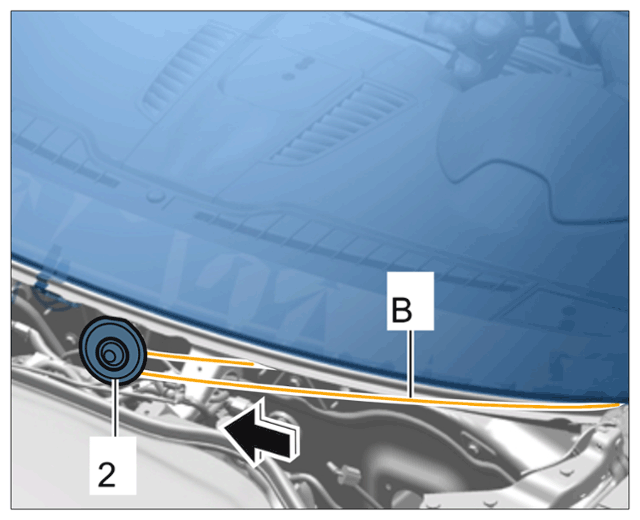

Secure cutting thread -B -  to the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting thread on body

Clamp the loose end of the cutting thread -B -  firmly at a suitable point on the body using the fastening screw -2-  for an add-on part (e.g. wiper motor fastening). To do this, loosen the fastening screw, wind the cutting thread -B -  around the screw once and tighten the fastening screw -2-  again.

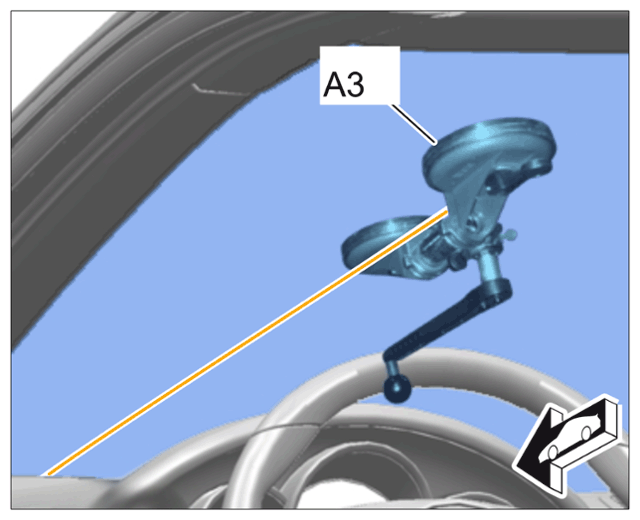

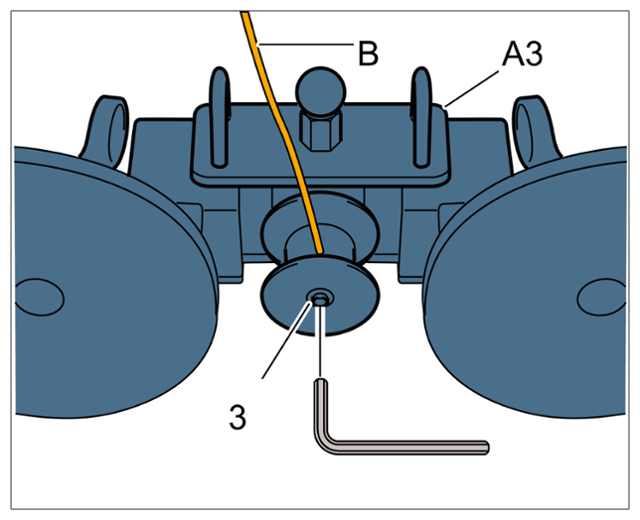

Fit cutting thread -B -  on the spooling device -A3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting cutting thread on spooling device

Loosen clamping screw -3-  .

Insert cutting thread -B -  into the bore on the spooling device -A3-  .

Clamp cutting thread -B -  firmly with the clamping screw -A3-  .

Information

• The fastening force can be increased by moistening the fastening intake.

Fit spooling device -A3-  and deflection rollers on the glass.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting spooling device on the glass

Position spooling device -A3-  diagonally in the center of the glass.

Press spooling device -A3-  firmly against the glass using the suction cups.

Secure suction cup to the glass by moving the actuating lever. > Fitting spooling device on the glass

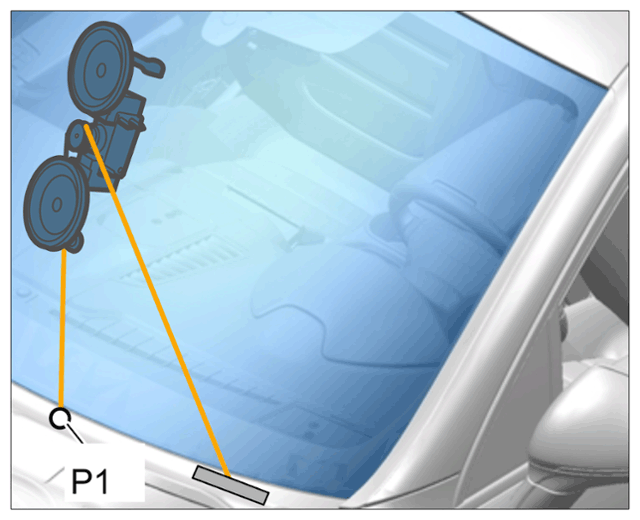

Separate window glass as far as point -P1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separating window glass

Separate window glass by spooling the cutting thread on the spooling device as far as point -P1-  .

Information

• The fastening force can be increased by moistening the fastening intake.

Re-position spooling device. > Re-positioning spooling device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Re-positioning spooling device

Release spooling device > Re-positioning spooling device  .

Loosen the lower suction cup on the spooling device > Re-positioning spooling device  .

Pull cutting thread through onto the other side of the suction cup. > Re-positioning spooling device

Secure suction cup to the glass by moving the actuating lever.

Information

• The fastening force can be increased by moistening the fastening intake.

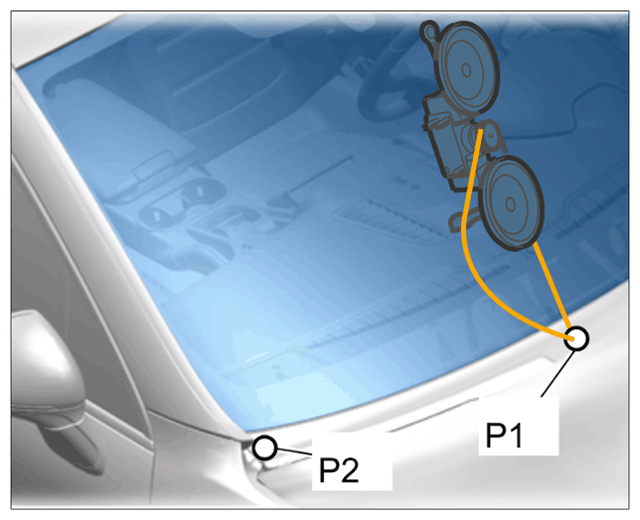

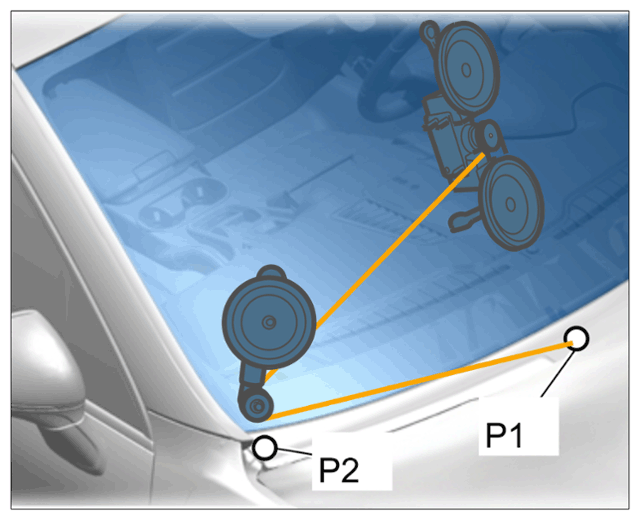

Separate window glass as far as point -P2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separating window glass

Position deflection roller in the lower right corner. > Separating window glass

Press deflection roller with suction cup firmly against the glass. > Separating window glass

Secure suction cup to the glass by moving the actuating lever. > Separating window glass

Pass cutting thread over the deflection roller onto the spooling device. > Separating window glass

Separate glass by spooling the cutting thread on the spooling device as far as point -P2-  .

Information

• The fastening force can be increased by moistening the fastening intake.

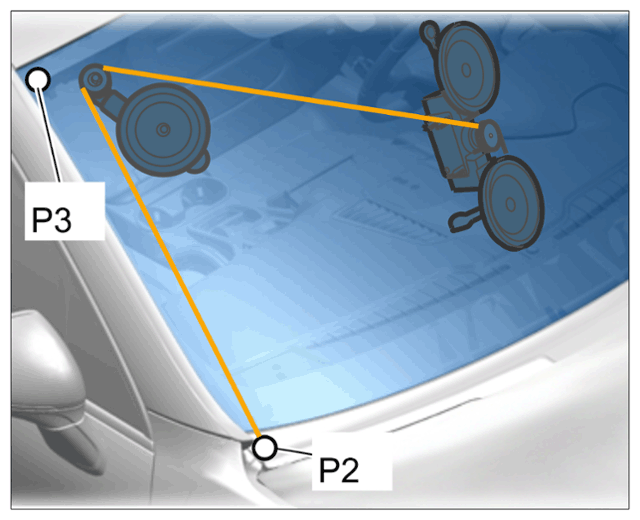

Separate window glass as far as point -P3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separating window glass

Release spooling device.

Position deflection roller in the upper right corner. > Separating window glass

Press deflection roller with suction cup firmly against the glass. > Separating window glass

Secure suction cup to the glass by moving the actuating lever. > Separating window glass

Pass cutting thread over the deflection roller onto the spooling device. > Separating window glass

Separate glass by spooling the cutting thread on the spooling device as far as point -P3-  .

Information

• The fastening force can be increased by moistening the fastening intake.

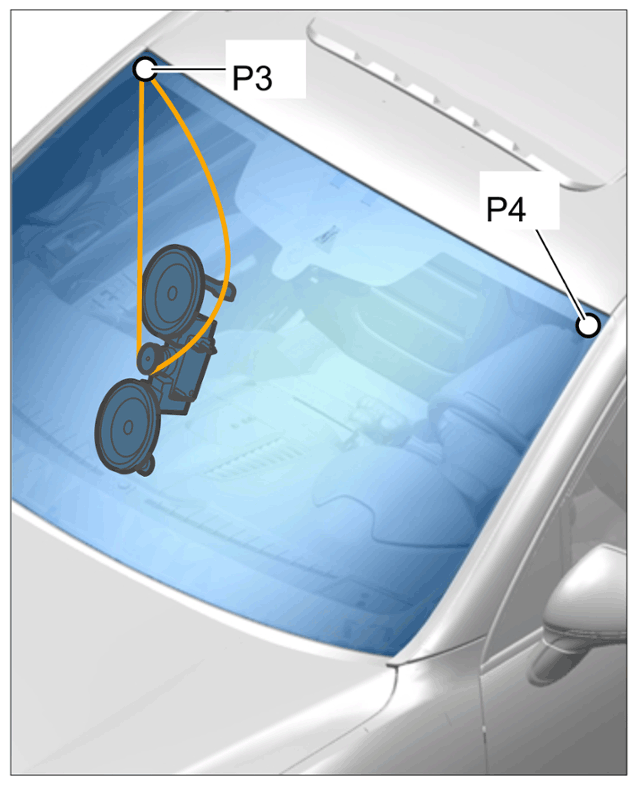

Re-position spooling device. > Re-positioning spooling device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Re-positioning spooling device

Release spooling device. > Re-positioning spooling device

Loosen the upper suction cup on the spooling device. > Re-positioning spooling device

Pull cutting thread through onto the other side of the suction cup. > Re-positioning spooling device

Secure suction cup to the glass by moving the actuating lever. > Re-positioning spooling device

Information

• The fastening force can be increased by moistening the fastening intake.

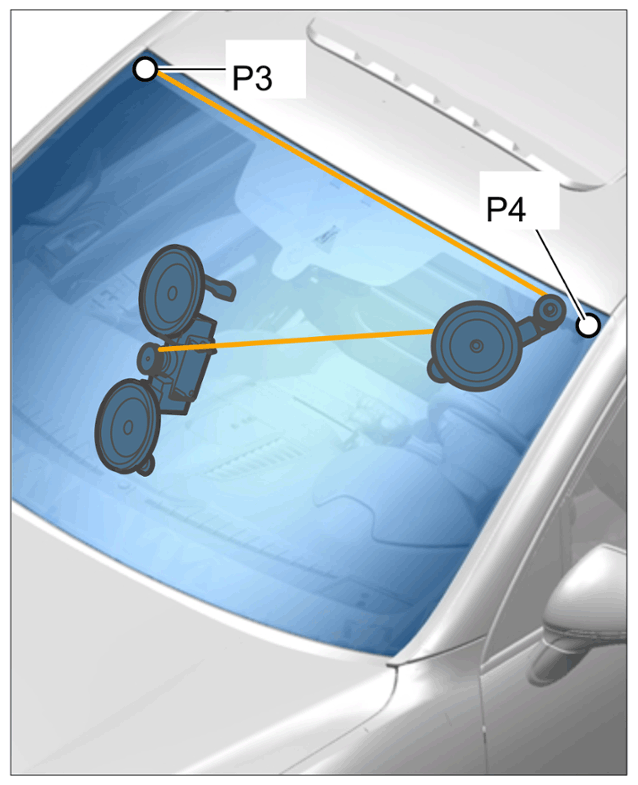

Separate window glass as far as point -P4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separating window glass

Position deflection roller in the upper left corner. > Separating window glass

Press deflection roller with suction cup firmly against the glass. > Separating window glass

Secure suction cup to the glass by moving the actuating lever. > Separating window glass

Pass cutting thread over the deflection roller onto the spooling device. > Separating window glass

Separate glass by spooling the cutting thread on the spooling device as far as point -P4-  .

Information

• The fastening force can be increased by moistening the fastening intake.

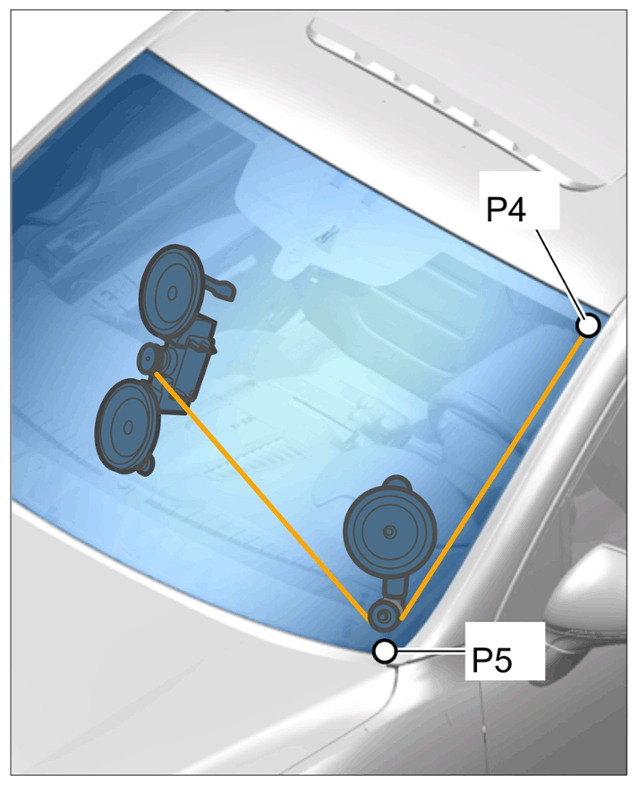

Separate window glass as far as point -P4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separating window glass

Release spooling device. > Separating window glass

Position deflection roller in the lower left corner. > Separating window glass

Press deflection roller with suction cup firmly against the glass. > Separating window glass

Secure suction cup to the glass by moving the actuating lever. > Separating window glass

Pass cutting thread over the deflection roller onto the spooling device. > Separating window glass

Separate glass by spooling the cutting thread on the spooling device as far as point -P5-  .

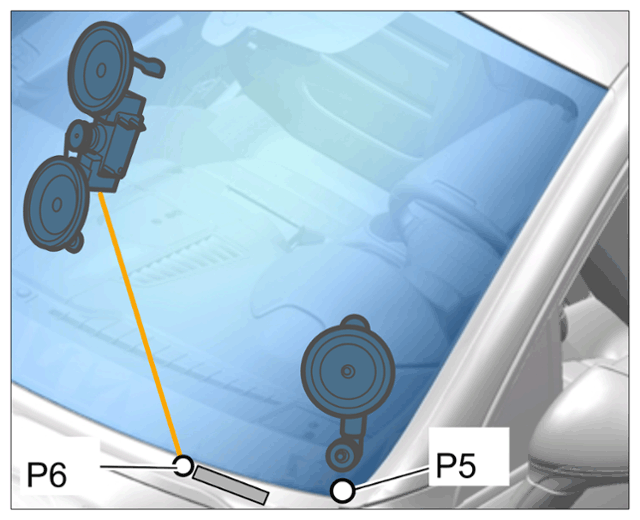

Separate window glass as far as point -P6-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separating window glass

Separate glass by spooling the cutting thread on the spooling device as far as point -P6-  .

Remove glass.
