Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance 1

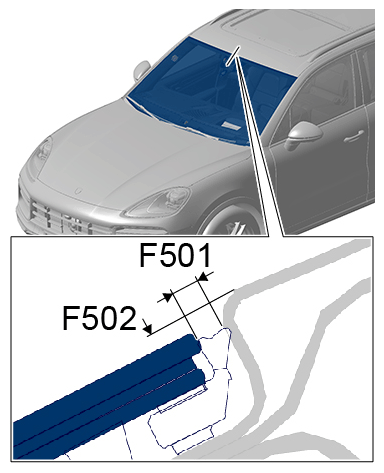

Windscreen to roof (F501)		Gap dimension	2.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Windscreen to roof (F502)	Offset	Gap dimension	2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

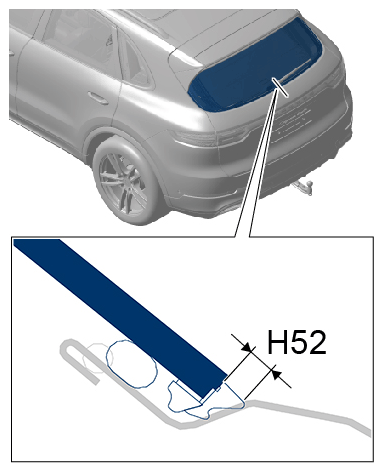

Rear window to rear lid (H52)		Gap dimension	4.3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

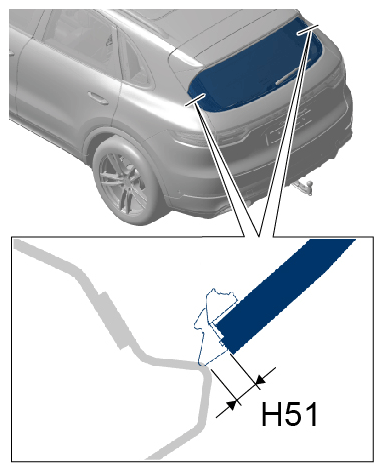

Rear window to rear side panel, rear (H51)		Gap dimension	3.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

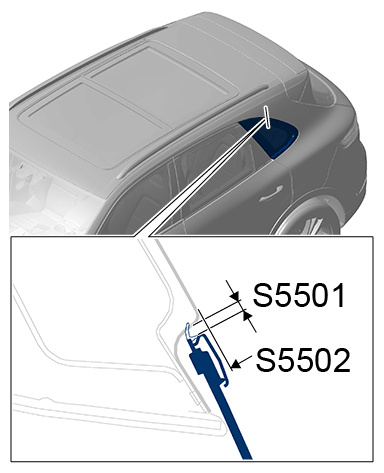

Side window to rear side panel, top (S5501)		Gap dimension	4.9 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Side window to rear side panel, top (S5502)	Offset	Gap dimension	2.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

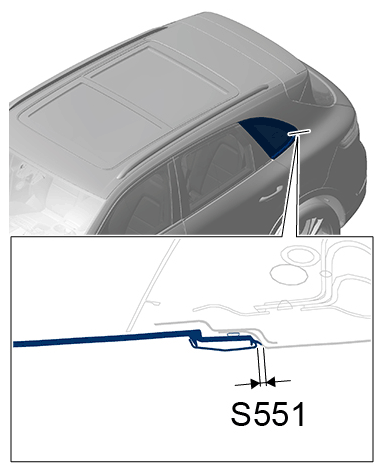

Side window to rear side panel, rear (S551)		Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

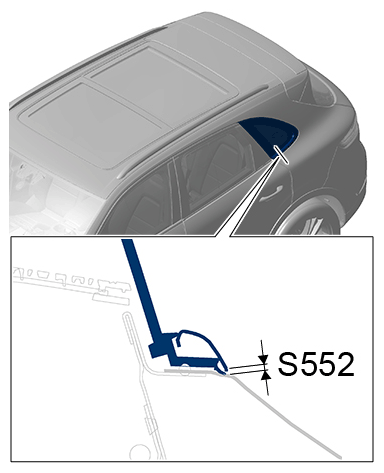

Side window to rear side panel, bottom (S552)		Gap dimension	0.8 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

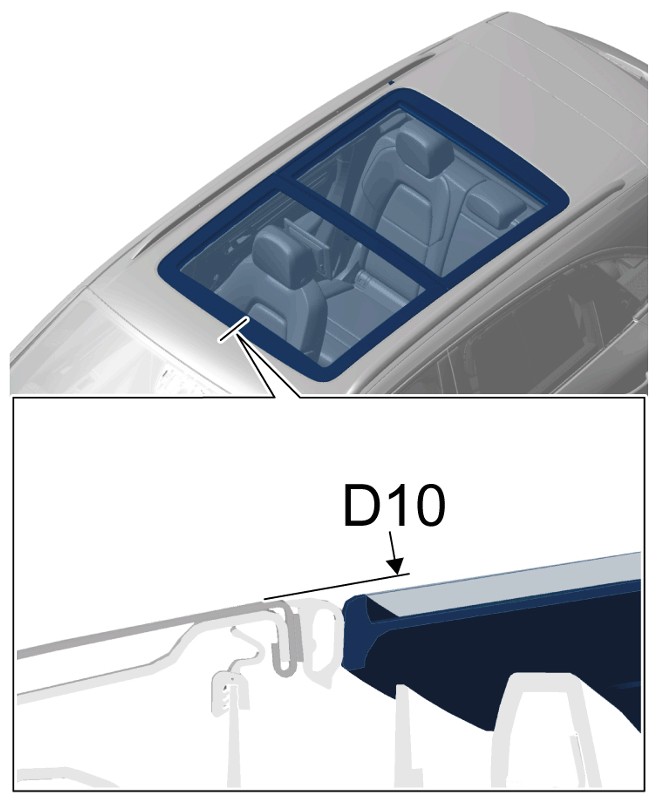

Front sliding-roof panel to roof (D10)	Offset	Gap dimension	1.8 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

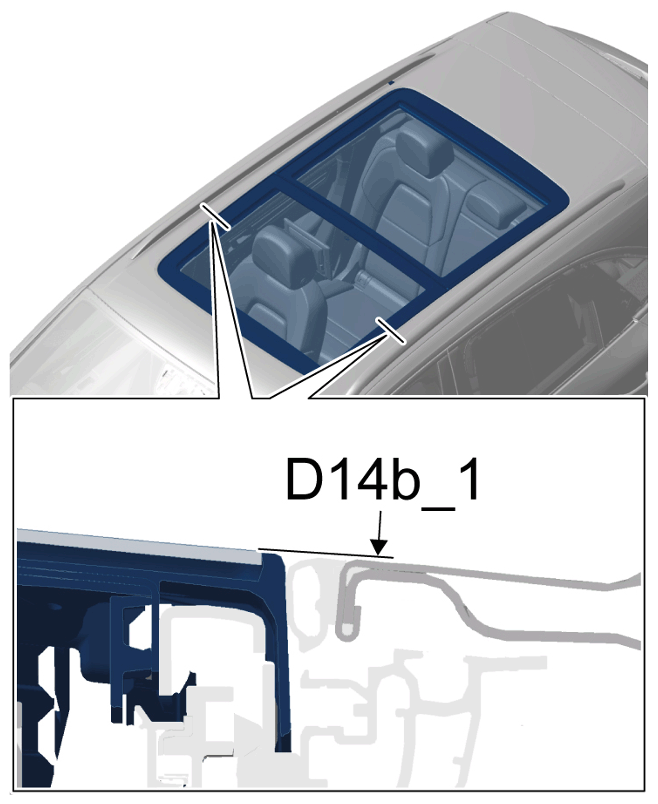

Side sliding-roof panel to roof (D14b_1)	Offset	Gap dimension	1.2 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

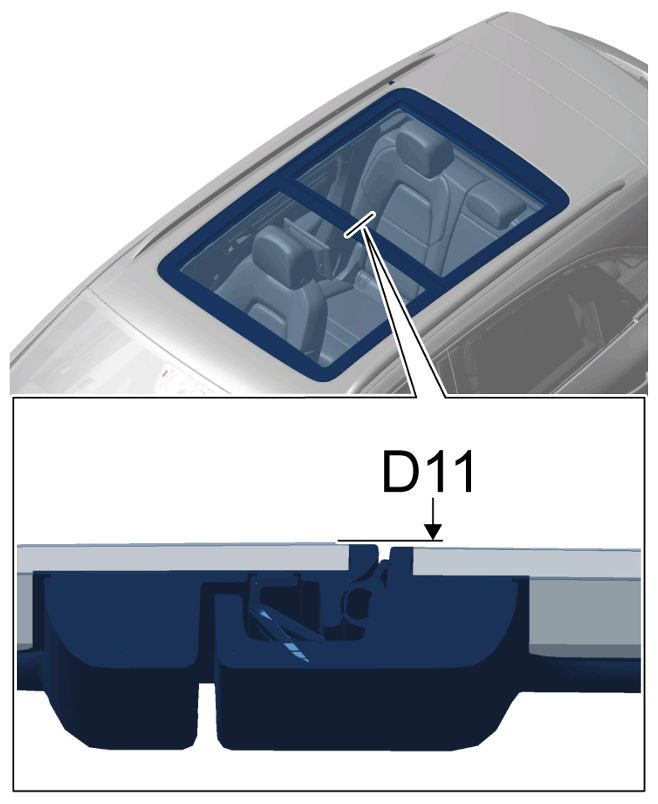

Sliding-roof panel to rear panoramic roof glass panel (D11)	Offset	Gap dimension	0.8 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

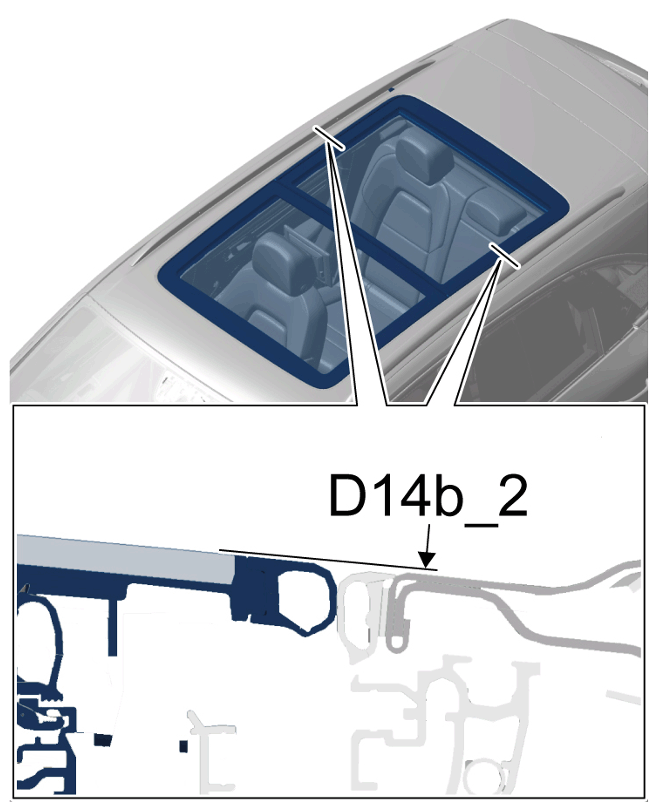

Rear panoramic roof glass panel to roof, sides (D14b_2)	Offset	Gap dimension	0.3 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

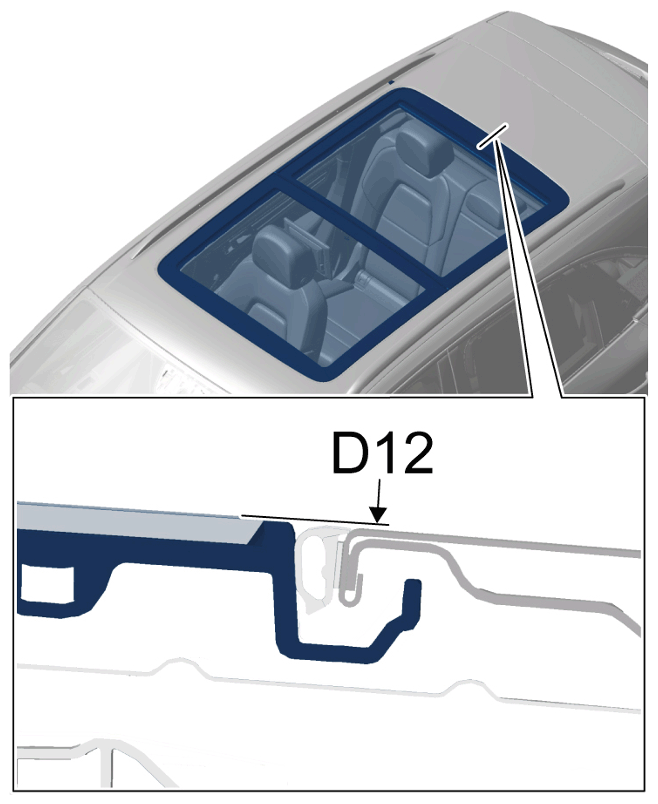

Rear panoramic roof glass panel to roof, rear (D12)	Offset	Gap dimension	0.6 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
