Gap Dimensions Of Windscreen
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

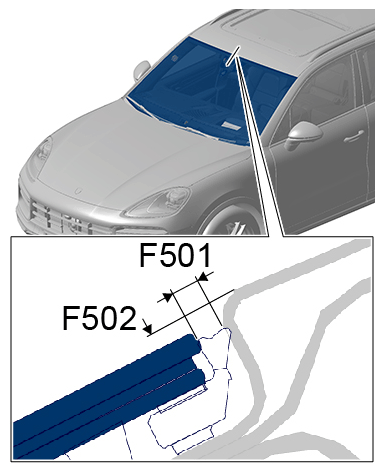

| Windscreen to roof (F501) |
|
Gap dimension |
2.9 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension |
| Windscreen to roof (F502) |
Offset |
Gap dimension |
2 mm |
+/- 0.5 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension |
