Gap Dimensions Of Sliding Roof
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

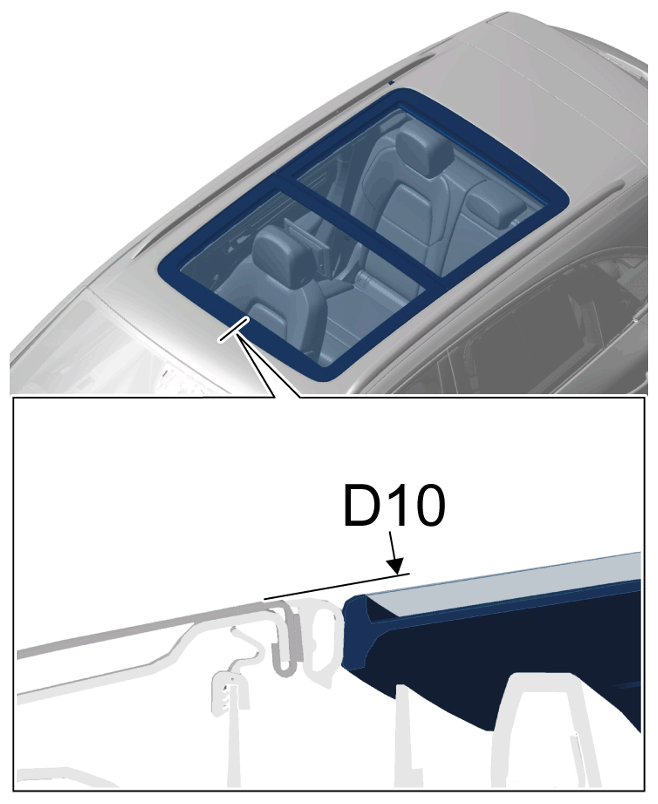

| Front sliding-roof panel to roof (D10) | Offset | Gap dimension | 1.8 mm | +/- 1.1 mm |
|
Gap dimension |
||||

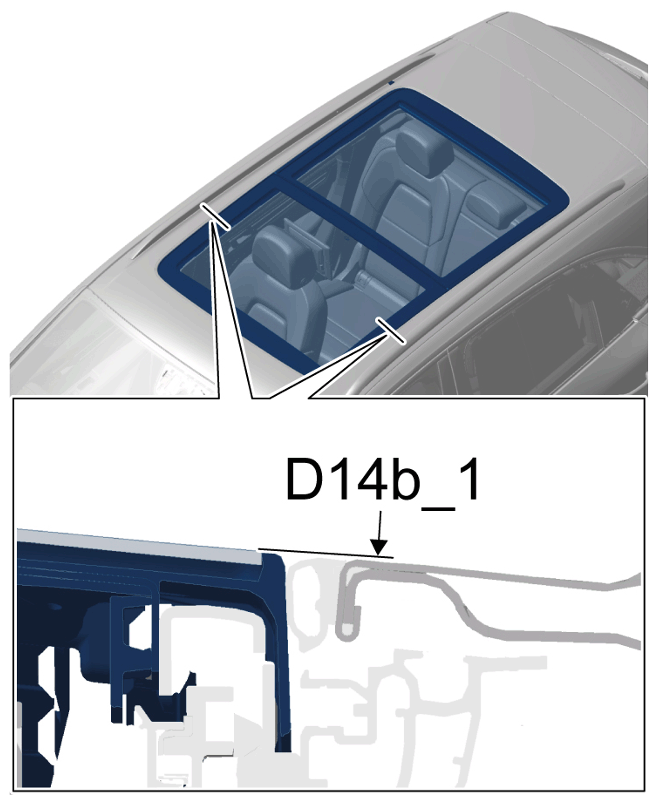

| Side sliding-roof panel to roof (D14b_1) | Offset | Gap dimension | 1.2 mm | +/- 1.1 mm |
|
Gap dimension |
||||

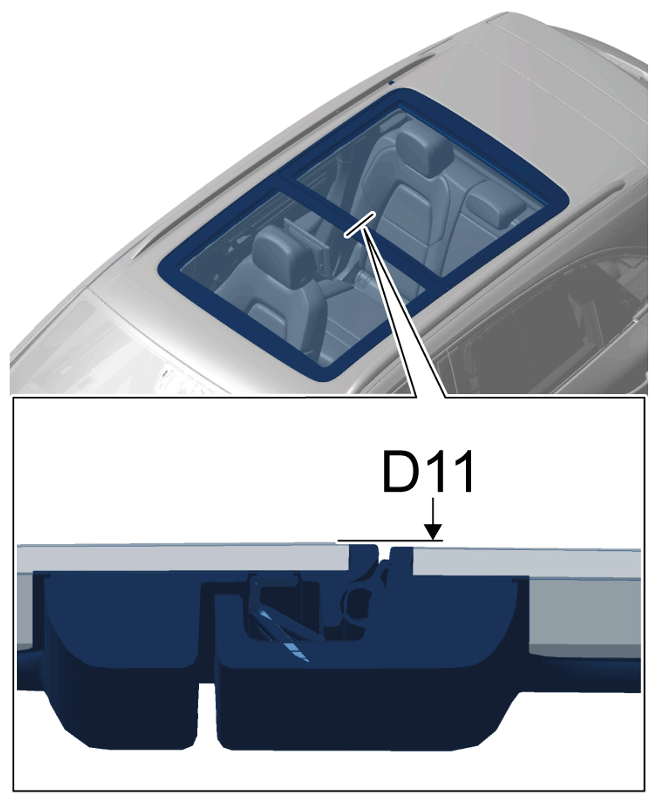

| Sliding-roof panel to rear panoramic roof glass panel (D11) | Offset | Gap dimension | 0.8 mm | +/- 0.5 mm |
|
Gap dimension |
||||

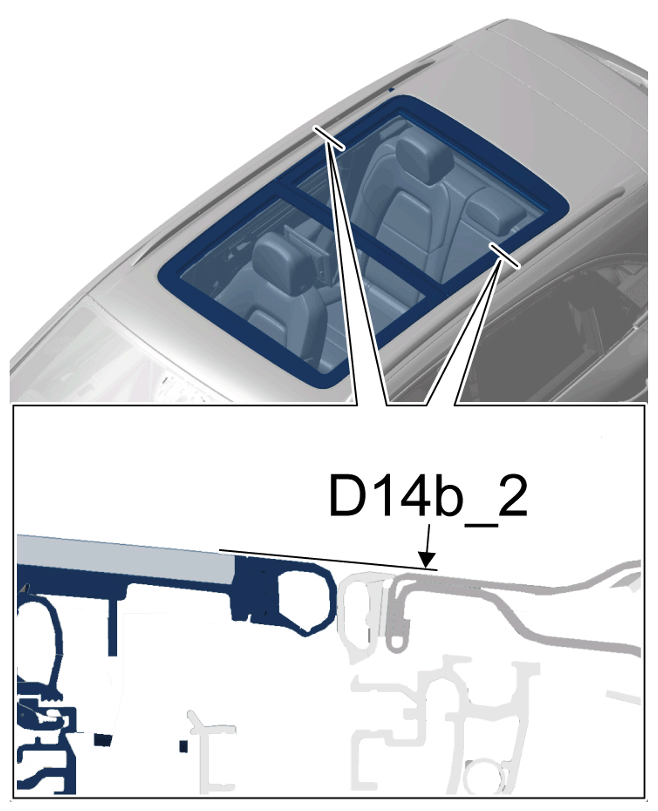

| Rear panoramic roof glass panel to roof, sides (D14b_2) | Offset | Gap dimension | 0.3 mm | +/- 1.1 mm |
|
Gap dimension |
||||

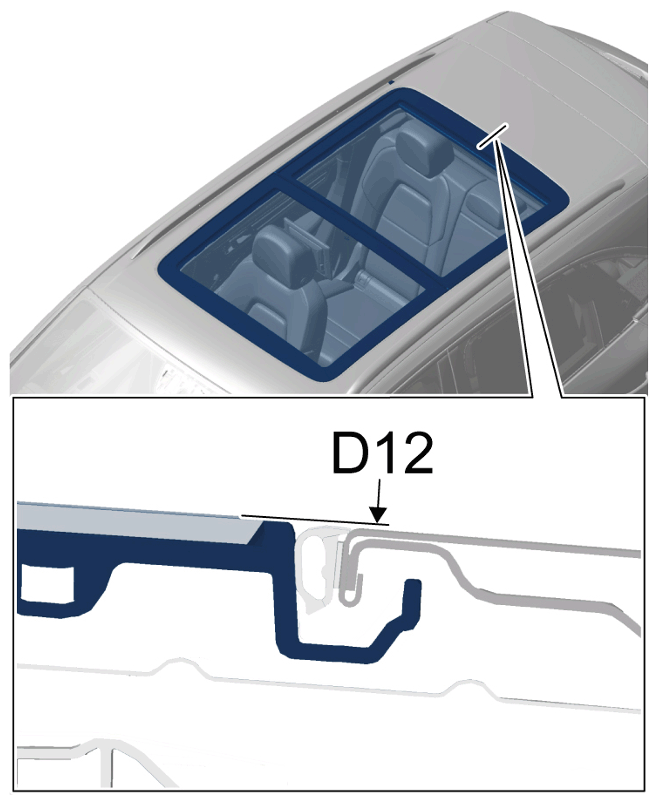

| Rear panoramic roof glass panel to roof, rear (D12) | Offset | Gap dimension | 0.6 mm | +/- 1.1 mm |
|
Gap dimension |
||||
