Gap Dimensions Of Side Window
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

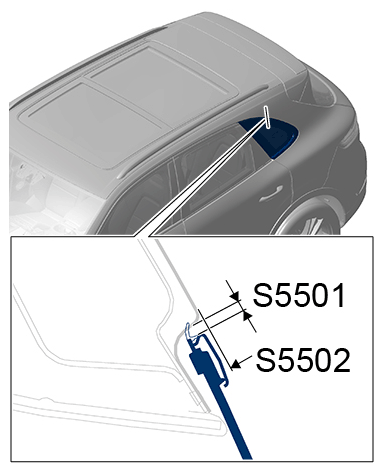

| Side window to rear side panel, top (S5501) | Gap dimension | 4.9 mm | +/- 1 mm | |
|
Gap dimension |
||||
| Side window to rear side panel, top (S5502) | Offset | Gap dimension | 2.5 mm | +/- 1 mm |
|
Gap dimension |
||||

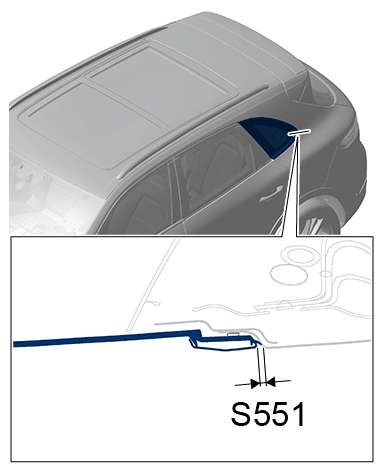

| Side window to rear side panel, rear (S551) | Gap dimension | 3 mm | +/- 0.5 mm | |
|
Gap dimension |
||||

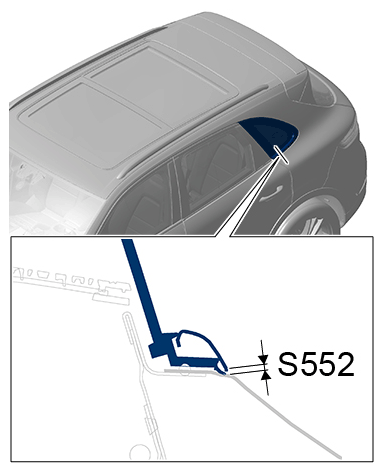

| Side window to rear side panel, bottom (S552) | Gap dimension | 0.8 mm | +/- 0.5 mm | |
|
Gap dimension |
||||
