Gap Dimensions Of Rear Window
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

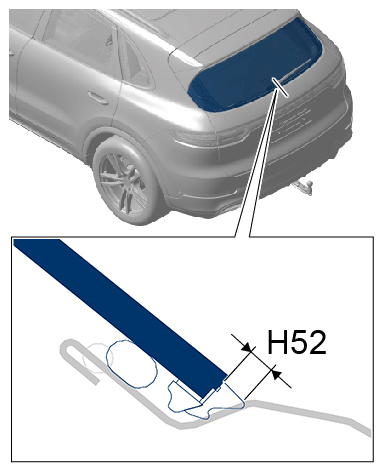

| Rear window to rear lid (H52) |
|
Gap dimension |
4.3 mm |
+/- 0.8 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension |

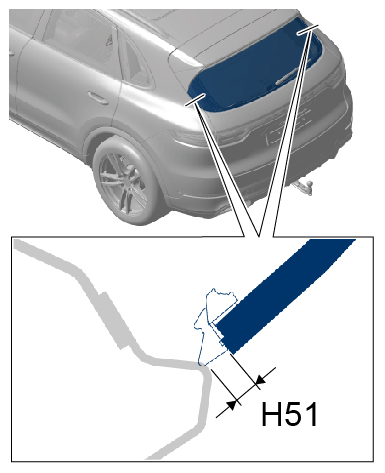

| Rear window to rear side panel, rear (H51) |
|
Gap dimension |
3.5 mm |
+/- 0.8 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension |
