Tools And Materials

WARNING: This page is about a different variant/trim than selected.
G15238246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of ignition device 92570

A  Ignition device 9257
G15238247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/4

A  Purple marking on the connector - adapter for knee airbag
B  Marking A - adapter for 1st stage of driver's airbag unit
C  Marking B - adapter for 2nd stage of driver's airbag unit
D  Green marking on the connector - adapter not required
E  Adapter for detonator (ignition device)

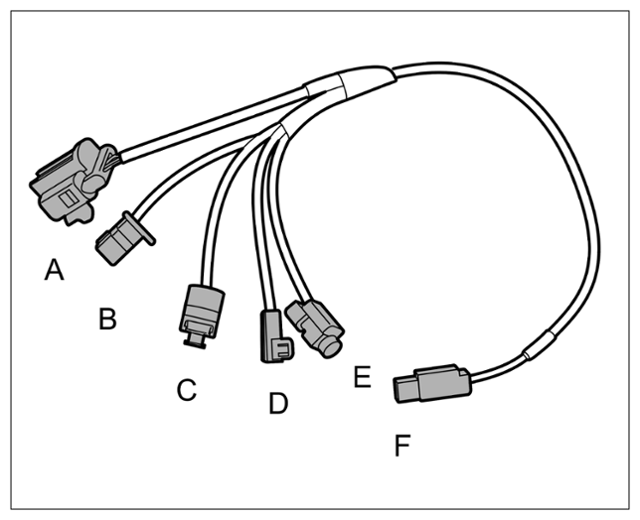

G15238248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/7

A  Purple marking on the connector - adapter for ignition module of front lid
B  Blue marking - adapter for 1st stage of driver's airbag unit
C  Black marking on the connector - adapter for head airbag
D  Turquoise marking on the connector - adapter for 1st stage of passenger's airbag unit
E  Yellow marking on the connector - adapter for 2nd stage of passenger's airbag unit and seat-belt pretensioner
F  Adapter for detonator (ignition device)

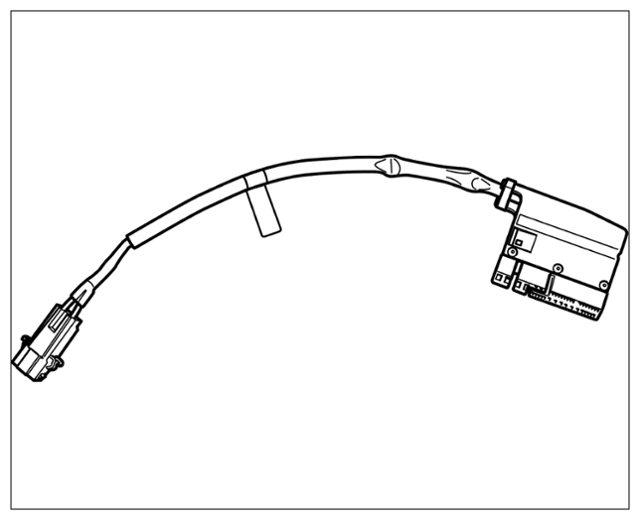

G15238249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/6

G15238250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/1

A  Black connector - adapter for cutoff relay at power distributor

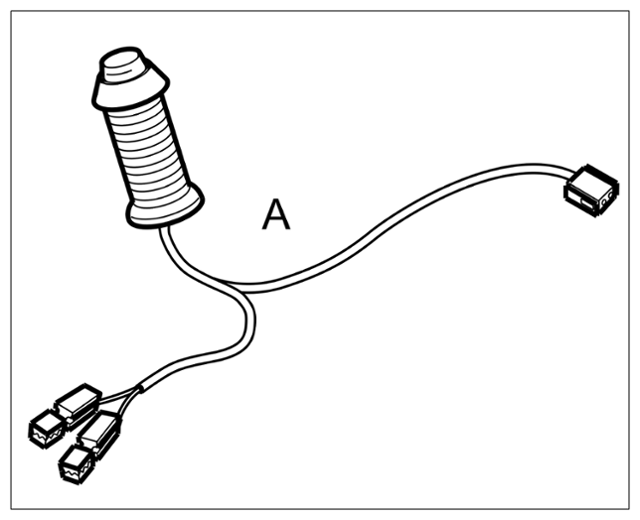

G15238311Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of ignition device 92570

LHD vehicle  Ignition device 9257

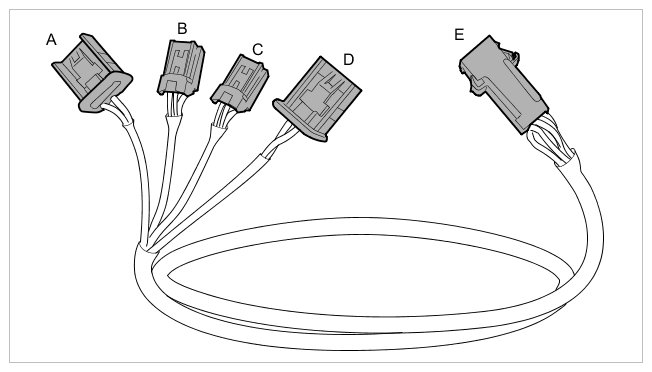

G15238312Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/4

LHD vehicle  Purple marking on the connector - adapter for knee airbag
RHD vehicle  Marking A - adapter for 1st stage of driver's airbag unit
Item C  Marking B - adapter for 2nd stage of driver's airbag unit
D  Green marking on the connector - adapter not required
E  Adapter for ignition device
G15238313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/7

LHD vehicle  Purple marking on the connector - adapter for ignition module of front lid
RHD vehicle  Blue marking - adapter for 1st stage of driver's airbag unit
Item C  Black marking on the connector - adapter for head airbag
D  Turquoise marking on the connector - adapter for 1st stage of passenger's airbag unit
E  Yellow marking on the connector - adapter for 2nd stage of passenger's airbag unit and seat-belt tensioner
F  Adapter for ignition device
G15238314Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of ignition cable 9257/6

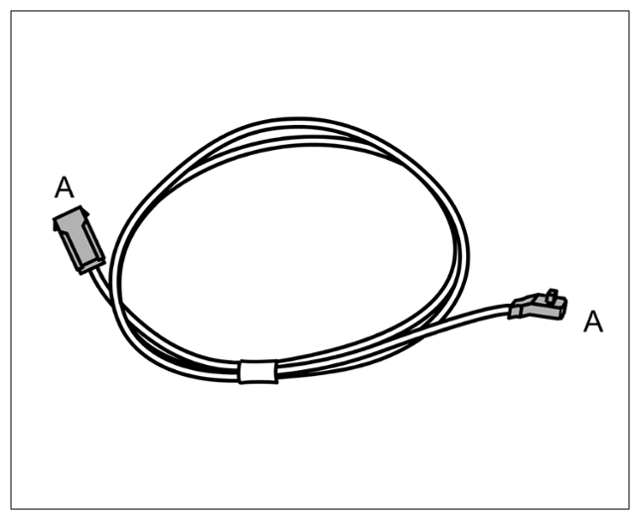

G15238315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/1

LHD vehicle  Black connector - adapter for cutoff relay at power distributor
