Knee Airbag

WARNING: This page is about a different variant/trim than selected.

WARNING: Incorrect handling of airbag units

Triggering of airbag unit.
System faults can occur.
→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only pull off connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures of more than 90°C.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

Information

Only ignite airbag units that are securely installed and in original condition in the vehicle. Allow airbag units to cool down under observation following ignition.

Use only the ignition tool intended for this purpose. First remove all loose objects from the expansion area of the airbag.
Every ignition circuit for all airbag units and seat-belt pretensioners must be ignited individually.
Persons who may be affected must be informed of the resulting noise beforehand.
Wear ear protectors.
Keep a safe distance by utilizing the entire cable length of the ignition tool. Do not connect the voltage source until all other preparations are complete.
If ignition fails, wait for approx. 3 minutes before approaching the vehicle.
Carry out ignition only in suitable, open areas.
Do not allow ignited airbag units to come into contact with the skin.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

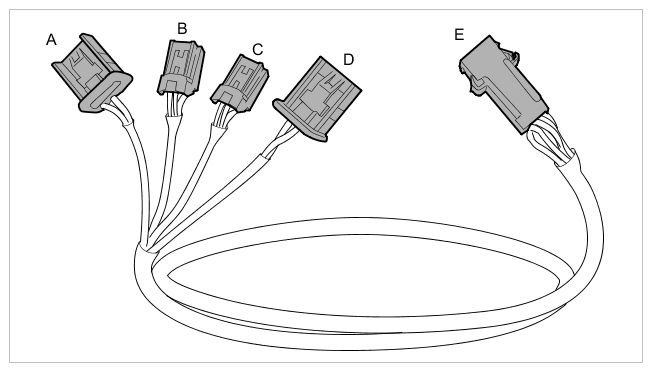

Overview of adapter cable 9257/4

A	Purple marking on the connector - adapter for knee airbag
E	Adapter for ignition device

Remove cold air bulkhead.
> WM, 70221901 REMOVING AND INSTALLING DASHBOARD COVER (DRIVER'S SIDE) / WM, 70221902 REMOVING AND INSTALLING COVER UNDER DASHBOARD (PASSENGER'S SIDE)
Unplug connector for the ignition module and plug in connector -A- from the > 9257/4 - adapter cable .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

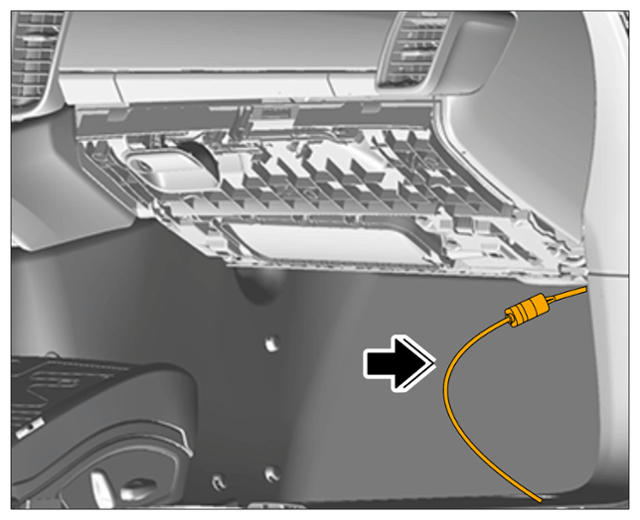

Plugging in adapter for knee airbag
Connect the > 9257 - ignition device to the 2-pin connector -A- of the > 9257/4 - adapter cable .
Place the ignition device in front of the vehicle through the door gap.
