Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

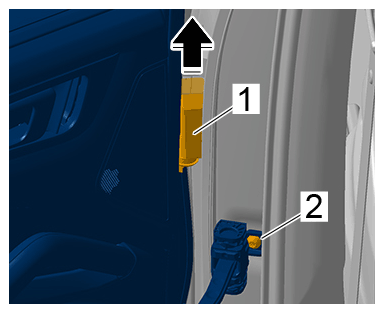

| Door arrester to bodyshell |
Item 1 |
Tightening torque |
33 Nm (24 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric plug connection |

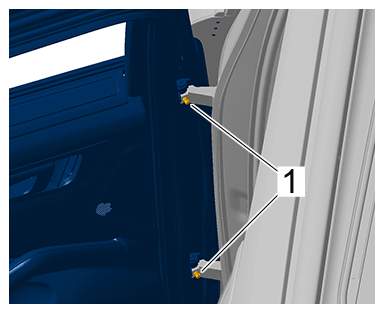

| Door hinge |
Item 1 |
Tightening torque |
27 Nm (20 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws for door hinge |
