Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

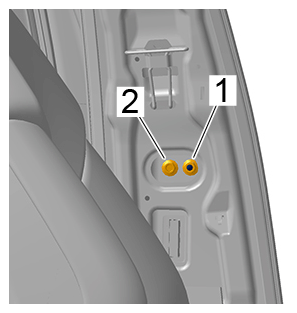

| Door hinges to bodyshell | Items 1 and 2 | Tightening torque | 32 Nm (24 ftlb.) + 45° |
||
|
Fastening nut |
|||||
|
Fastening screws |
|||||

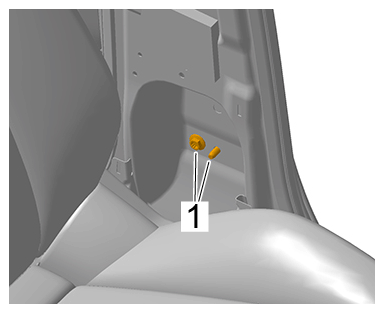

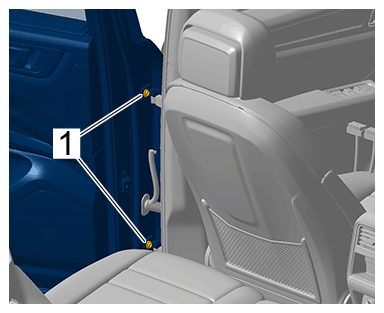

| Fastening screws securing door hinges to door | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Fastening screws for door hinge (door side) |
|||||
